Raptor SD (938670) - Cub Cadet Hustler 54" Zero-Turn Mower, Kawasaki Front Wheel Assembly Breakdown Parts Diagram

Hustler 54" Zero-Turn Mower, Kawasaki

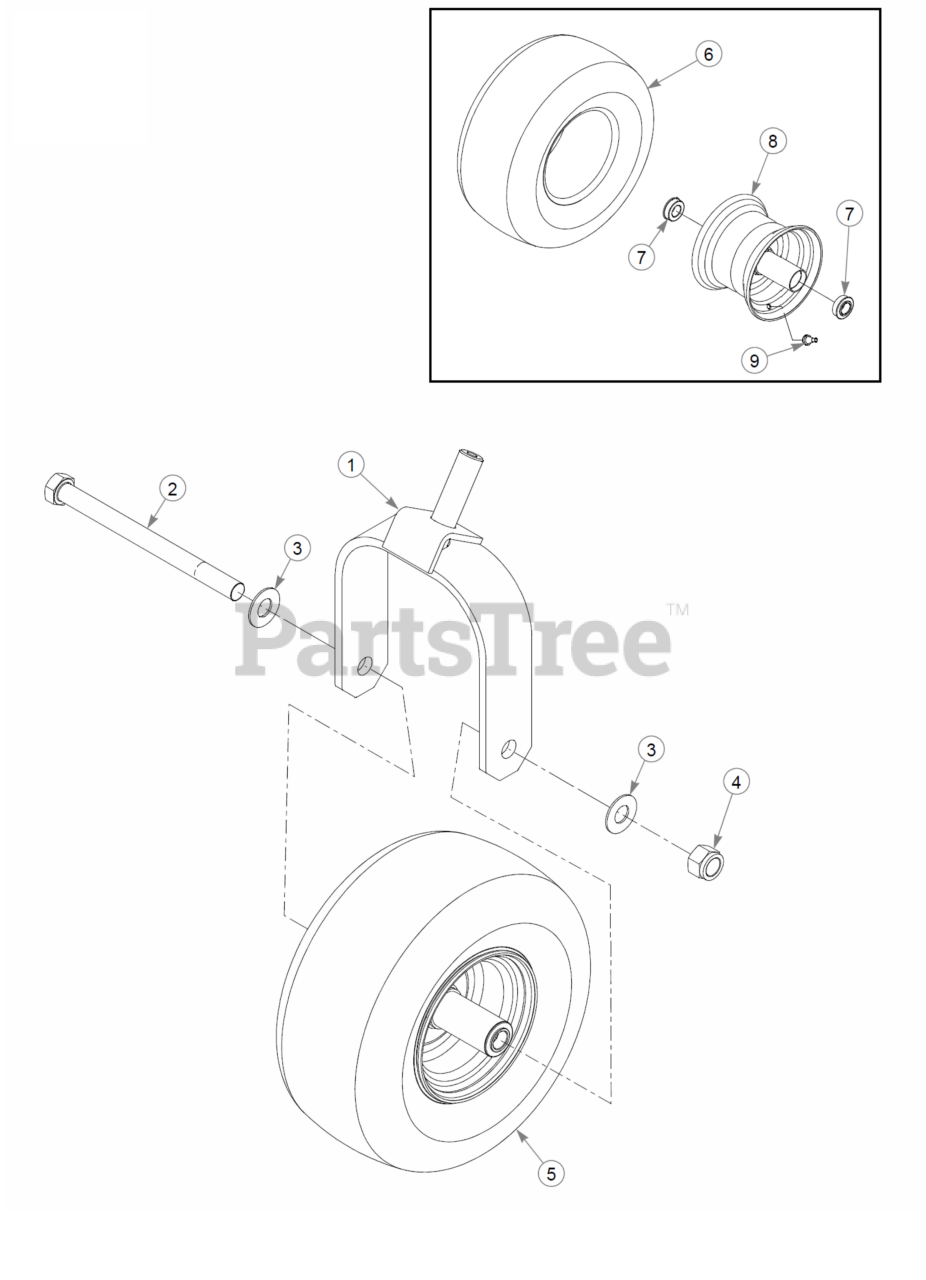

Front Wheel Assembly Breakdown Parts Diagram

  • Title
1

Cub Cadet 604691

FORK W/A

$

$

Currently unavailable

2

Cub Cadet 041475

WHL WHEELB

$

$

Not available

3

Cub Cadet 025296

FW .760X1.63X0.08 ZN

$

$

Currently unavailable

4

Cub Cadet 061101

NT .750-10 HX ZN NL GR B

$

$

Currently unavailable

5

Cub Cadet 604717

TIR/WHL 13X6.50-6 SLV

$

$

Currently unavailable

6

Cub Cadet 604843

TIR 13X6.50-6 B4R SMTH

Note: 1. 604843 is the smooth tire.

$

$

Currently unavailable

Cub Cadet 747741

TIR 13X6.50-6 B4R RIB

Note: 2. 747741 is the ribbed tire.

$

$

Currently unavailable

7

Cub Cadet 604845

BEARING, WHEEL SEALED

$

$

Currently unavailable

8

Cub Cadet 604844

WHL 6X4.50 SLV

$

$

Currently unavailable

9

Cub Cadet 019521

GUARD TOE

$

$

Not available
