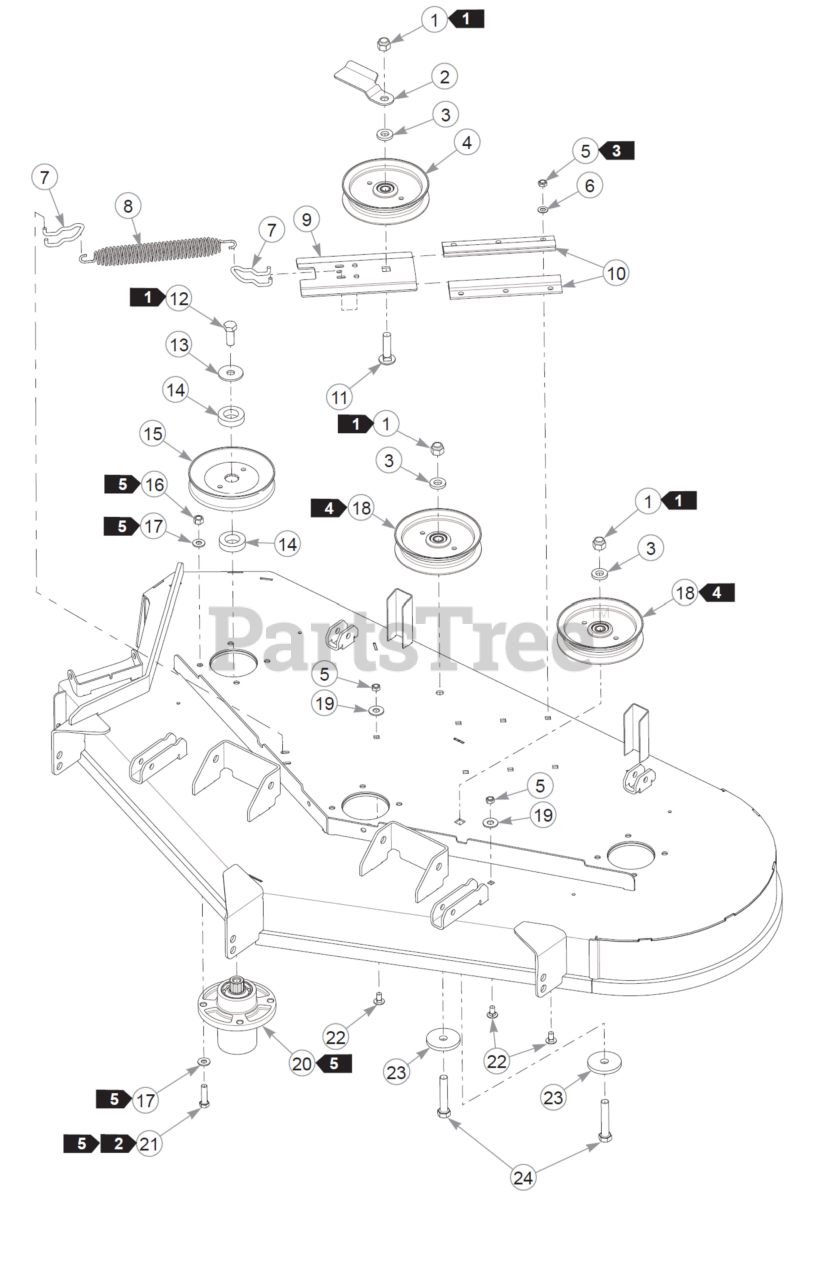

Raptor SD (938670) - Cub Cadet Hustler 54" Zero-Turn Mower, Kawasaki Deck Pulleys & Spindles - S/N Prior to 19102672 Parts Diagram

Hustler 54" Zero-Turn Mower, Kawasaki

Deck Pulleys & Spindles - S/N Prior to 19102672 Parts Diagram

  • Title

1

Cub Cadet 781567

NT .500-13NLG5

Note: 1. Torque to 73 ft-lbs.

$

$

Currently unavailable

2

Cub Cadet 121780

BELT GUIDE

$

$

Currently unavailable

3

Cub Cadet 767962

FW .531 x 1.063 x .175

$

$

Currently unavailable

4

Cub Cadet 604792

IDLER PULLEY, 5.00"

$

$

Currently unavailable

5

Cub Cadet 604251

NT .312-18 HXNL JAM G2ZN

Note: 3. Torque to 3-6 ft-lbs.

$

$

Currently unavailable

6

Cub Cadet 604252

BELT

$

$

Not available

7

Cub Cadet 604110

ANCHOR, SPRING TENSIONER

$

$

Currently unavailable

8

Cub Cadet 607616

SPRING, DECK IDLER

$

$

Currently unavailable

9

Cub Cadet 604791

SLED, IDLER

$

$

Currently unavailable

10

Cub Cadet 604790

IDLER SLIDE, EXTRUDED

$

$

Currently unavailable

11

Cub Cadet 604253

CB .50-13 X 2.00 STD ZN

$

$

Currently unavailable

12

Cub Cadet 705954

CS .500-13X1.25 HX G5 ZN

Note: 1. Torque to 73 ft-lbs.

$

$

Currently unavailable

13

Cub Cadet 798603

FW .515X1.65X.12 HD ZN

$

$

Currently unavailable

14

Cub Cadet 604661

SPACER, SPINDLE PULLEY

$

$

Currently unavailable

15

Cub Cadet 604664

PULLEY, DECK DRIVE B-SEC

$

$

Currently unavailable

16

Cub Cadet 054502

NT .375-16HXG5

Note: 5. 054502, 767954, & 005116 are used with Spindle 601804, which is no longer available.

$

$

Currently unavailable

17

Cub Cadet 767954

FW 0.379X.82X.06 HD ZN

Note: 5. 054502, 767954, & 005116 are used with Spindle 601804, which is no longer available.

$

$

Currently unavailable

18

Cub Cadet 126124

SVC KIT 604231 PULLEY

Note: 4. The idler pulley kit comes with the hardware included.

$

$

Currently unavailable

19

Cub Cadet 017129

FW .440X1.00X0.08 ZN

$

$

Currently unavailable

20

Cub Cadet 607418

BLADE SPINDLE ASSY

Note: 5. 054502, 767954, & 005116 are used with Spindle 601804, which is no longer available.

$

$

Currently unavailable

21

Cub Cadet 005116

CS .375-16X1.38 HX G5 ZN

Note: 2. Torque to 30 ft-lbs. 5. 054502, 767954, & 005116 are used with Spindle 601804, which is no longer available.

$

$

Currently unavailable

22

Cub Cadet 083147

CB .312-18X .620 G5 ZN

$

$

Currently unavailable

23

Cub Cadet 605516

FW .531 x 2.25 x .25 ZN

$

$

Currently unavailable

24

Cub Cadet 721910

CS .500-13X2.750HXG5

$

$

Currently unavailable
