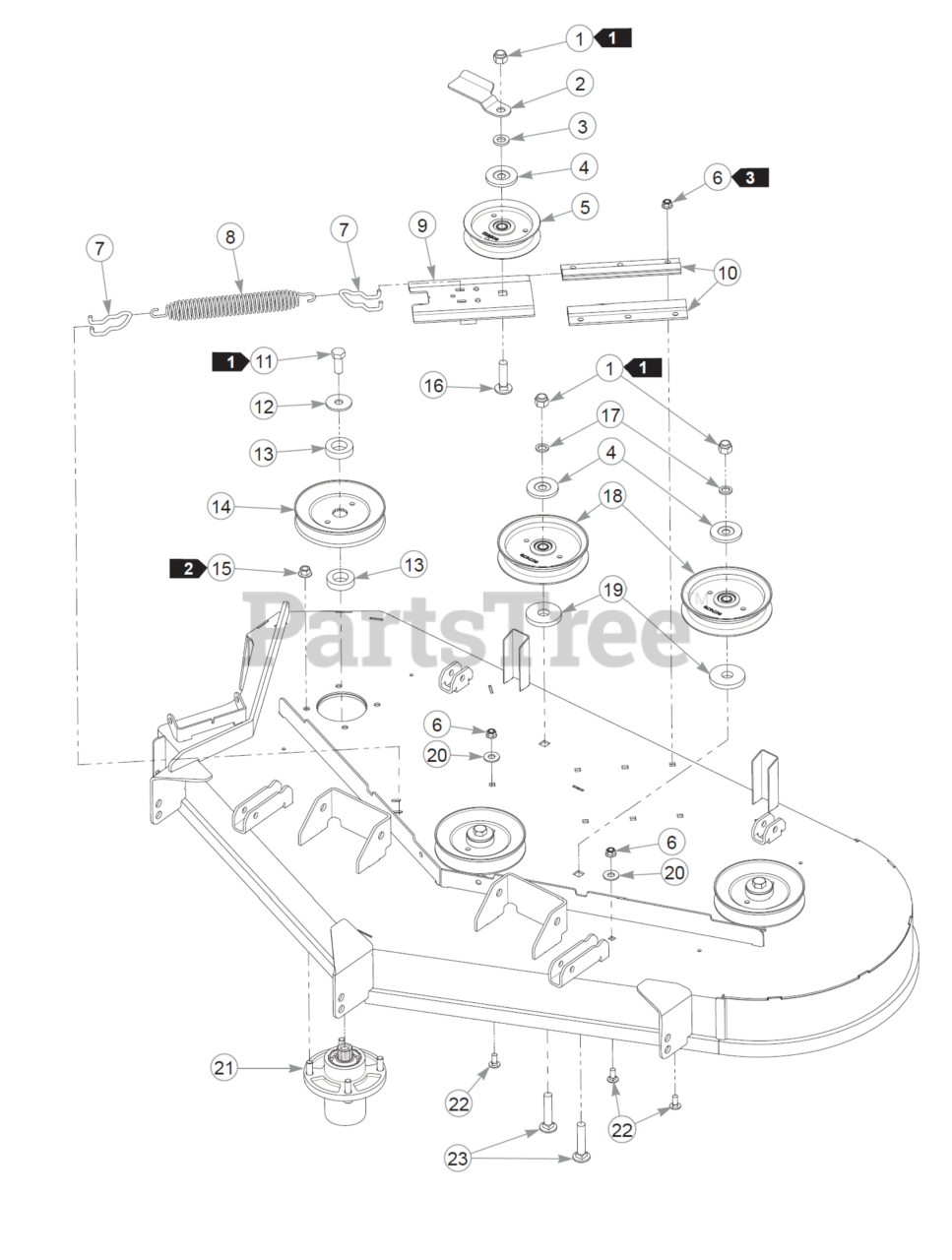

Raptor SD (938670) - Cub Cadet Hustler 54" Zero-Turn Mower, Kawasaki Deck Pulleys & Spindles - S/N 19102672 & Higher Parts Diagram

Hustler 54" Zero-Turn Mower, Kawasaki

Deck Pulleys & Spindles - S/N 19102672 & Higher Parts Diagram

  • Title
1

Cub Cadet 781567

NT .500-13NLG5

Note: 1. Torque to 73 ft-lbs.

$

$

Currently unavailable

2

Cub Cadet 121780

BELT GUIDE

$

$

Currently unavailable

3

Cub Cadet 607428

FW 0.531 X 0.90 X 0.134

$

$

Currently unavailable

4

Cub Cadet 605467

DUST SHIELD

$

$

Currently unavailable

5

Cub Cadet 605512

4" IDLER PULLEY

$

$

Currently unavailable

6

Cub Cadet 608059

NT 0.312-18 FL NY G5

Note: 3. Torque to 3-6 ft-lbs.

$

$

Currently unavailable

7

Cub Cadet 604110

ANCHOR, SPRING TENSIONER

$

$

Currently unavailable

8

Cub Cadet 607616

SPRING, DECK IDLER

$

$

Currently unavailable

9

Cub Cadet 607790-4

SLED, IDLER

$

$

Currently unavailable

10

Cub Cadet 604790

IDLER SLIDE, EXTRUDED

$

$

Currently unavailable

11

Cub Cadet 705954

CS .500-13X1.25 HX G5 ZN

Note: 1. Torque to 73 ft-lbs.

$

$

Currently unavailable

12

Cub Cadet 798603

FW .515X1.65X.12 HD ZN

$

$

Currently unavailable

13

Cub Cadet 604661

SPACER, SPINDLE PULLEY

$

$

Currently unavailable

14

Cub Cadet 604664

PULLEY, DECK DRIVE B-SEC

$

$

Currently unavailable

15

Cub Cadet 604515

NT .375-16 FL NY GF

Note: 2. Torque to 30 ft-lbs.

$

$

Currently unavailable

16

Cub Cadet 604253

CB .50-13 X 2.00 STD ZN

$

$

Currently unavailable

17

Cub Cadet 604486

FW .531X.812X.089 HD

$

$

Currently unavailable

18

Cub Cadet 607479

IDLER PULLEY, 5.00"

$

$

Currently unavailable

19

Cub Cadet 605508

FW .73X2.25X.31 ZN

$

$

Currently unavailable

20

Cub Cadet 017129

FW .440X1.00X0.08 ZN

$

$

Currently unavailable

21

Cub Cadet 607418

BLADE SPINDLE ASSY

$

$

Currently unavailable

22

Cub Cadet 016253

CB .312-18X .750 FUL ZN

$

$

Currently unavailable

23

Cub Cadet 604254

CB .50-13 X 2.50 STD ZN

$

$

Currently unavailable
