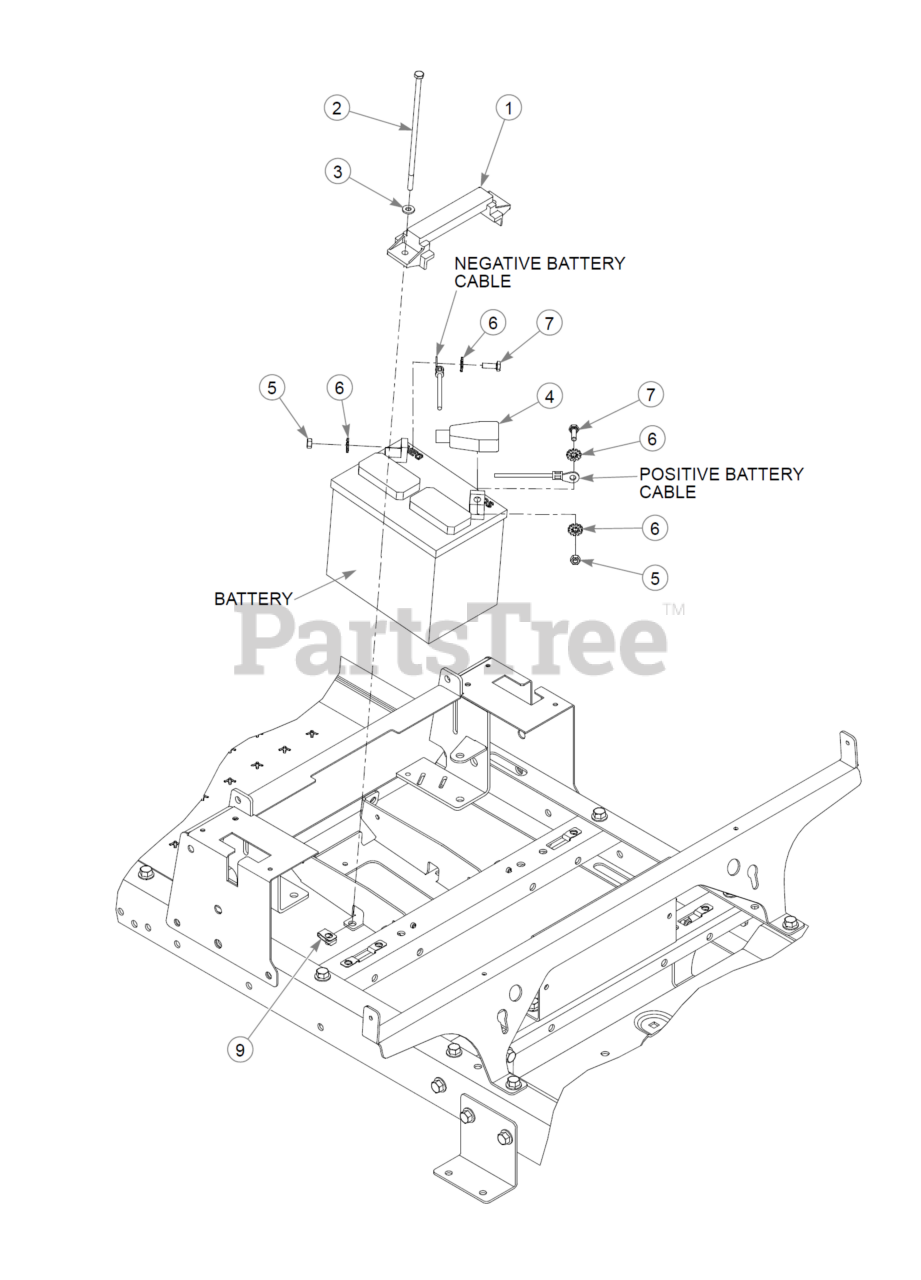

Raptor SD (938670) - Cub Cadet Hustler 54" Zero-Turn Mower, Kawasaki Battery Parts Diagram

Hustler 54" Zero-Turn Mower, Kawasaki

Battery Parts Diagram

  • Title
1

Cub Cadet 604178

STRAP, TIE DOWN

$

$

Currently unavailable

2

Cub Cadet 604465

CS .250-20X7.50 HX G5 ZN

$

$

Currently unavailable

3

Cub Cadet 768515

FW 0.281SAE

$

$

Currently unavailable

4

Cub Cadet 771428

BATTERY CBL BOOT-RED(FS)

$

$

Currently unavailable

5

Cub Cadet 024927

NT .250-20HXG5

$

$

Currently unavailable

6

Cub Cadet 029868

LW .250 INTEXT ZN

$

$

Currently unavailable

7

Cub Cadet 055939

CS .250-20X0.75 HX G5 ZN

$

$

Currently unavailable

8

Cub Cadet 000331

WIRE TIE, SMALL/SHORT

$

$

Currently unavailable

9

Cub Cadet 601982

CN .250-20X .150 MAX THK

$

$

Currently unavailable

1. When performing service on the mower, disconnect the negative battery cable and do not reconnect it to the battery until ready to start the engine

$

$
