Ram Ultra XS6025 (968999723) - Dixon 60" Ram Ultra Zero-Turn Mower, Kohler (2008) 60" DECK Parts Diagram

60" Ram Ultra Zero-Turn Mower, Kohler

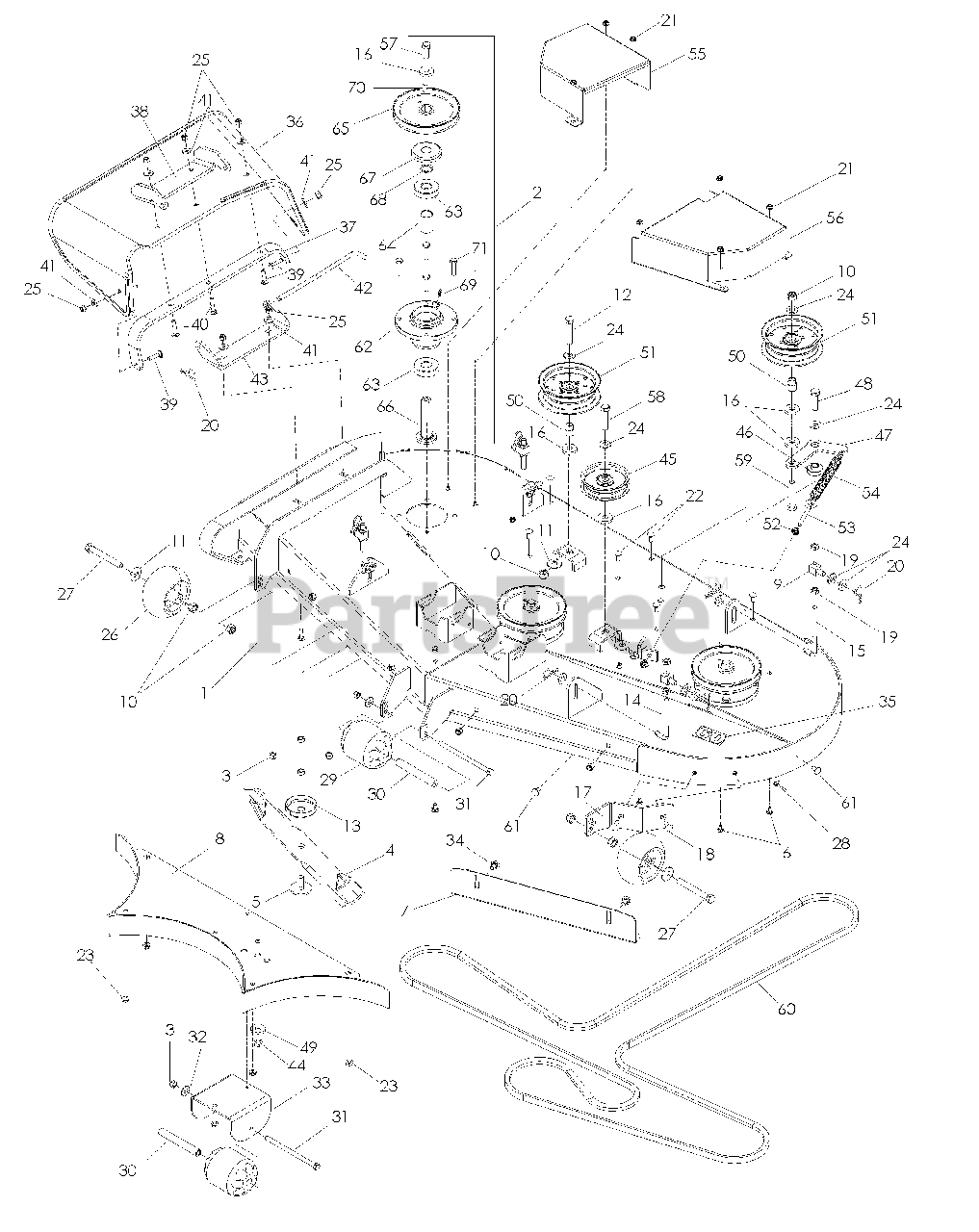

60" DECK Parts Diagram

  • Title

1

Dixon 539132848

DECK W/DECALS, 60" DIX

$708.99

$

Usually ships in 3-10 days

0

2

Dixon 539131196

SPINDLE ASSEMBLY

Note: (COMPLETE)

$

$

Not available

3

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

4

Dixon 539119839

BLD 60" HI LIFT FUSION

$42.99

$

Usually ships in 3-10 days

0

5

Dixon 539119637

BLADE BOLT

$

$

Not available

6

Dixon 539111777

RHSSNB 1/4-20 X 1/2

$3.99

$

Usually ships in 3-10 days

0

7

Dixon 539121903

BLOW BY BAFFLE

$

$

Not available

8

Dixon 539121428

60 W-BAFFLE WLDT.

$218.99

$

Usually ships in 3-10 days

0

9

Dixon 539114789

SWIVEL

$17.99

$

In Stock, only 2 left!

0

10

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

11

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available

12

Dixon 539115771

1/2-13X2-1/2 HHB GR5
(Superseded to 539101572)

$5.99

$

In Stock, Qty 9

0

13

Dixon 539119266

TRASH GUARD

$

$

Not available

14

Dixon 539114787

L BOLT, S

$

$

Not available

15

Dixon 539114788

L BOLT, L

$

$

Not available

16

Dixon 539115636

WASHER .525 X 1.375 X .25

$9.99

$

In Stock, only 1 left!

0

17

Dixon 539121432

BRACKET

$54.99

$

Usually ships in 3-10 days

0

18

Dixon 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, Qty 6

0

19

Dixon 539115527

7/16-14UNC HX JAMNUT

$3.99

$

Usually ships in 3-10 days

0

20

Dixon 539115501

PIN, COTTER 1 3/4

$3.99

$

Usually ships in 3-10 days

0

21

Dixon 539108735

NUT 1/4-20 HEX FLG LK ZD

$4.99

$

In Stock, only 2 left!

0

22

Dixon 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

23

Dixon 539115674

5/16-18 FLANGED L-NUT

$3.99

$

Usually ships in 3-10 days

0

24

Dixon 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

25

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

26

Dixon 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 18

0

27

Dixon 539118862

HHB, 1/2-13X4
(Superseded to 539108366)

$6.99

$

In Stock, Qty 17

0

28

Dixon 539115617

5/16-18 THIN PROF NY

$

$

Not available

29

Dixon 539122633

ROLLER 3-3/4 DIA. X 4-1

$

$

Not available

30

Dixon 539122574

BUSHING

$24.99

$

Usually ships in 3-10 days

0

31

Dixon 539122625

3/8-16 X 6-1/2 HHB GR8

$4.99

$

Usually ships in 3-10 days

0

32

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

33

Dixon 539114580

REAR CENTER ROLLER BKT 60 BLK

$40.99

$

Usually ships in 3-10 days

0

34

Dixon 539111785

RHSNB 3/8-16 X 3/4 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

35

Dixon 539130247

DECAL, 60"

$1.99

$

Usually ships in 3-10 days

0

36

Dixon 539130860

CHUTE, RUBBER DISCHARGE 60"

$

$

Not available

37

Dixon 539130914

BRKT REINF-CHUTE 60"

$97.99

$

Usually ships in 3-10 days

0

38

Dixon 539130927

PIVOT BRKT RUBBER CHUTE

$121.99

$

Usually ships in 3-10 days

0

39

Dixon 539100472

BOLT, CARRIAGE 5/16X1-1/4

$3.99

$

In Stock, Qty 20+

0

40

Dixon 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD

$

$

Not available

41

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

42

Dixon 539116225

DEFLECTOR PIN

$

$

Not available

43

Dixon 539130912

PIVOT BRACKET - DECK

$60.99

$

Usually ships in 3-10 days

0

44

Dixon 539115609

NUT, 1/2-13 THIN PROF NYL
(Superseded to 539108010)

$4.99

$

In Stock, only 3 left!

0

45

Dixon 539115278

PULLEY IDLER

$37.99

$

Usually ships in 3-10 days

0

46

Dixon 539118937

IDLER SPACER

$13.99

$

Usually ships in 3-10 days

0

47

Dixon 539122503

IDLER ARM

$

$

Not available

48

Dixon 539118963

1/2-13X1-3/4 HHB GR. 5

$

$

Not available

49

Dixon 539115550

WASHER-.533IDX1.37OD

$4.99

$

In Stock, only 2 left!

0

50

Dixon 539114343

SPACER - IDLER

$7.49

$

Usually ships in 3-10 days

0

51

Dixon 539132728

PULLEY, IDLER
(Superseded to 589766102)

$31.99

$

Usually ships in 3-10 days

0

52

Dixon 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

53

Dixon 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

54

Dixon 539120920

SPRING, DECK BELT

$

$

Not available

55

Dixon 539114653

PULLEY GUARD RH 60 PAINTED

Note: RH

$

$

Not available

56

Dixon 539114655

PULLEY GUARD LH 60 PAINTED

Note: LH

$103.99

$

Usually ships in 3-10 days

0

57

Dixon 539115511

1/2-20 UNF X 1 1/4 HHBLT

$4.99

$

Usually ships in 3-10 days

0

58

Dixon 539107706

HEX SCREW-.5C X 2.25

$3.99

$

Usually ships in 3-10 days

0

59

Dixon 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

60

Dixon 539132001

BELT, DECK

$

$

Not available

61

Dixon 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

62

Dixon 539119809

DECK HUB MACHINED

$

$

Not available

63

Dixon 539119260

BEARING - 6305 - 2RS

$

$

Not available

64

Dixon 539119261

SPACER

$14.99

$

Usually ships in 3-10 days

0

65

Dixon 539117926

PULLEY 6.45 METRIC

$103.99

$

Usually ships in 3-10 days

0

66

Dixon 539119807

SHAFT SHORT

$

$

Not available

67

Dixon 539119811

TRASH GUARD

$18.99

$

In Stock, only 1 left!

0

68

Dixon 539115326

HUB PULLEY SPACER

$

$

Not available

69

Dixon 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.99

$

In Stock, only 3 left!

0

70

Dixon 539116196

OUTER SHAFT KEY

$4.99

$

In Stock, only 1 left!

0

71

Dixon 539122818

HHB 3/8-16X1-1/2 GR5
(Superseded to 539990655)

$4.99

$

In Stock, only 2 left!

0
