Ram Ultra 72 (968999773) - Dixon 72" Ram Ultra Zero-Turn Mower (2009-01) MOWER DECK / CUTTING DECK Parts Diagram

72" Ram Ultra Zero-Turn Mower

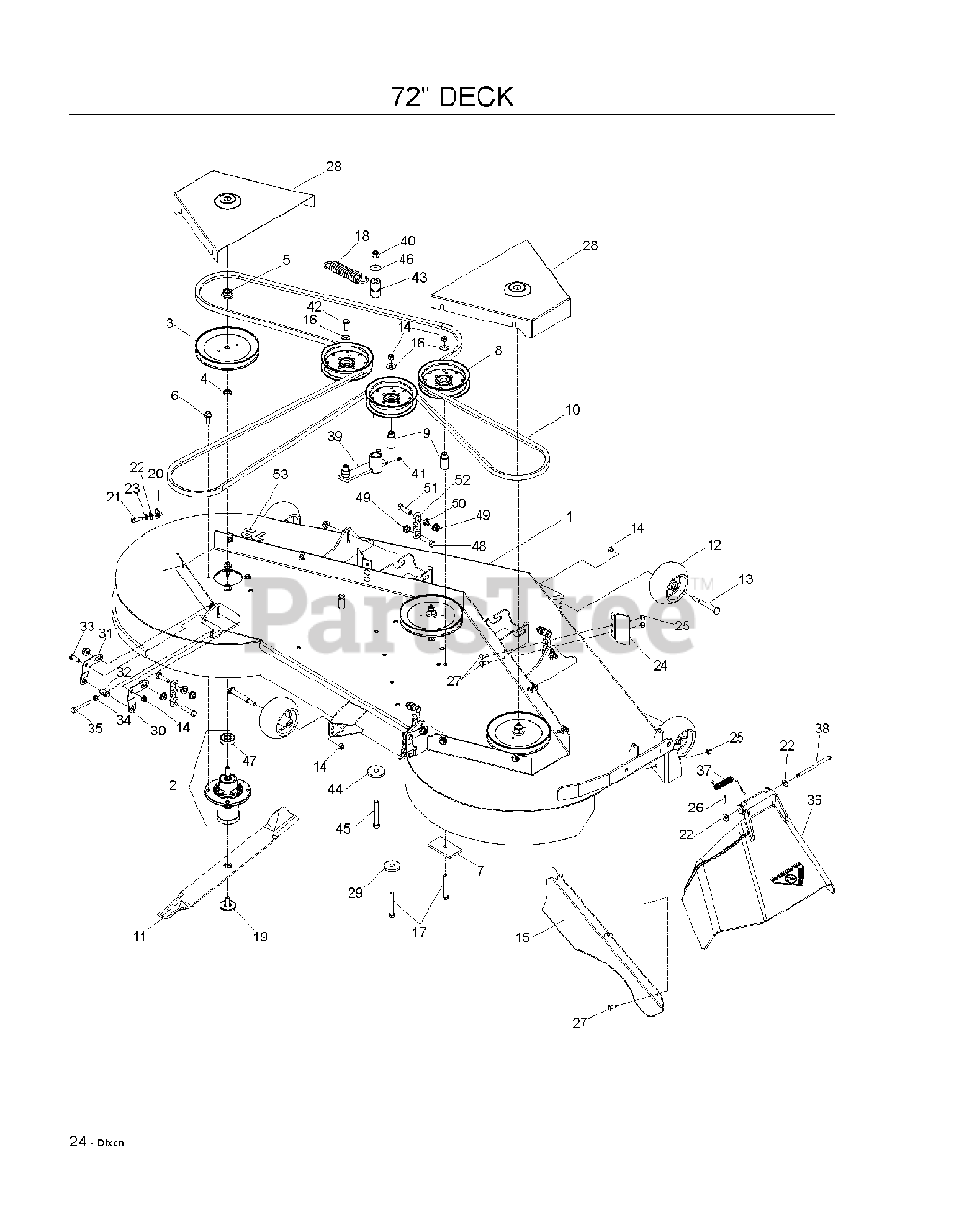

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Dixon 539132849

DECK W/DECALS, 72" DIX

$1578.99

$

Usually ships in 3-10 days

0

2

Dixon 539112170

MANDREL.DECK.ASSEMBLY

$79.99

$

In Stock, Qty 20+

0

3

Dixon 539131563

PULLEY

$44.99

$

Usually ships in 3-10 days

0

4

Dixon 539107520

WASHER-SPACER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

5

Dixon 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

6

Dixon 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

7

Dixon 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

8

Dixon 539132728

PULLEY, IDLER
(Superseded to 589766102)

$31.99

$

Usually ships in 3-10 days

0

9

Dixon 539112169

IDLER BUSHING

$

$

Not available

10

Dixon 539132003

BELT, DECK

$

$

Not available

11

Dixon 539131562

BLADE, 25"

$34.99

$

Usually ships in 3-10 days

0

12

Dixon 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 18

0

13

Dixon 539107608

SHOULDER BOLT 1/2X2-5/8 ZD SPE
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

14

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

15

Dixon 539131746

CONFINEMENT PLATE, 72"

$31.99

$

Usually ships in 3-10 days

0

16

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

17

Dixon 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 12

0

18

Dixon 539103256

SPRING

$12.99

$

In Stock, Qty 6

0

19

Dixon 539107522

BLADE BOLT ASSY-7/16" TB REPL
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

20

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

21

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

22

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

23

Dixon 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

24

Dixon 539112248

DECK STOP

$15.99

$

Usually ships in 3-10 days

0

25

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

26

Dixon 539990365

COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

27

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

28

Dixon 539131872

SHIELD, BELT - 72" BLUE

$

$

Not available

29

Dixon 539106504

SPINDLE WASHER

$

$

Not available

30

Dixon 539131857

PITCH, ADJUST, RT

Note: RT

$48.99

$

Usually ships in 3-10 days

0

31

Dixon 539131858

PITCH, ADJUST, LT

Note: LT

$48.99

$

In Stock, only 2 left!

0

32

Dixon 539131859

TRUNION, PITCH

$

$

Not available

33

Dixon 539990563

HCS 3/8C X 1

$1.99

$

Usually ships in 3-10 days

0

34

Dixon 539990196

NUT 5/16C HEX

$1.99

$

Usually ships in 3-10 days

0

35

Dixon 539108396

HCS 5/16-18 X 2 1/2 TPBLT

$

$

Not available

36

Dixon 539132730

DISCHARGE CHUTE - 72"

$42.99

$

Usually ships in 3-10 days

0

37

Dixon 539110735

SPRING - TORSION
(Superseded to 596646001)

$4.99

$

In Stock, only 3 left!

0

38

Dixon 539110736

PIN-CLEVIS 5/16 DIA X 5.19 ZD

$3.49

$

Usually ships in 3-10 days

0

39

Dixon 539112198

IDLER ARM

$121.99

$

In Stock, only 2 left!

0

40

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

41

Dixon 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

42

Dixon 539990582

HCS 3/8C X 1 SERRATED HEAD

$

$

Not available

43

Dixon 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 2 left!

0

44

Dixon 539102243

WASHER, SUPPORT

$

$

Not available

45

Dixon 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

46

Dixon 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

47

Dixon 539112050

BEARING, BALL

$7.49

$

In Stock, only 4 left!

0

48

Dixon 539108073

HCS 7/16 - 14 X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

49

Dixon 539132019

NUT 7/16-14 HEX WHIZ LK
(Superseded to 873900700)

$7.49

$

In Stock, Qty 13

0

50

Dixon 539102582

NUT 7/16C WHIZ

$

$

Not available

51

Dixon 539101175

HCS 7/16C X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

52

Dixon 539109693

LIFT CHAIN - 3 LINK

$6.49

$

Usually ships in 3-10 days

0

53

Dixon 539130248

DECAL, 72"

$

$

Not available
