Ram Ultra 72 (968999724) - Dixon 72" Ram Ultra Zero-Turn Mower (2009-01) SEAT Parts Diagram

72" Ram Ultra Zero-Turn Mower

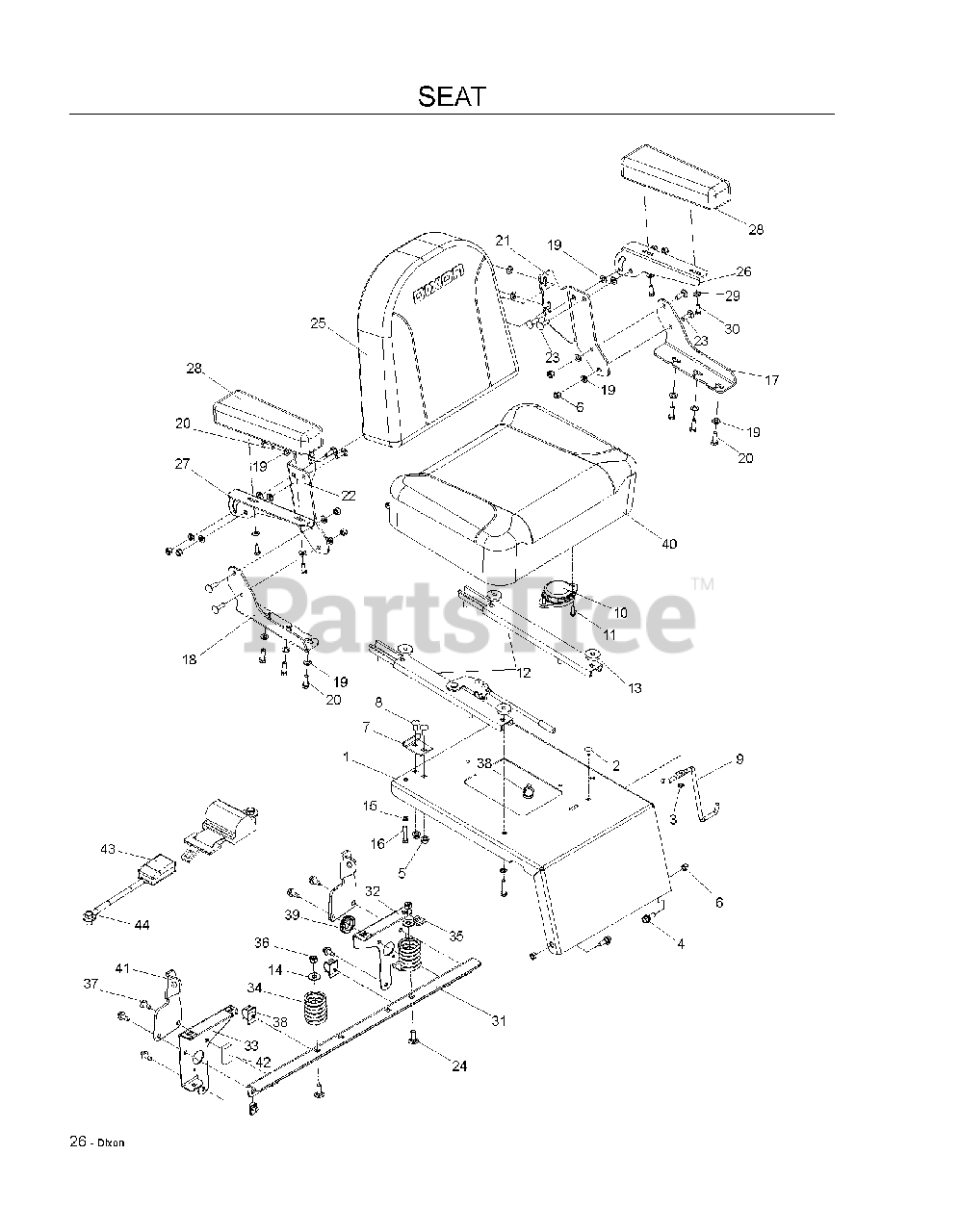

SEAT Parts Diagram

  • Title

1

Dixon 539132846

SEAT MOUNT, W/DECALS

$157.99

$

Usually ships in 3-10 days

0

2

Dixon 539990074

RHSNB 1/4C X 3/4
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

3

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

4

Dixon 539130896

SB 5/16-18 HEX HD GD5, BLK ZN

$17.99

$

Usually ships in 3-10 days

0

5

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

6

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

7

Dixon 539130793

STOP, SEAT - BLACK
(Superseded to 539130794)

$4.99

$

Usually ships in 3-10 days

0

8

Dixon 539109100

RHSNB 5/16-18 X 3/4

$4.99

$

Usually ships in 3-10 days

0

9

Dixon 539131899

STOP, SEAT, FORWQARD

$

$

Not available

10

Dixon 539117398

SEAT SWITCH MILSCO

$34.99

$

Usually ships in 3-10 days

0

11

Dixon 539108388

SCR 1/4-20X3/4 SLTD RDHD GR2ZD

$2.49

$

Usually ships in 3-10 days

0

12

Dixon 539128796

SEAT SLIDE (SET)

Note: SET

$46.99

$

Usually ships in 3-10 days

0

13

Dixon 539115789

WASHER NYLON

$3.99

$

Usually ships in 3-10 days

0

14

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

15

Dixon 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

16

Dixon 539115682

5/16-18X1-1/2 HHB GR5WNY

$4.99

$

Usually ships in 3-10 days

0

17

Dixon 539118627

SEAT BOTTOM BRKT LH

Note: LH

$72.99

$

Usually ships in 3-10 days

0

18

Dixon 539118628

SEAT BOTTOM BRKT RH

Note: RH

$78.99

$

Usually ships in 3-10 days

0

19

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

20

Dixon 539115566

5/16-18X1 HHB G5W/NY
(Superseded to 874950516)

$

$

Not available

21

Dixon 539118629

SEAT BACK BRKT LH

Note: LH

$35.99

$

Usually ships in 3-10 days

0

22

Dixon 539118630

SEAT BACK BRKT RH

Note: RH

$35.99

$

Usually ships in 3-10 days

0

23

Dixon 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

24

Dixon 539990645

RHSNB 3/8C X 1

$

$

Not available

25

Dixon 539122380

SEAT BACK

$

$

Not available

26

Dixon 539121713

ARM REST BRACKET LH

Note: LH

$

$

Not available

27

Dixon 539121714

ARM REST BRACKET RH

Note: RH

$

$

Not available

28

Dixon 539121719

ARMREST

$

$

Not available

29

Dixon 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

30

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

31

Dixon 539131656

SUPPORT, SEAT

$125.99

$

Usually ships in 3-10 days

0

32

Dixon 539131778

SUPPORT, LT

$17.99

$

Usually ships in 3-10 days

0

33

Dixon 539131779

SUPPORT, RT

$17.99

$

Usually ships in 3-10 days

0

34

Dixon 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.99

$

In Stock, only 3 left!

0

35

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

36

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

37

Dixon 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

38

Dixon 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0

39

Dixon 539105974

RUBBER GROMMET

$

$

Not available

40

Dixon 539122381

SEAT BOTTOM

$

$

Not available

41

Dixon 521963402

MOUNT, SEAT BELT, BLK

$21.99

$

Usually ships in 3-10 days

0

42

Dixon 539093610

WEATHERSTRIPPING, 1/2 X 1

$

$

Not available

43

Dixon 539130359

SEAT BELT - RETRACTABLE
(Superseded to 596322701)

$136.99

$

In Stock, only 1 left!

0

44

Dixon TBD

TBD

$

$

Not available

Dixon 539122379

SEAT ASM W/SLIDE
(Superseded to 501580402)

Note: NOT SHOWN

$797.99

$

Usually ships in 3-10 days

0
