Ram Ultra 72 (968999724) - Dixon 72" Ram Ultra Zero-Turn Mower (2009-01) MOWER LIFT / DECK LIFT Parts Diagram

72" Ram Ultra Zero-Turn Mower

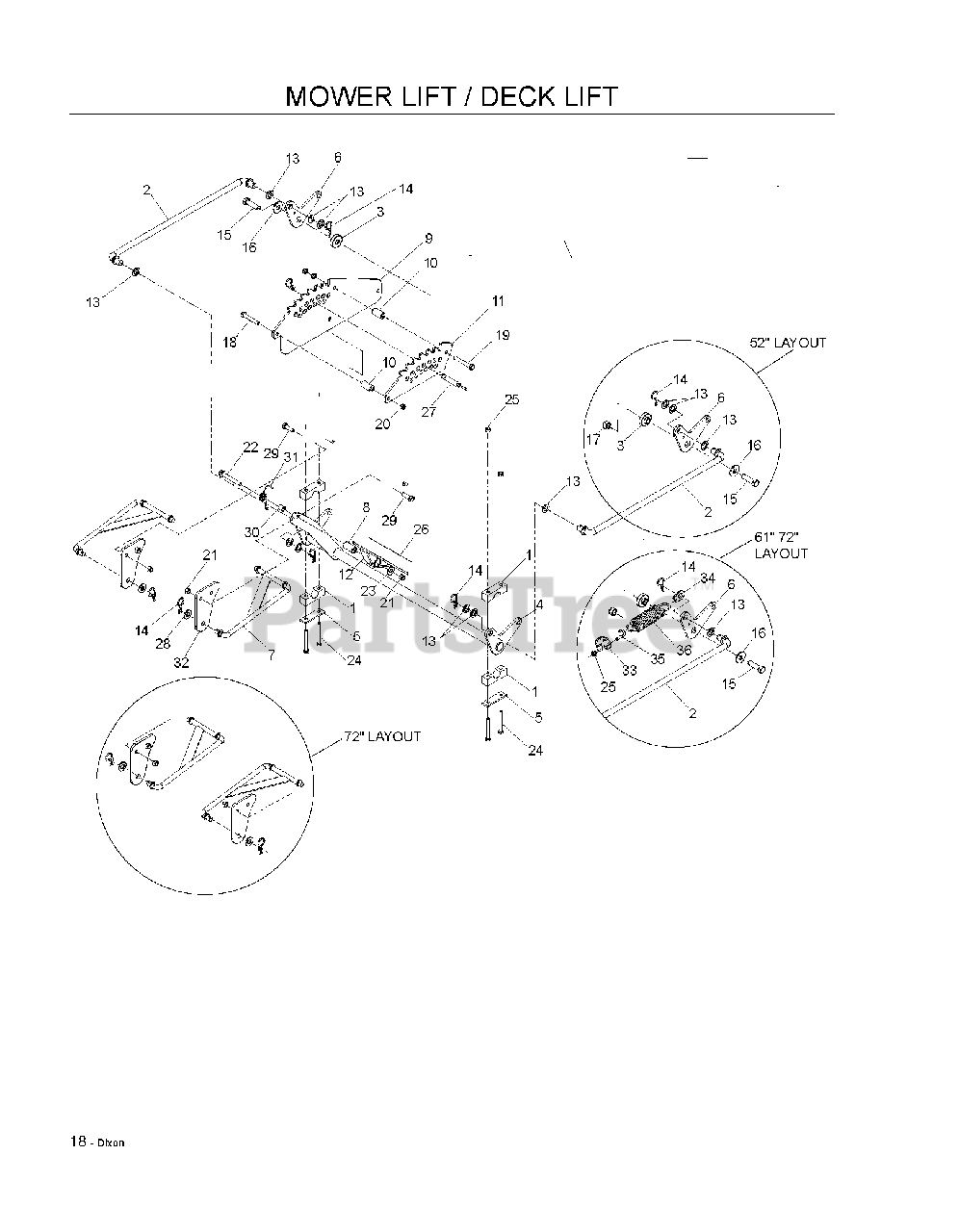

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

1

Dixon 539104808

PILLOW BLOCK

$9.49

$

Usually ships in 3-10 days

0

2

Dixon 539110808

CROSS LINK

$27.99

$

Usually ships in 3-10 days

0

3

Dixon 539118937

IDLER SPACER

$13.99

$

Usually ships in 3-10 days

0

4

Dixon 539131866

SHAFT, LIFT, DECK

$145.99

$

Usually ships in 3-10 days

0

5

Dixon 539104807

REINFORCEMENT BAR
(Superseded to 584392702)

$13.99

$

In Stock, only 4 left!

0

6

Dixon 539132378

BELLCRANK, REAR LIFT

$62.99

$

Usually ships in 3-10 days

0

7

Dixon 539112223

STRUT LINKAGE

$37.99

$

In Stock, Qty 5

0

8

Dixon 539101836

BUSHING, SLEEVE

$3.99

$

Usually ships in 3-10 days

0

9

Dixon 539133004

PLATE, HEIGHT, MAIN, BLUE

$96.99

$

Usually ships in 3-10 days

0

10

Dixon 539104530

DECK LIFT SPACER

$7.49

$

Usually ships in 3-10 days

0

11

Dixon 539132899

PLATE, HEIGHT, BLUE

$

$

Not available

12

Dixon 539114280

PEDAL, FOOT, WELDMENT

$66.99

$

Usually ships in 3-10 days

0

13

Dixon 539991043

BUSHING

Note: 61 72

$3.99

$

Usually ships in 3-10 days

0

14

Dixon 539115501

PIN, COTTER 1 3/4

$3.99

$

Usually ships in 3-10 days

0

15

Dixon 539108181

HCS 1/2-13 X 1 3/4 GR 8

$4.99

$

Usually ships in 3-10 days

0

16

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available

17

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

18

Dixon 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

19

Dixon 539990637

HCS 3/8C X 2 1/2
(Superseded to 596434201)

$4.99

$

In Stock, only 2 left!

0

20

Dixon 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

21

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

22

Dixon 539131781

HHFS 3/8-16 X 2 3/4

$5.99

$

In Stock, only 2 left!

0

23

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

24

Dixon 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 7

0

25

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

Note: 61 72

$6.99

$

In Stock, Qty 20+

0

26

Dixon 539121322

FOOT PAD

$4.99

$

Usually ships in 3-10 days

0

27

Dixon 539102526

HITCH PIN

$21.99

$

Usually ships in 3-10 days

0

28

Dixon 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

29

Dixon 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

30

Dixon 539132852

SPACER

$6.49

$

Usually ships in 3-10 days

0

31

Dixon 539132850

SPRING, TORSION

$12.99

$

Usually ships in 3-10 days

0

32

Dixon 539132018

MOUNT, STRUT

Note: 72

$8.99

$

Usually ships in 3-10 days

0

33

Dixon 539131791

MOUNT, SPRING

$12.99

$

Usually ships in 3-10 days

0

34

Dixon 539131792

TAB, SPRING

$56.99

$

Usually ships in 3-10 days

0

35

Dixon 539112896

J-BOLT

$

$

Not available

36

Dixon 539102642

SPRING

$31.99

$

In Stock, only 1 left!

0

Dixon 539105059

LANYARD

Note: NOT SHOWN

$10.99

$

In Stock, only 1 left!

0
