Ram Ultra 61 (966985401) - Dixon 61" Ram Ultra Zero-Turn Mower (2009-01) HYDRAULIC PUMP MOTOR Parts Diagram

61" Ram Ultra Zero-Turn Mower

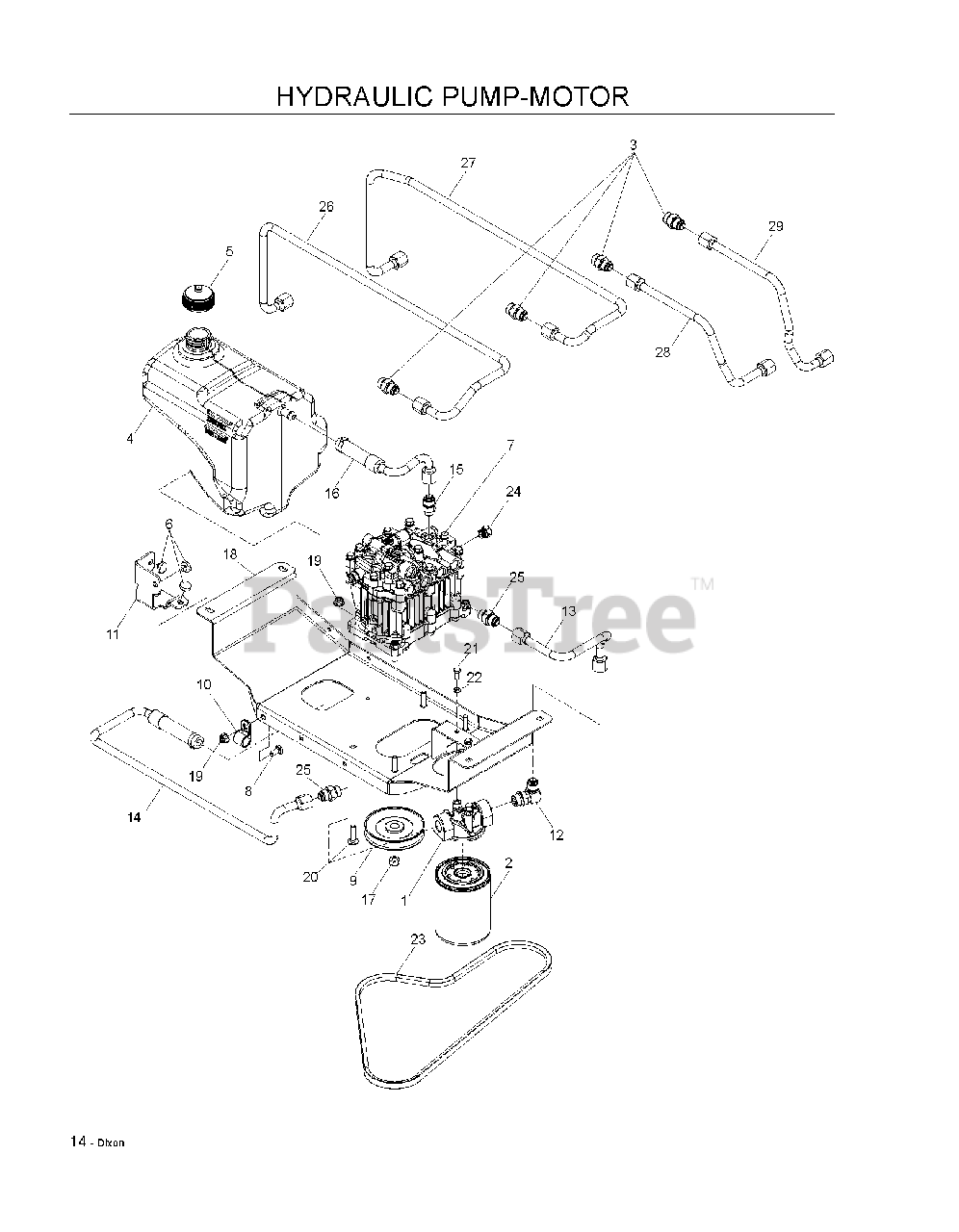

HYDRAULIC PUMP MOTOR Parts Diagram

  • Title

1

Dixon 539105892

FILTER HEAD

$

$

Not available

2

Dixon 539105893

HYDRAULIC OIL FILTER

$37.99

$

In Stock, only 1 left!

0

3

Dixon 539101237

FITTING, STRAIGHT F6400-8-8-0

$12.99

$

In Stock, only 2 left!

0

4

Dixon 539131663

RESERVOIR HYDRO

$267.99

$

Usually ships in 3-10 days

0

5

Dixon 539101202

HYDRAULIC CAP

$24.99

$

In Stock, only 1 left!

0

6

Dixon 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

7

Dixon 539131657

PUMP, DUP10S (77808041201)

$2184.99

$

Usually ships in 3-10 days

0

8

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

9

Dixon 539131727

PULLEY, PUMP

$

$

Not available

10

Dixon 539102685

LOOM CLIP

$4.99

$

Usually ships in 3-10 days

0

11

Dixon 539132417

SUPPORT, RESERVOIR

$31.99

$

Usually ships in 3-10 days

0

12

Dixon 539132888

FITTING, 10-8 90 DEG

$27.99

$

Usually ships in 3-10 days

0

13

Dixon 539132887

HYD LINE, CHARGE

$30.99

$

Usually ships in 3-10 days

0

14

Dixon 539132886

HYD LINE, INLET

$

$

Not available

15

Dixon 539131748

FITTING, HYDRO

$7.99

$

Usually ships in 3-10 days

0

16

Dixon 539131529

HYDRO LINE, CASE

$

$

Not available

17

Dixon 539131528

NUT M10-1.5 L/H HEX

$3.99

$

Usually ships in 3-10 days

0

18

Dixon 539131773

PLATE, PUMP

$113.99

$

Usually ships in 3-10 days

0

19

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

20

Dixon 539100472

BOLT, CARRIAGE 5/16X1-1/4

$3.99

$

In Stock, Qty 20+

0

21

Dixon 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 1 left!

0

22

Dixon 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

23

Dixon 539111445

IZT BELT

$34.99

$

Usually ships in 3-10 days

0

24

Dixon 539131895

PLUG, 6408-6

$3.99

$

Usually ships in 3-10 days

0

25

Dixon 539132889

FITTING, 10-8 STRAIGHT

$11.99

$

Usually ships in 3-10 days

0

26

Dixon 539131531

HYDRO LINE, A

Note: 966985301 966985401 966985302 966985402

$54.99

$

Usually ships in 3-10 days

0

27

Dixon 539131532

HYDRO LINE, B

Note: 966985301 966985401 966985302 966985402

$

$

Not available

28

Dixon 539131533

HYDRO LINE, C

Note: 966985301 966985401 966985302 966985402

$34.99

$

Usually ships in 3-10 days

0

29

Dixon 539131534

HYDRO LINE, D

Note: 966985301 966985401 966985302 966985402

$34.99

$

Usually ships in 3-10 days

0

Dixon 539133028

SEAL KIT, DUP10S (7808010620)

Note: NOT SHOWN

$242.99

$

Usually ships in 3-10 days

0

Dixon 539133029

SEAL, INPUT, DUP10S

Note: NOT SHOWN

$

$

Not available
