Ram Mag 50 (968999651) - Dixon 50" Ram Mag Zero-Turn Mower, Kohler (2008) 50 INCH CUTTING DECK Parts Diagram

50" Ram Mag Zero-Turn Mower, Kohler

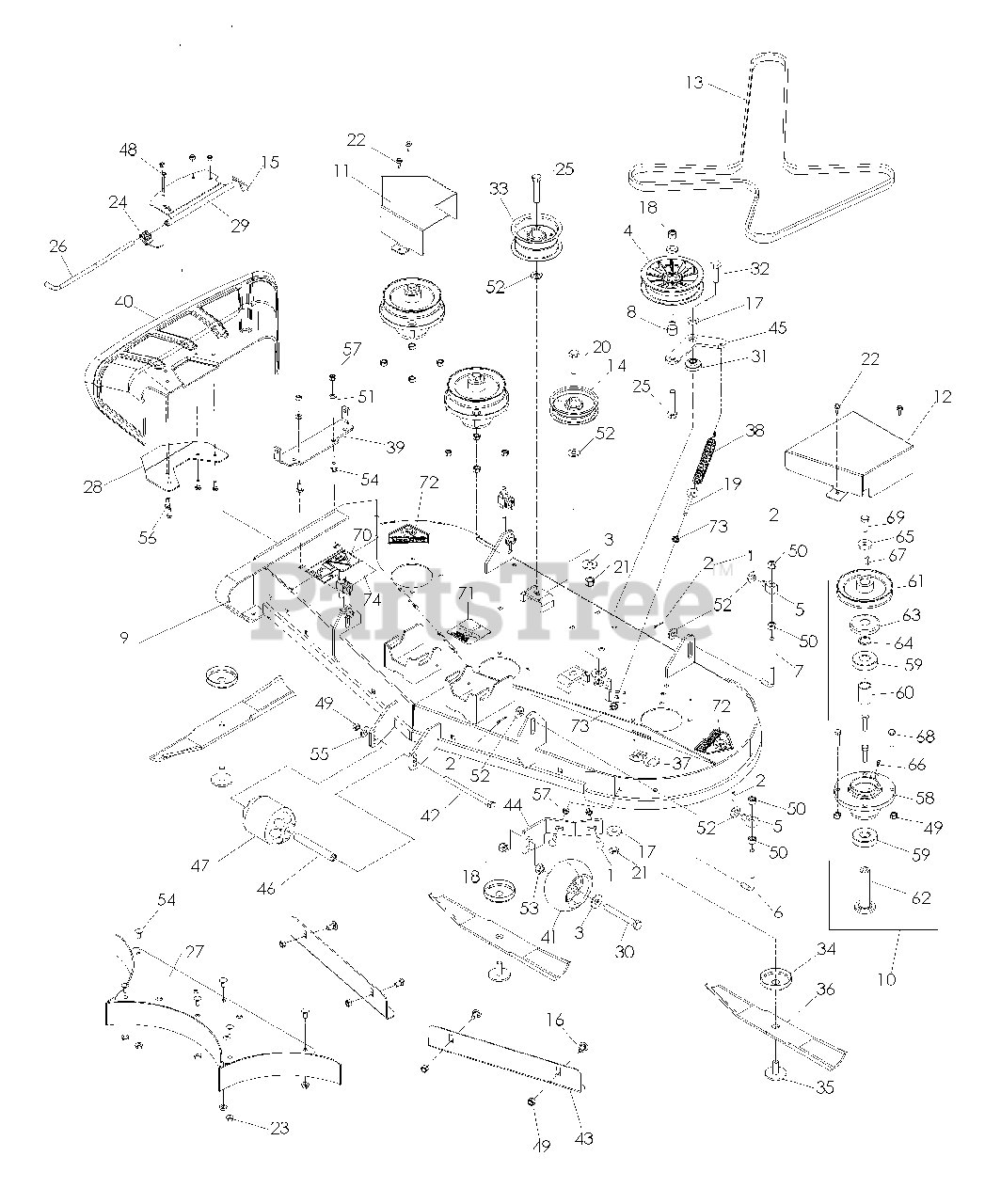

50 INCH CUTTING DECK Parts Diagram

  • Title

1

Dixon 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, Qty 6

0

2

Dixon 539990365

COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

3

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available

4

Dixon 539132728

PULLEY, IDLER
(Superseded to 589766102)

$31.99

$

Usually ships in 3-10 days

0

5

Dixon 539114789

SWIVEL

$17.99

$

In Stock, only 2 left!

0

6

Dixon 539114787

L BOLT, S

$

$

Not available

7

Dixon 539114788

L BOLT, L

$

$

Not available

8

Dixon 539114343

SPACER - IDLER

$7.49

$

Usually ships in 3-10 days

0

9

Dixon 539114643

DECK W/DECAL 50" RAM

$2306.99

$

Usually ships in 3-10 days

0

10

Dixon 539114452

SPINDLE, LH 6305 BRG

$

$

Not available

11

Dixon 539114501

PULLEY GUARD RH BLACK

Note: RIGHT

$

$

Not available

12

Dixon 539114502

PULLEY GUARD LH

Note: LEFT

$

$

Not available

13

Dixon 539114508

V-BELT 170" B

$

$

Not available

14

Dixon 539115278

PULLEY IDLER

$37.99

$

Usually ships in 3-10 days

0

15

Dixon 539115501

PIN, COTTER 1 3/4

$3.99

$

Usually ships in 3-10 days

0

16

Dixon 539111785

RHSNB 3/8-16 X 3/4 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

17

Dixon 539115550

WASHER-.533IDX1.37OD

$4.99

$

In Stock, only 2 left!

0

18

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

19

Dixon 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

20

Dixon 539115584

BOLT 1/2-13 X 2 HH

$

$

Not available

21

Dixon 539115609

NUT, 1/2-13 THIN PROF NYL
(Superseded to 539108010)

$4.99

$

In Stock, only 3 left!

0

22

Dixon 539115643

SCREW, TAP & DR #12-14 X 3/4

$10.99

$

In Stock, only 2 left!

0

23

Dixon 539115674

5/16-18 FLANGED L-NUT

$3.99

$

Usually ships in 3-10 days

0

24

Dixon 539130509

SPRING, TORSION

$24.99

$

Usually ships in 3-10 days

0

25

Dixon 539115771

1/2-13X2-1/2 HHB GR5
(Superseded to 539101572)

$5.99

$

In Stock, Qty 9

0

26

Dixon 539116225

DEFLECTOR PIN

$

$

Not available

27

Dixon 539116431

W-BAFFLE WLDT.

$145.99

$

Usually ships in 3-10 days

0

28

Dixon 539117261

DEFLECTOR BRACKET

$34.99

$

Usually ships in 3-10 days

0

29

Dixon 539117262

DEFLECTOR MT BRKT
(Superseded to 539119443)

$103.99

$

Usually ships in 3-10 days

0

30

Dixon 539108366

HCS 1/2-13 X 4 GR 5 ZD

$6.99

$

In Stock, Qty 17

0

31

Dixon 539118937

IDLER SPACER

$13.99

$

Usually ships in 3-10 days

0

32

Dixon 539118963

1/2-13X1-3/4 HHB GR. 5

$

$

Not available

33

Dixon 539119006

IDLER PULLEY

$

$

Not available

34

Dixon 539119266

TRASH GUARD

$

$

Not available

35

Dixon 539119637

BLADE BOLT

$

$

Not available

36

Dixon 539119837

BLD 50`HI LIFT FUSION

$40.99

$

In Stock, only 1 left!

0

37

Dixon 539119895

DECAL, DECK 50"

$7.49

$

Usually ships in 3-10 days

0

38

Dixon 539120920

SPRING, DECK BELT

$

$

Not available

39

Dixon 539121357

HINGE

$

$

Not available

40

Dixon 539121378

44 DEFLECTOR

$

$

Not available

41

Dixon 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 18

0

42

Dixon 539121478

BOLT 3/8 X 6 GR5

$4.99

$

Usually ships in 3-10 days

0

43

Dixon 539121604

BLOW-BY BAFFLE

$66.99

$

Usually ships in 3-10 days

0

44

Dixon 539122494

BRACKET

$

$

Not available

45

Dixon 539122503

IDLER ARM

$

$

Not available

46

Dixon 539122574

BUSHING

$24.99

$

Usually ships in 3-10 days

0

47

Dixon 539122633

ROLLER 3-3/4 DIA. X 4-1

$

$

Not available

48

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

49

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

50

Dixon 539990449

NUT 7/16C HEX

$3.99

$

Usually ships in 3-10 days

0

51

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

52

Dixon 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

53

Dixon 539990258

NUT HEX 1/2

$4.99

$

In Stock, Qty 14

0

54

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

55

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

56

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

57

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

58

Dixon 539119809

DECK HUB MACHINED

$

$

Not available

59

Dixon 539119260

BEARING - 6305 - 2RS

$

$

Not available

60

Dixon 539119261

SPACER

$14.99

$

Usually ships in 3-10 days

0

61

Dixon 539117925

METRIC PULLEY

$

$

Not available

62

Dixon 539119807

SHAFT SHORT

$

$

Not available

63

Dixon 539119811

TRASH GUARD

$18.99

$

In Stock, only 1 left!

0

64

Dixon 539115326

HUB PULLEY SPACER

$

$

Not available

65

Dixon 539115636

WASHER .525 X 1.375 X .25

$9.99

$

In Stock, only 1 left!

0

66

Dixon 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.99

$

In Stock, only 3 left!

0

67

Dixon 539116196

OUTER SHAFT KEY

$4.99

$

In Stock, only 1 left!

0

68

Dixon 539122818

HHB 3/8-16X1-1/2 GR5
(Superseded to 539990655)

$4.99

$

In Stock, only 2 left!

0

69

Dixon 539115511

1/2-20 UNF X 1 1/4 HHBLT

$4.99

$

Usually ships in 3-10 days

0

70

Dixon 539105746

DECAL, EURO SEVERING

$3.99

$

In Stock, only 3 left!

0

71

Dixon 539122249

DECAL, BELT ROUTING (18656)

$4.99

$

Usually ships in 3-10 days

0

72

Dixon 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

73

Dixon 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

74

Dixon 539115717

DECAL, DANGER

$10.99

$

Usually ships in 3-10 days

0
