Ram Mag 50 (968999561) - Dixon 50" Ram Mag Zero-Turn Mower, 21hp Kawasaki (2007) CONTROL LEVERS & PARK BRAKE Parts Diagram

50" Ram Mag Zero-Turn Mower, 21hp Kawasaki

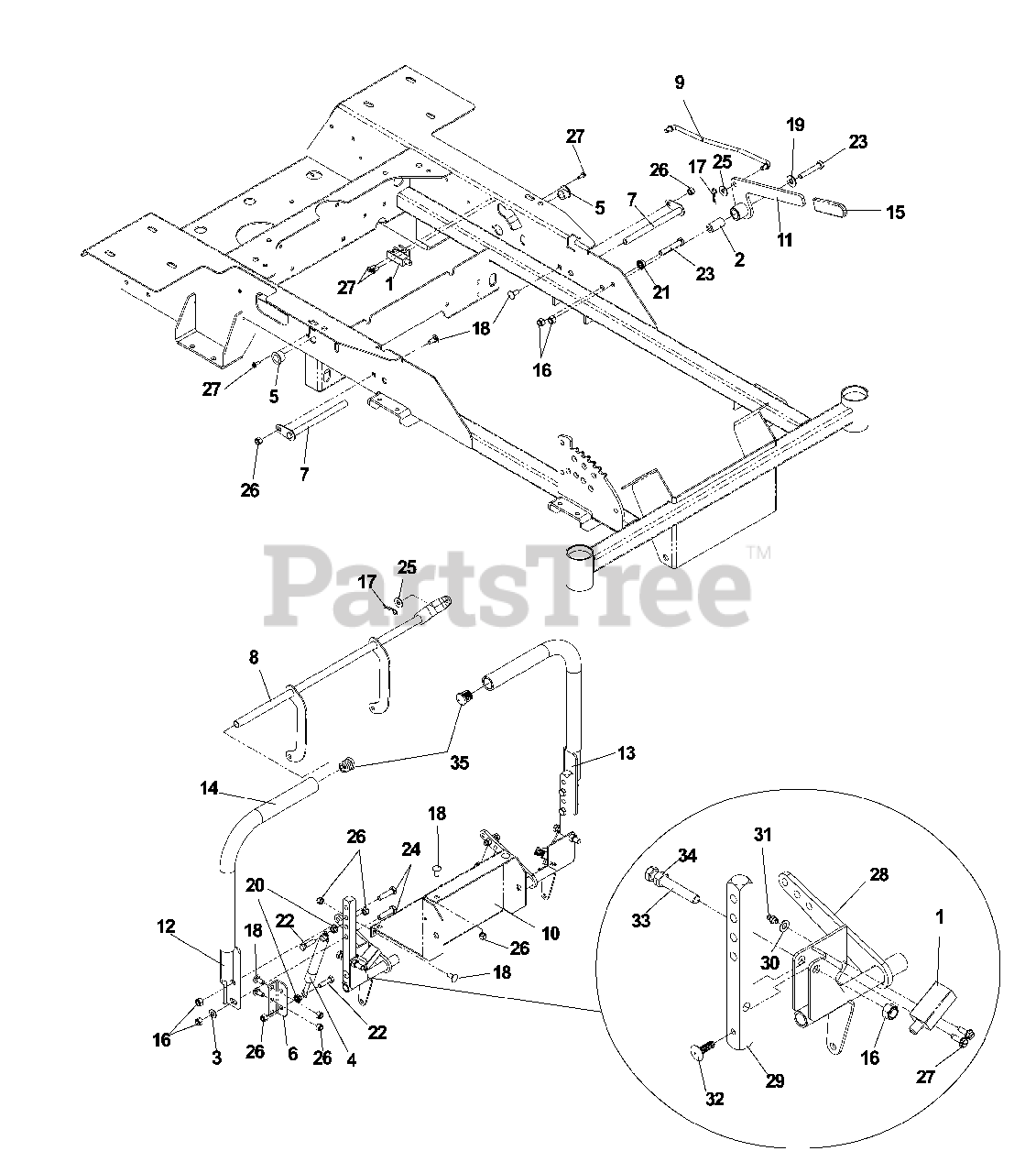

CONTROL LEVERS & PARK BRAKE Parts Diagram

  • Title

1

Dixon 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

2

Dixon 539101836

BUSHING, SLEEVE

$3.99

$

Usually ships in 3-10 days

0

3

Dixon 539102593

WASHER, 3/8 DISC SPRING SPEC

$3.99

$

In Stock, only 4 left!

0

4

Dixon 539102720

DAMPENER

$66.99

$

In Stock, only 3 left!

0

5

Dixon 539109368

PLASTIC BUSHING

$4.99

$

Usually ships in 3-10 days

0

6

Dixon 539112300

DAMPENER BRACKET

$40.99

$

Usually ships in 3-10 days

0

7

Dixon 539112306

PIVOT SHAFT

$24.99

$

Usually ships in 3-10 days

0

8

Dixon 539112313

BRAKE SHAFT

$122.99

$

Usually ships in 3-10 days

0

9

Dixon 539112314

BRAKE LINKAGE

$9.49

$

Usually ships in 3-10 days

0

10

Dixon 539112408

BATTERY TRAY

$33.99

$

Usually ships in 3-10 days

0

11

Dixon 539114259

BRAKE LEVER WELDMENT

$

$

Not available

12

Dixon 539114291

LEVER, DRIVE, RT

$157.99

$

Usually ships in 3-10 days

0

13

Dixon 539114292

LEVER, DRIVE, LT

$194.99

$

Usually ships in 3-10 days

0

14

Dixon 539121152

GRIP

$

$

Not available

15

Dixon 539976526

GRIP

$3.99

$

In Stock, only 3 left!

0

16

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

17

Dixon 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

18

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

19

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

20

Dixon 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

21

Dixon 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

22

Dixon 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

23

Dixon 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

24

Dixon 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

25

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

26

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

27

Dixon 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

28

Dixon 539112095

CONTROL WELDMENT, RIGHT

$607.99

$

Usually ships in 3-10 days

0

Dixon 539112096

CONTROL WELDMENT, LEFT

Note: (NOT SHOWN)

$728.99

$

Usually ships in 3-10 days

0

29

Dixon 539112088

CONTROL ARM

$

$

Not available

30

Dixon 539103547

WASHER

$0.99

$

In Stock, only 2 left!

0

31

Dixon 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

32

Dixon 539113107

RIVET, NYLON PUSH-IN

$4.99

$

Usually ships in 3-10 days

0

33

Dixon 539110122

HCS 3/8-16 X 2-1/2 TPBLT

$3.99

$

In Stock, only 1 left!

0

34

Dixon 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

35

Dixon 539122636

END PLUG 15/16` (BLACK)

$6.49

$

In Stock, only 2 left!

0
