Ram Mag 44 (968999560) - Dixon 44" Ram Mag Zero-Turn Mower, 20hp Kohler (2007) SEAT ASSEMBLY Parts Diagram

44" Ram Mag Zero-Turn Mower, 20hp Kohler

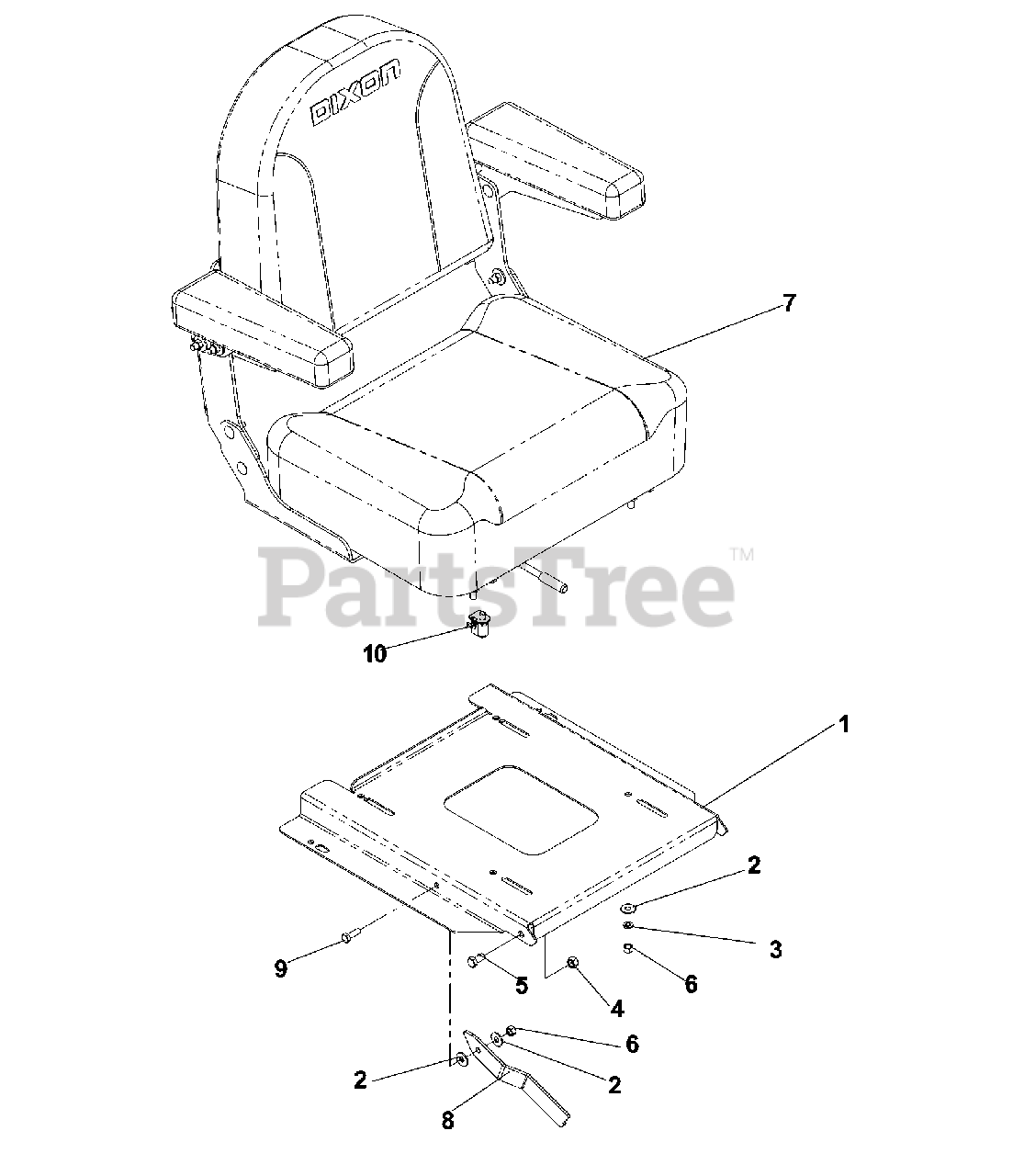

SEAT ASSEMBLY Parts Diagram

  • Title

1

Dixon 539114286

PAN, SEAT

$97.99

$

Usually ships in 3-10 days

0

2

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

3

Dixon 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

4

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

5

Dixon 539990134

SCREW 3/8C X 3/4 HEX CAP

$4.99

$

Usually ships in 3-10 days

0

6

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

7

Dixon 539122379

SEAT ASM W/SLIDE
(Superseded to 501580402)

$797.99

$

Usually ships in 3-10 days

0

8

Dixon 539114631

ARM, PROP, SEAT

$12.99

$

Usually ships in 3-10 days

0

9

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

10

Dixon 539107523

SEAT SWITCH

$10.99

$

In Stock, Qty 6

0

Dixon 539128796

SEAT SLIDE (SET)

Note: (NOT SHOWN)

$46.99

$

Usually ships in 3-10 days

0
