Ram 61 KZ (965883001) - Dixon 61" Ram Zero-Turn Mower (2008-12) MOWER DECK / CUTTING DECK Parts Diagram

61" Ram Zero-Turn Mower

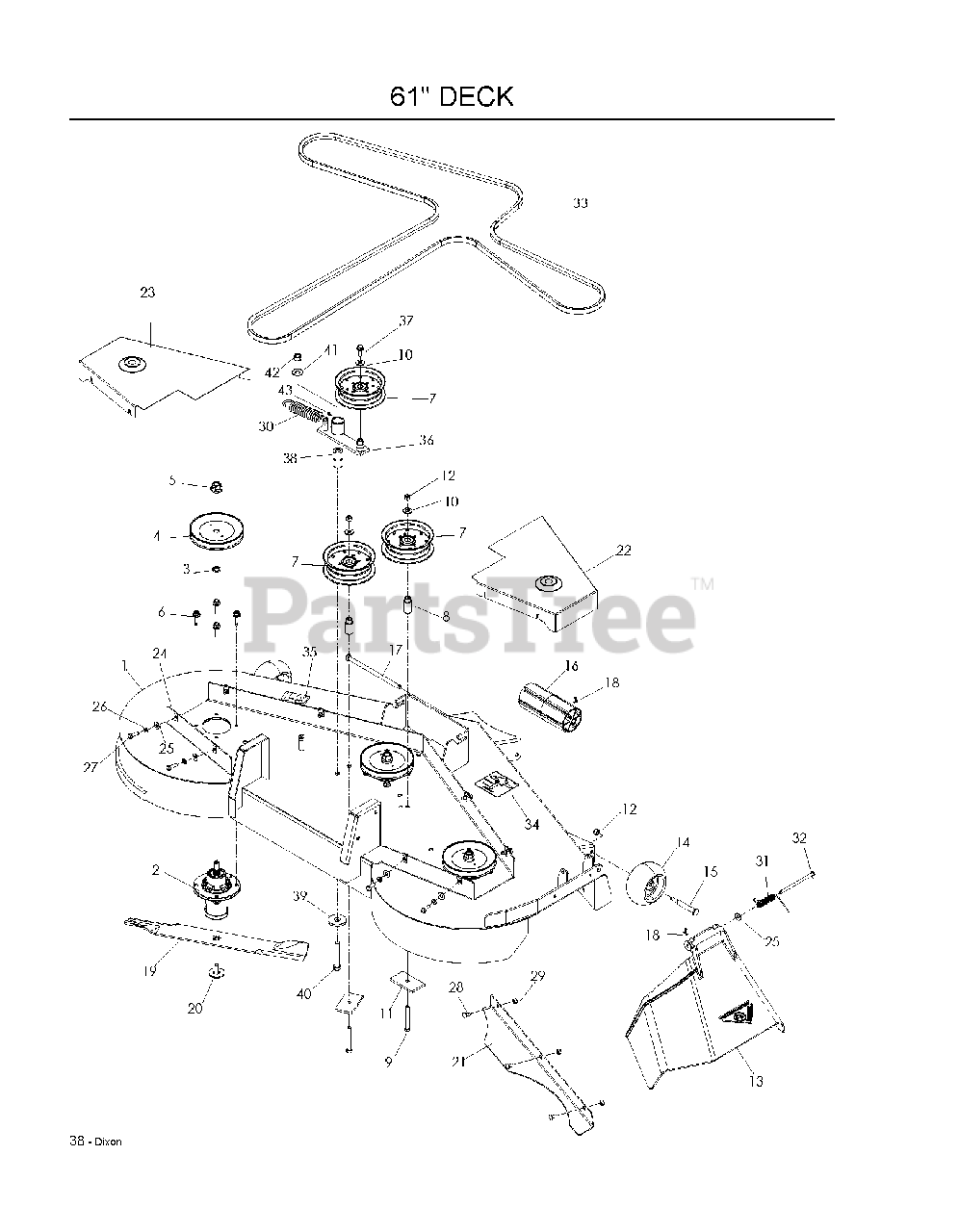

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Dixon 522745901

DECK W/DECALS - RAM 61

$2306.99

$

Usually ships in 3-10 days

0

2

Dixon 539112170

MANDREL.DECK.ASSEMBLY

$79.99

$

In Stock, Qty 20+

0

3

Dixon 539107520

WASHER-SPACER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

4

Dixon 539113300

PULLEY

$26.99

$

In Stock, only 4 left!

0

5

Dixon 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

6

Dixon 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

7

Dixon 539132728

PULLEY, IDLER
(Superseded to 589766102)

$31.99

$

In Stock, Qty 11

0

8

Dixon 539112169

IDLER BUSHING

$

$

Not available

9

Dixon 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 12

0

10

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

11

Dixon 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

12

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

13

Dixon 539110734

DISCHARGE CHUTE 61"

$53.99

$

In Stock, only 2 left!

0

14

Dixon 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 10

0

15

Dixon 539107608

SHOULDER BOLT 1/2X2-5/8 ZD SPE
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

16

Dixon 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 13

0

17

Dixon 539107613

NOSE ROLLER ROD
(Superseded to 594092501)

$6.99

$

In Stock, Qty 19

0

18

Dixon 539990365

COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

19

Dixon 539113312

BLADE, 21"

$30.99

$

In Stock, Qty 17

0

20

Dixon 539107522

BLADE BOLT ASSY-7/16" TB REPL
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

21

Dixon 539113317

CONFINEMENT PLATE 61

$66.99

$

In Stock, only 1 left!

0

22

Dixon 510260101

SHIELD, BELT 61 BLUE RH

Note: RIGHT

$

$

Not available

23

512260201

Note: LEFT

$

$

Not available

24

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

25

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

26

Dixon 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

27

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

28

Dixon 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

29

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

30

Dixon 539103256

SPRING

$12.99

$

In Stock, Qty 5

0

31

Dixon 539110735

SPRING - TORSION
(Superseded to 596646001)

$4.99

$

In Stock, only 2 left!

0

32

Dixon 539110736

PIN-CLEVIS 5/16 DIA X 5.19 ZD

$3.49

$

Usually ships in 3-10 days

0

33

Dixon 539113343

BELT, DECK - ESTATE

$133.99

$

In Stock, only 1 left!

0

34

Dixon 539112620

DECAL, BELT ROUTING

$7.49

$

In Stock, only 4 left!

0

35

Dixon 521933201

DECAL, 61

$

$

Not available

36

Dixon 539112198

IDLER ARM

$121.99

$

In Stock, only 3 left!

0

37

Dixon 539990582

HCS 3/8C X 1 SERRATED HEAD

$

$

Not available

38

Dixon 539103427

PIVOT BUSHING

$9.49

$

In Stock, Qty 8

0

39

Dixon 539102243

WASHER, SUPPORT

$

$

Not available

40

Dixon 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

41

Dixon 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

42

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

43

Dixon 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0
