Ram 52 ZT (966038601) - Dixon 52" Ram Zero-Turn Mower (2009-10) ENGINE PLATE Parts Diagram

52" Ram Zero-Turn Mower

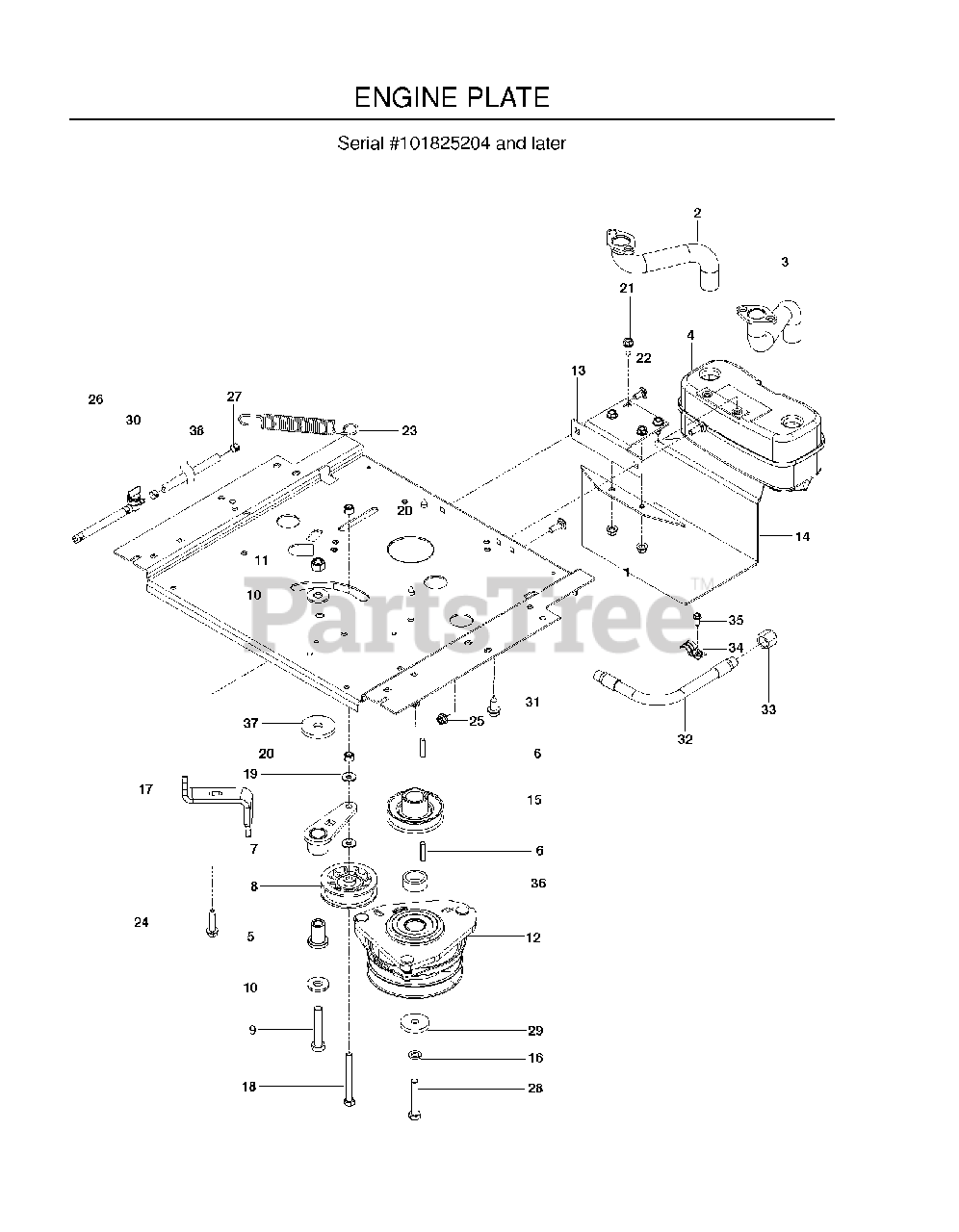

ENGINE PLATE Parts Diagram

  • Title

1

Dixon 574734402

PLATE, ENGINE WIDE, BLACK

$

$

Not available

2

Dixon 532146699

RP.PIPE-EXHAUST LH
(Superseded to 583954501)

$22.99

$

In Stock, only 1 left!

0

3

Dixon 532146700

RP.PIPE-EXHAUST RH
(Superseded to 583954801)

$20.99

$

In Stock, only 1 left!

0

4

Dixon 539131604

MUFFLER ASM TWIN

$45.99

$

Usually ships in 3-10 days

0

5

Dixon 522432501

PIVOT, IDLER

$

$

Not available

6

Dixon 539912757

KEY, 1/4 SQ X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

7

Dixon 539112092

IDLER ARM WELDMENT
(Superseded to 583593901)

$13.99

$

In Stock, only 4 left!

0

8

Dixon 539110311

PULLEY, IDLER

$17.99

$

In Stock, Qty 20+

0

9

Dixon 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

10

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available

11

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

12

Dixon 532179335

CLUTCH ELECTRIC

$341.99

$

Usually ships in 3-10 days

0

13

Dixon 510260402

BRACKET, MUFFLER, BLACK
(Superseded to 581886702)

$34.99

$

In Stock, only 1 left!

0

14

Dixon 510260502

GUARD, MUFFLER, BLACK

$91.99

$

In Stock, only 1 left!

0

15

Dixon 525435001

PULLEY, C'SHAFT, 3.57 OP

$

$

Not available

16

Dixon 539990247

WASHER 7/16 LOCK

$

$

Not available

17

Dixon 522459708

STOP, CLUTCH, BLK

$

$

Not available

18

Dixon 539109389

HCS 3/8-16X3 1/2 GR5

$5.99

$

In Stock, only 3 left!

0

19

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

20

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

21

Dixon 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

22

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

23

Dixon 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 8

0

24

Dixon 539110025

BOLT 3/8-16 X 1 1/2 ZINC CLEAR

$4.99

$

Usually ships in 3-10 days

0

25

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

26

Dixon 539115736

HOSE 1/4 X 8

$6.99

$

Usually ships in 3-10 days

0

27

Dixon 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

28

Dixon 539991120

BOLT 7/16F X 2 1/2

$6.99

$

In Stock, Qty 8

0

29

Dixon 539106504

SPINDLE WASHER

$

$

Not available

30

Dixon 539916325

FUEL VALVE

$47.99

$

In Stock, only 1 left!

0

31

Dixon 532120616

HHFS 3/8-16 X 1.0 THD FORMING
(Superseded to 817120616)

$5.99

$

In Stock, Qty 17

0

32

Dixon 539101362

OIL DRAIN HOSE

$47.99

$

Usually ships in 3-10 days

0

33

Dixon 539101364

DRAIN CAP

$7.49

$

Usually ships in 3-10 days

0

34

Dixon 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

35

Dixon 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

36

Dixon 576747401

SPACER, CLUTCH, 0.600

$

$

Not available

37

Dixon 539112670

HEAVY WASHER

$4.99

$

In Stock, Qty 10

0

38

Dixon 539107765

HOSE, FUEL .25 ID X 26"

$7.99

$

In Stock, only 2 left!

0

Dixon 532198316

PIGTAIL.MATNLK.OLD.HARN

Note: NOT SHOWN

$10.99

$

In Stock, only 1 left!

0
