Ram 50 ZT (965882701) - Dixon 50" Ram Zero-Turn Mower (2008-12) SEAT Parts Diagram

50" Ram Zero-Turn Mower

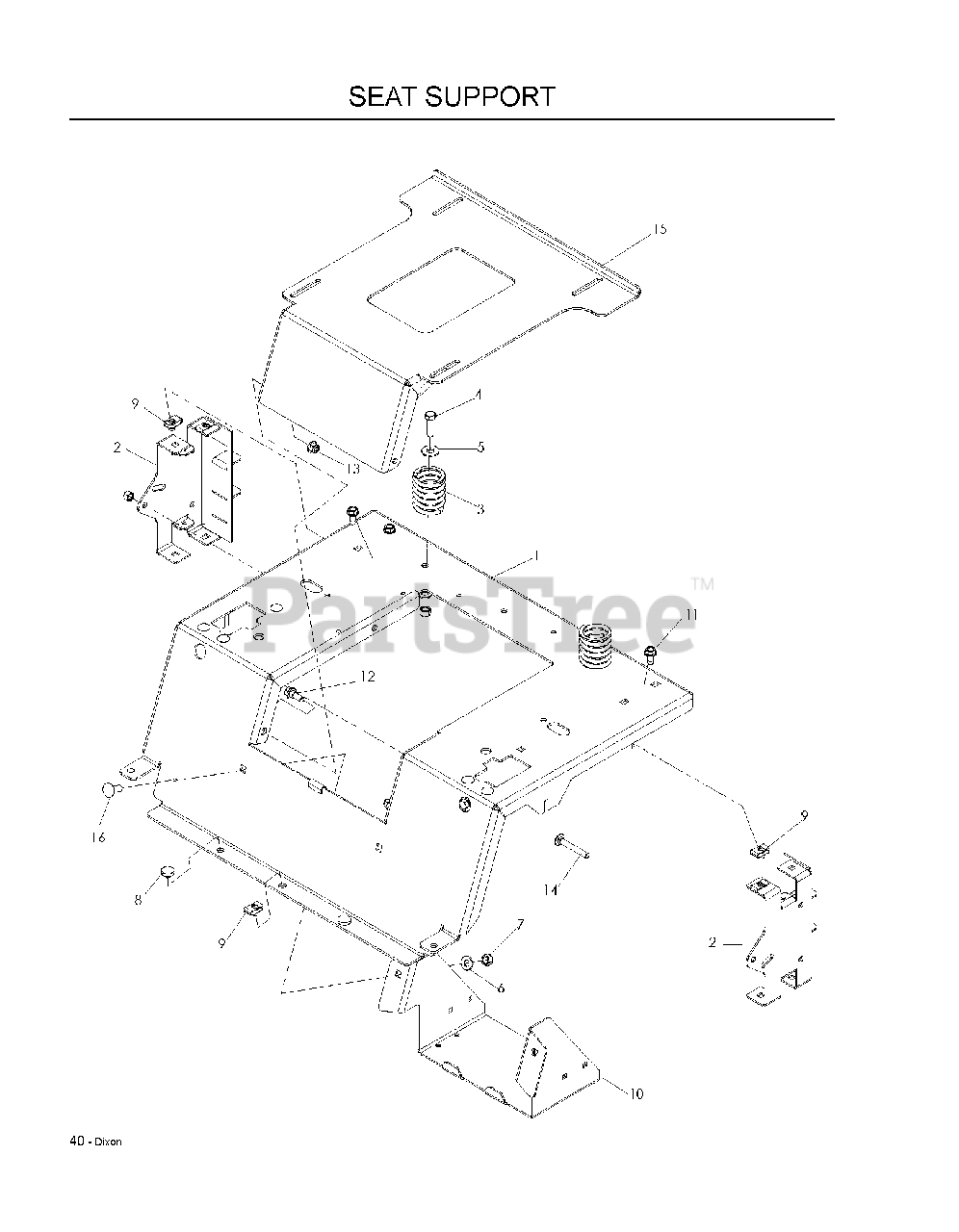

SEAT Parts Diagram

  • Title

1

Dixon 521949002

SUPPORT, SEAT, BLUE

$264.99

$

Usually ships in 3-10 days

0

2

Dixon 510182902

SUPPORT, REAR SEAT, BLACK

$66.99

$

Usually ships in 3-10 days

0

3

Dixon 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.99

$

In Stock, only 3 left!

0

4

Dixon 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 1 left!

0

5

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

6

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

7

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

8

Dixon 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

9

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

10

Dixon 510231302

BOX, BATTERY, BLACK

$182.99

$

Usually ships in 3-10 days

0

11

Dixon 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

12

Dixon 539130896

SB 5/16-18 HEX HD GD5, BLK ZN

$17.99

$

Usually ships in 3-10 days

0

13

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

14

Dixon 510422701

RHSNB 5/16-18 X 2-1/2 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

15

Dixon 522756804

PAN, SEAT, BLUE
(Superseded to 525811504)

$122.99

$

Usually ships in 3-10 days

0

16

Dixon 539990645

RHSNB 3/8C X 1

$

$

Not available
