Ram 50 KZ (965882801) - Dixon 50" Ram Zero-Turn Mower (2008-12) WHEELS & TIRES Parts Diagram

50" Ram Zero-Turn Mower

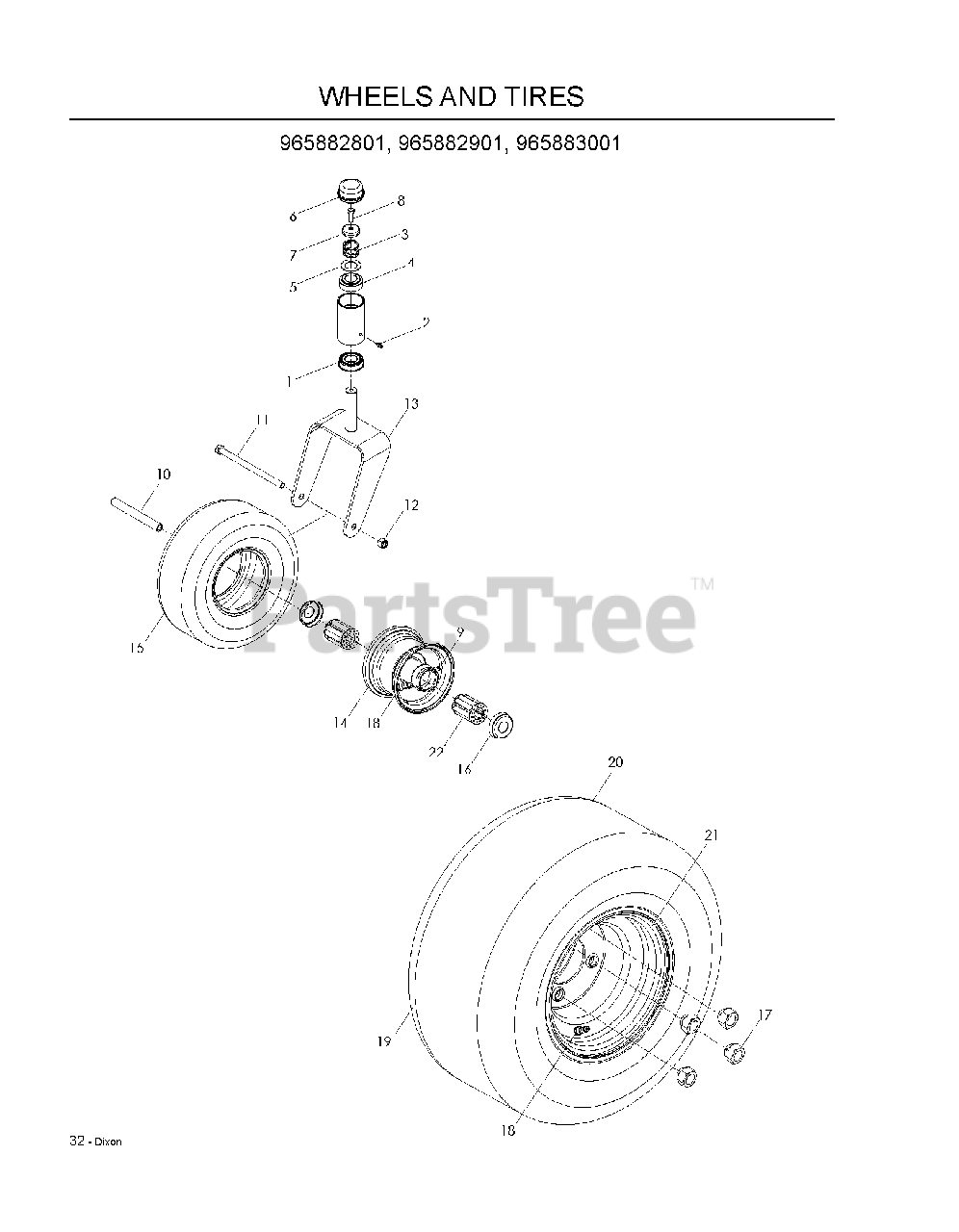

WHEELS & TIRES Parts Diagram

  • Title

1

Dixon 539112660

BEARING FLANGED

$34.99

$

Usually ships in 3-10 days

0

2

Dixon 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.99

$

In Stock, only 3 left!

0

3

Dixon 539115747

SPRING, CASTER

$

$

Not available

4

Dixon 539117901

BUSHING, CASTER

$10.99

$

Usually ships in 3-10 days

0

5

Dixon 539115675

WASHER, 1.025 ID X 1.64

$

$

Not available

6

Dixon 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

7

Dixon 539115749

CASTER.PLUG

$

$

Not available

8

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

9

Dixon 539976997

ZERK 1/8 NPT

$3.99

$

Usually ships in 3-10 days

0

10

Dixon 539102856

SPACER, CASTER

$18.99

$

In Stock, only 2 left!

0

11

Dixon 539102855

SCREW 1/2C X 7 1/2 HEX CAP

$7.49

$

Usually ships in 3-10 days

0

12

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

13

Dixon 539131675

YOKE, CASTER - BLUE
(Superseded to 539131674)

$

$

Not available

14

Dixon 539104573

Tire Assembly, Complete
(Superseded to 539104572)

$

$

Not available

15

Dixon 539102546

TIRE - FRONT
(Superseded to 539104572)

$

$

Not available

16

Dixon 539102484

BEARING RETAINER

$5.99

$

Usually ships in 3-10 days

0

17

Dixon 539101173

LUG NUT 1/2F

$

$

Not available

18

Dixon 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

19

Dixon TBD

TBD

$

$

Not available

20

Dixon 516056601

TIRE.22X9.5-10.TURF.TRAC.R/S

$267.99

$

Usually ships in 3-10 days

0

21

Dixon 516056701

RIM 22 X 9.5-10

$194.99

$

Usually ships in 3-10 days

0

22

Dixon 539102485

ROLLER BEARING

$37.99

$

In Stock, only 2 left!

0

Dixon 539104572

TIRE.ASSEM.13X5-6.SMOOTH.SILVE

Note: NOT SHOWN

$

$

Not available
