Ram 50 KZ (965882801) - Dixon 50" Ram Zero-Turn Mower (2008-12) SEAT Parts Diagram

50" Ram Zero-Turn Mower

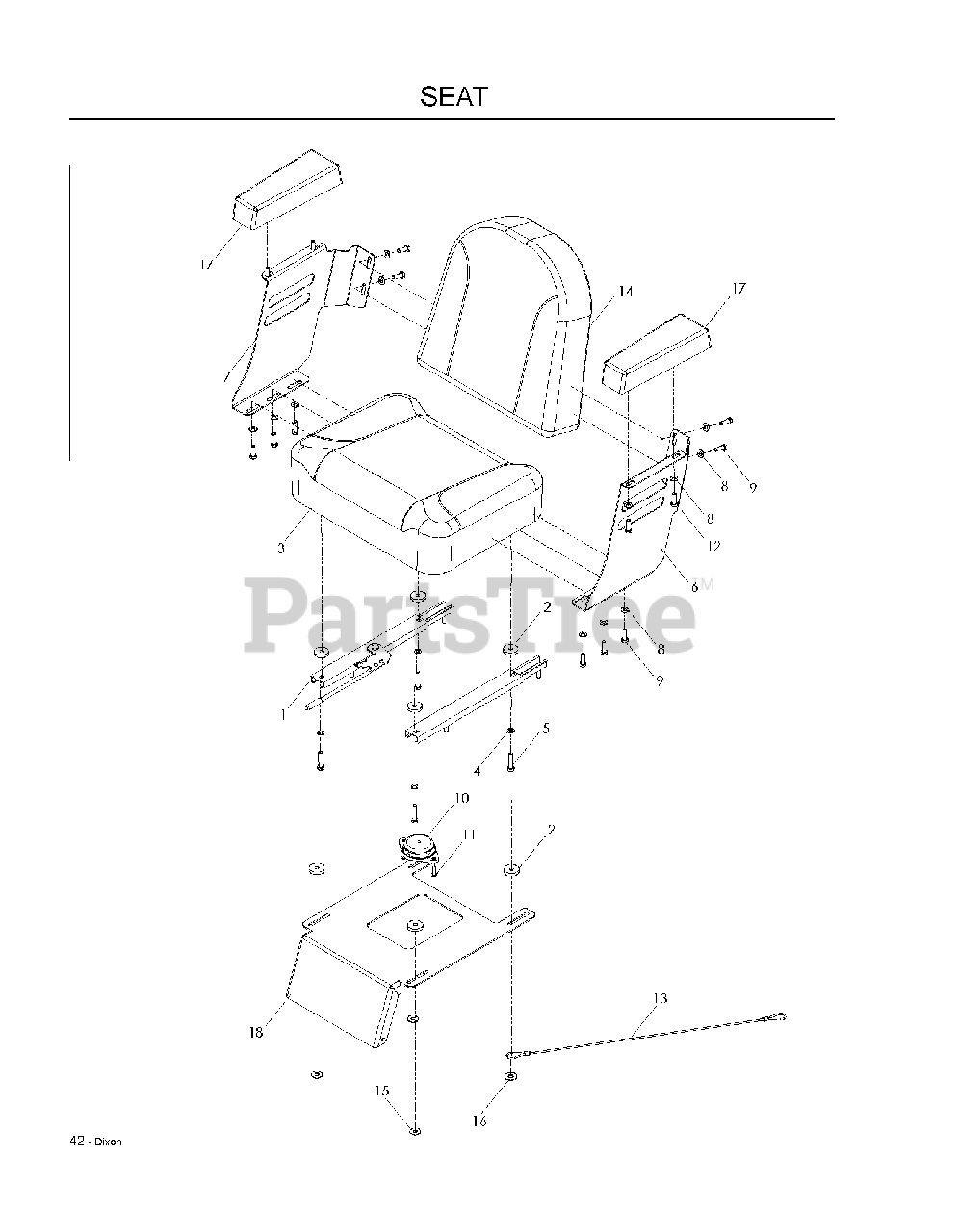

SEAT Parts Diagram

  • Title

1

Dixon 539128796

SEAT SLIDE (SET)

Note: SET

$46.99

$

Usually ships in 3-10 days

0

2

Dixon 539115789

WASHER NYLON

$3.99

$

Usually ships in 3-10 days

0

3

Dixon 539122381

SEAT BOTTOM

$

$

Not available

4

Dixon 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

5

Dixon 539115682

5/16-18X1-1/2 HHB GR5WNY

$4.99

$

Usually ships in 3-10 days

0

6

Dixon TBD

TBD

Note: LH

$

$

Not available

7

Dixon TBD

TBD

Note: RH

$

$

Not available

8

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

9

Dixon 539115566

5/16-18X1 HHB G5W/NY
(Superseded to 874950516)

$

$

Not available

10

Dixon 539117398

SEAT SWITCH MILSCO

$34.99

$

Usually ships in 3-10 days

0

11

Dixon 539108388

SCR 1/4-20X3/4 SLTD RDHD GR2ZD

$2.49

$

Usually ships in 3-10 days

0

12

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

13

Dixon 539103247

SEAT LANYARD

$21.99

$

In Stock, only 2 left!

0

14

Dixon 539122380

SEAT BACK

$

$

Not available

15

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

16

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

17

Dixon TBD

TBD

$

$

Not available

18

Dixon 521949104

PAN, SEAT, BLUE
(Superseded to 525811504)

$122.99

$

Usually ships in 3-10 days

0

Dixon 539122379

SEAT ASM W/SLIDE
(Superseded to 501580402)

Note: NOT SHOWN

$797.99

$

Usually ships in 3-10 days

0
