Ram 50 KZ (965882801) - Dixon 50" Ram Zero-Turn Mower (2008-12) ENGINE PLATE Parts Diagram

50" Ram Zero-Turn Mower

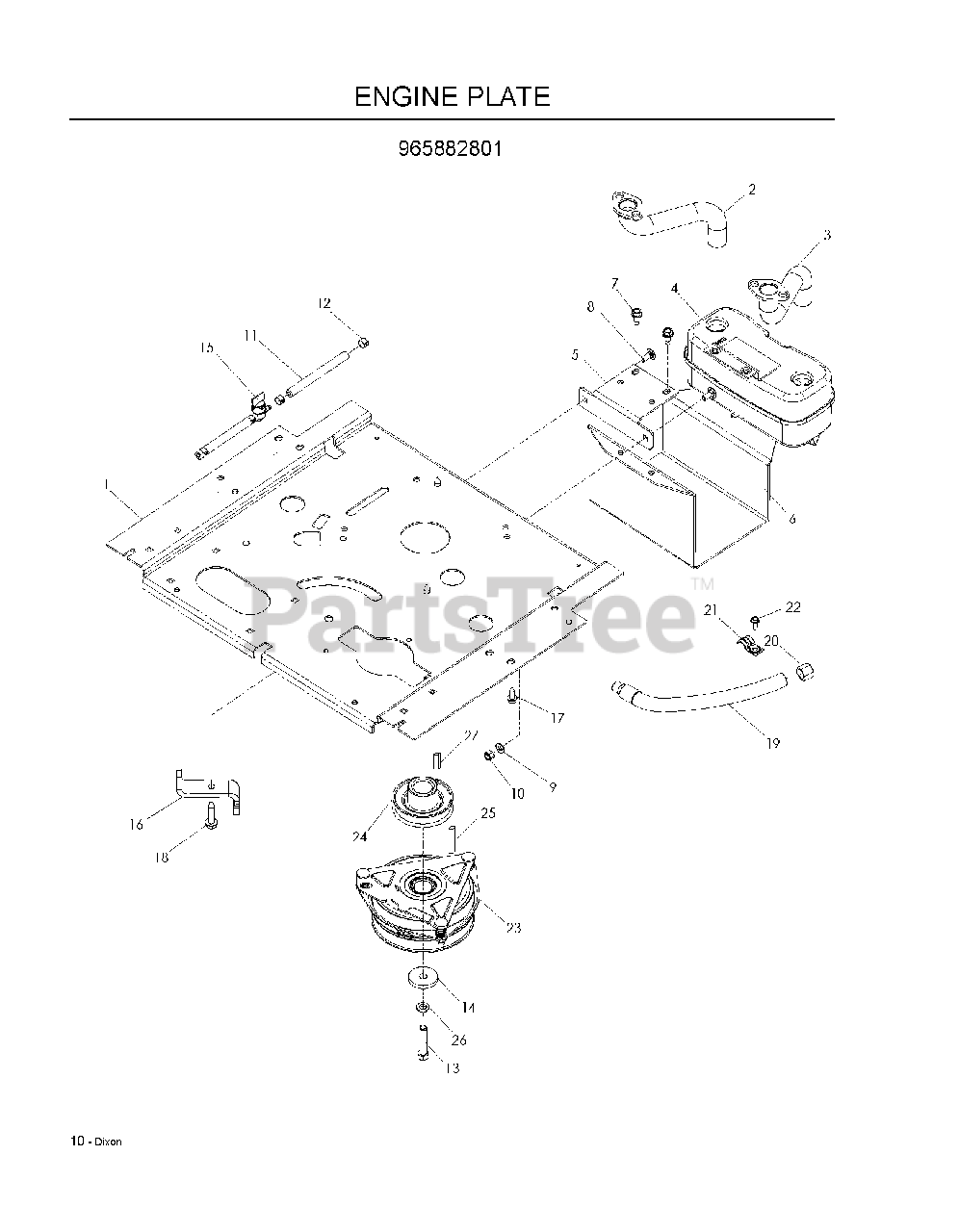

ENGINE PLATE Parts Diagram

  • Title
1

Dixon 516007502

PLATE, ENGINE, BLACK

$160.99

$

Usually ships in 3-10 days

0

2

Dixon 532146699

RP.PIPE-EXHAUST LH
(Superseded to 583954501)

$22.99

$

In Stock, only 1 left!

0

3

Dixon 532146700

RP.PIPE-EXHAUST RH
(Superseded to 583954801)

$20.99

$

In Stock, only 1 left!

0

4

Dixon 539131604

MUFFLER ASM TWIN

$45.99

$

Usually ships in 3-10 days

0

5

Dixon 510260402

BRACKET, MUFFLER, BLACK
(Superseded to 581886702)

$34.99

$

In Stock, only 1 left!

0

6

Dixon 510260502

GUARD, MUFFLER, BLACK

$91.99

$

In Stock, only 1 left!

0

7

Dixon 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

8

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

9

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

10

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

11

Dixon 539110425

FUEL LINE 5"
(Superseded to 587044805)

$3.99

$

In Stock, Qty 6

0

12

Dixon 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

13

Dixon 539111990

HCS 7/16-20 X 2 G8 ZN

$3.99

$

Usually ships in 3-10 days

0

14

Dixon 539106504

SPINDLE WASHER

$

$

Not available

15

Dixon 539916325

FUEL VALVE

$47.99

$

In Stock, only 1 left!

0

16

Dixon 522459704

STOP, CLUTCH, OGURA, BLK

$

$

Not available

17

Dixon 532120616

HHFS 3/8-16 X 1.0 THD FORMING
(Superseded to 817120616)

$5.99

$

In Stock, Qty 17

0

18

Dixon 539110025

BOLT 3/8-16 X 1 1/2 ZINC CLEAR

$4.99

$

Usually ships in 3-10 days

0

19

Dixon 539101362

OIL DRAIN HOSE

$47.99

$

Usually ships in 3-10 days

0

20

Dixon 539101364

DRAIN CAP

$7.49

$

Usually ships in 3-10 days

0

21

$3.99

$

In Stock, only 1 left!

0

22

Dixon 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

23

Dixon 539113437

CLUTCH, 150 FT/LBS

$484.99

$

Usually ships in 3-10 days

0

24

Dixon 522506701

PULLEY, 4.5"

$72.99

$

Usually ships in 3-10 days

0

25

Dixon 539910210

KEY 1/4 SQ X 2

$7.49

$

In Stock, only 1 left!

0

26

Dixon 539990247

WASHER 7/16 LOCK

$

$

Not available

27

Dixon 539105308

KEY 1/4 SQ X 1.0

$4.99

$

In Stock, Qty 5

0
