Ram 50 - Dixon 50" Ram Zero-Turn Mower (2004) CHASSIS 50" Parts Diagram

50" Ram Zero-Turn Mower

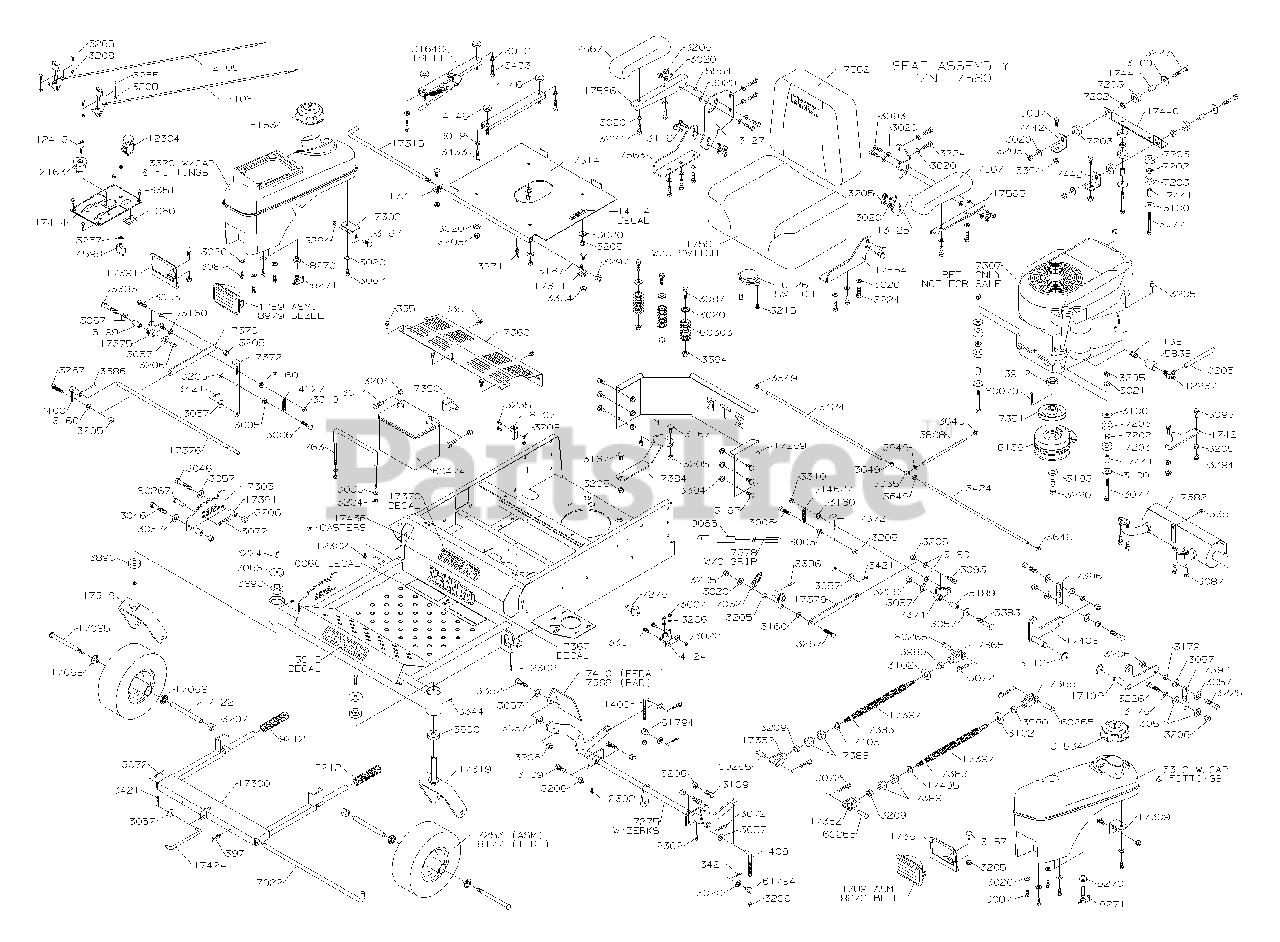

CHASSIS 50" Parts Diagram

  • Title

1060

1060

$

$

Not available

1409

1409

L ROD 3-7/8

$

$

Not available

1763

1763

TIE DOWN W/INSULATOR

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3022

3022

WASHER 1/4 EXTLW STAR ZD

$

$

Not available

3046

3046

3/8-16UNCX2 HH BLT

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3077

Dixon 3077

5/16-18X2-3/4HHB GR5

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3100

3100

7/16 HD FLAT WASHER

$

$

Not available

3102

3102

5/8 STD FLATWASHER

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3119

3119

RET.RING TRU ARC W75

$

$

Not available

3160

3160

5/16STD FL WASH TYPA

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3169

3169

R/B HCS 3/8-16 X 1 GR 5 ZD

$

$

Not available

3179

Dixon 3179

3/8-16 HEX JAM NUT

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3209

3209

1/2-20 HEX JAM NUT

$

$

Not available

3215

3215

1/4-20X3/4RD HD SCR

$

$

Not available

3220

3220

7/16-20X2-3/4 HHB G5

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3226

3226

3/8-16X1-3/4 HHB GR5

$

$

Not available

3227

3227

5/16-18X2 HHB GR5

$

$

Not available

3235

3235

#10-24X5/8PHIL PANHD

$

$

Not available

3257

3257

7/16 INT TOOTH LWASH

$

$

Not available

3265

3265

10-24X3/4TRUSS HD PH

$

$

Not available

3266

3266

1/4" INT TOOTH L.W.

$

$

Not available

3267

3267

5/16-18X1-1/2 HHB G5

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3310

3310

5/16-18 THIN PROF NY

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3352

3352

HCS 3/8C X 1 1/4

$

$

Not available

3383

3383

3/8-16X2-1/4 CAR BLT

$

$

Not available

3386

3386

ROLL PIN 3/16 X1-1/4

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3421

3421

COTTER HP .08DIAX1.19

$

$

Not available

3424

3424

HOSE 1/4 X 44

$

$

Not available

3433

3433

5/16-18X1-1/2 HHB GR5WNY

$

$

Not available

3635

3635

FUEL LINE TEE

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3808

3808

HOSE 1/4 X 5.5

$

$

Not available

3890

Dixon 3890

BEARING

$

$

Not available

3912

3912

SPACER .50

$

$

Not available

3916

Dixon 3916

R/B 3916 DECAL - DIXON

$

$

Not available

3971

3971

LINK RETAINER

$

$

Not available

3980

Dixon 3980

1/2-20 LH HEX JAM NUT

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4146

4146

WASHER NYLON

$

$

Not available

4598

4598

CIRCUIT BREAKER W58XB1A4A15

$

$

Not available

4789

4789

HEADLIGHT

$

$

Not available

5189

5189

BUSHING

$

$

Not available

5554

Dixon 5554

SPACER

$

$

Not available

5838

5838

FEMALE COUPLING

$

$

Not available

7032

7032

SPRING - 3.50

$

$

Not available

7202

7202

ISO-MOUNT INSERT

$

$

Not available

7203

7203

ISO-MOUNT BUSHING

$

$

Not available

7275

7275

TERMINAL COVER-SM

$

$

Not available

8177

8177

CASTER TIRE - 50`

$

$

Not available

8270

8270

TANK FITTING

$

$

Not available

8271

8271

TANK FUEL VALVE # 8271

$

$

Not available

8979

8979

HEADLIGHT BEZEL

$

$

Not available

9212

9212

SPRING(YELLOW ZINC CHROM

$

$

Not available

10065

10065

GRIP

$

$

Not available

10126

10126

R/B 10126 SEAT SWITCH

$

$

Not available

10205

10205

OIL DRAIN HOSE

$

$

Not available

11138

11138

NIPPLE

$

$

Not available

12105

12105

CABLE CHOKE

$

$

Not available

12106

12106

CABLE THROTTLE

$

$

Not available

12163

12163

IGNITION SWITCH

$

$

Not available

12237

12237

3/8X2 GALV PIPE NIPP

$

$

Not available

12302

12302

GREASE ZERK-1/4"

$

$

Not available

12304

12304

CLUTCH SWITCH

$

$

Not available

12413

12413

KEY MOLDED

$

$

Not available

13126

13126

R/B 13126 LH SEAT BACK BRACKE

$

$

Not available

13127

13127

R/B 13127 RH SEAT BACK BRACKE

$

$

Not available

13319

13319

LH TANK W/CAP

$

$

Not available

13320

13320

RH TANK W/CAP

$

$

Not available

14114

14114

DECAL, PARK BRAKE

$

$

Not available

14627

14627

SPRING

$

$

Not available

16107

16107

SWITCH

$

$

Not available

16138

16138

CLUTCH

$

$

Not available

17022

17022

HANGER ROD

$

$

Not available

17085

17085

RHSNB 1/2-13 X 6.50 GR5 ZD

$

$

Not available

17086

17086

WASHER 2.00 X .328 X.25

$

$

Not available

17098

17098

BEARING

$

$

Not available

17122

17122

TUBE

$

$

Not available

17253

17253

CASTER WHEEL & TIRE

$

$

Not available

17259

17259

REAR CHANNEL

$

$

Not available

17275

17275

LIFT SHAFT W/ZERKS

$

$

Not available

17300

17300

LIFT FRAME

$

$

Not available

17303

17303

QUADRANT (PLATED)

$

$

Not available

17307

17307

$

$

Not available

17309

17309

TANK BRKT.

$

$

Not available

17311

17311

SEAT PIVOT

$

$

Not available

17314

17314

SEAT PLATE WLDT.

$

$

Not available

17315

17315

SEAT PIN

$

$

Not available

17319

17319

CASTER YOKE WLDT.

$

$

Not available

17351

17351

DRIVE PULLEY-ENGINE

$

$

Not available

17352

17352

CLEVIS FEMALE-RH

$

$

Not available

17360

17360

FAN GUARD

$

$

Not available

17361

17361

SPACER

$

$

Not available

17365

17365

CLEVIS FEMALE-LH

$

$

Not available

17367

17367

DECAL, RAM 50

$

$

Not available

17369

17369

$

$

Not available

17370

17370

DECAL, DIXON ZTR

$

$

Not available

17372

17372

BRAKE SLIDE ARM

$

$

Not available

17374

17374

BRAKE PIVOT WLDT. LH

$

$

Not available

17375

17375

BRAKE PIVOT WLDT. RH

$

$

Not available

17376

17376

BRAKE ROD

$

$

Not available

17378

17378

BRAKE HANDLE DRILLED

$

$

Not available

17379

17379

BRAKE LINK

$

$

Not available

17382

17382

R/B 17382 ` MUFFLER

$

$

Not available

17383

17383

TIE BAR

$

$

Not available

17384

17384

BRACE

$

$

Not available

17387

17387

LIFT SPRING

$

$

Not available

17388

17388

5/8-11 HEX JAM NUT

$

$

Not available

17390

17390

TERMINAL COVER

$

$

Not available

17391

17391

BRACKET HEADLIGHT.

$

$

Not available

17396

17396

CHAIN

$

$

Not available

17400

17400

BRAKE ARM DRILLED

$

$

Not available

17405

17405

WASHER PLATED

$

$

Not available

17408

17408

REAR LIFT RH (PLATED)

$

$

Not available

17409

17409

REAR LIFT LH (PLATED)

$

$

Not available

17410

17410

FOOT PEDAL (PLATED)

$

$

Not available

17414

17414

CONTROL PANEL

$

$

Not available

17421

17421

CLUTCH STOP

$

$

Not available

17424

17424

ROD

$

$

Not available

17436

17436

$

$

Not available

17440

17440

ISO MT. PLATE

$

$

Not available

17441

17441

ISO MT. BUSHING

$

$

Not available

17442

17442

ISO MT. BRKT.

$

$

Not available

17560

17560

SEAT ASM.

$

$

Not available

17561

17561

CORDURA SEAT CUSHION

$

$

Not available

17562

17562

R/B 17999 CORDURA BACK CUSH.W

$

$

Not available

17563

17563

RH LOWER SEAT BRKT

$

$

Not available

17564

17564

LH LOWER SEAT BRKT

$

$

Not available

17565

17565

RH ARM REST BRKT

$

$

Not available

17566

17566

LH ARM REST BRKT.

$

$

Not available

17567

17567

POLYURETHANE ARMREST

$

$

Not available

60070

60070

KEY 1/4`SQ X 1-1/4`

$

$

Not available

60265

60265

CLEVIS PIN 1/2X1-1/2` L

$

$

Not available

60267

60267

CLEVIS PIN 1/2X2`LG.

$

$

Not available

60303

60303

SEAT SPRING

$

$

Not available

60474

Dixon 60474

BATTERY

$

$

Not available

61534

61534

GASOLINE CAP

$

$

Not available

61646

61646

SEAT SLIDE (SET)

$

$

Not available

61794

61794

SWIVEL

$

$

Not available
