Ram 50 (968999552) - Dixon 50" Ram Zero-Turn Mower, 26 hp Briggs & Stratton (2007) Engine Mount Assembly: Briggs & Stratton Parts Diagram

50" Ram Zero-Turn Mower, 26hp Briggs & Stratton

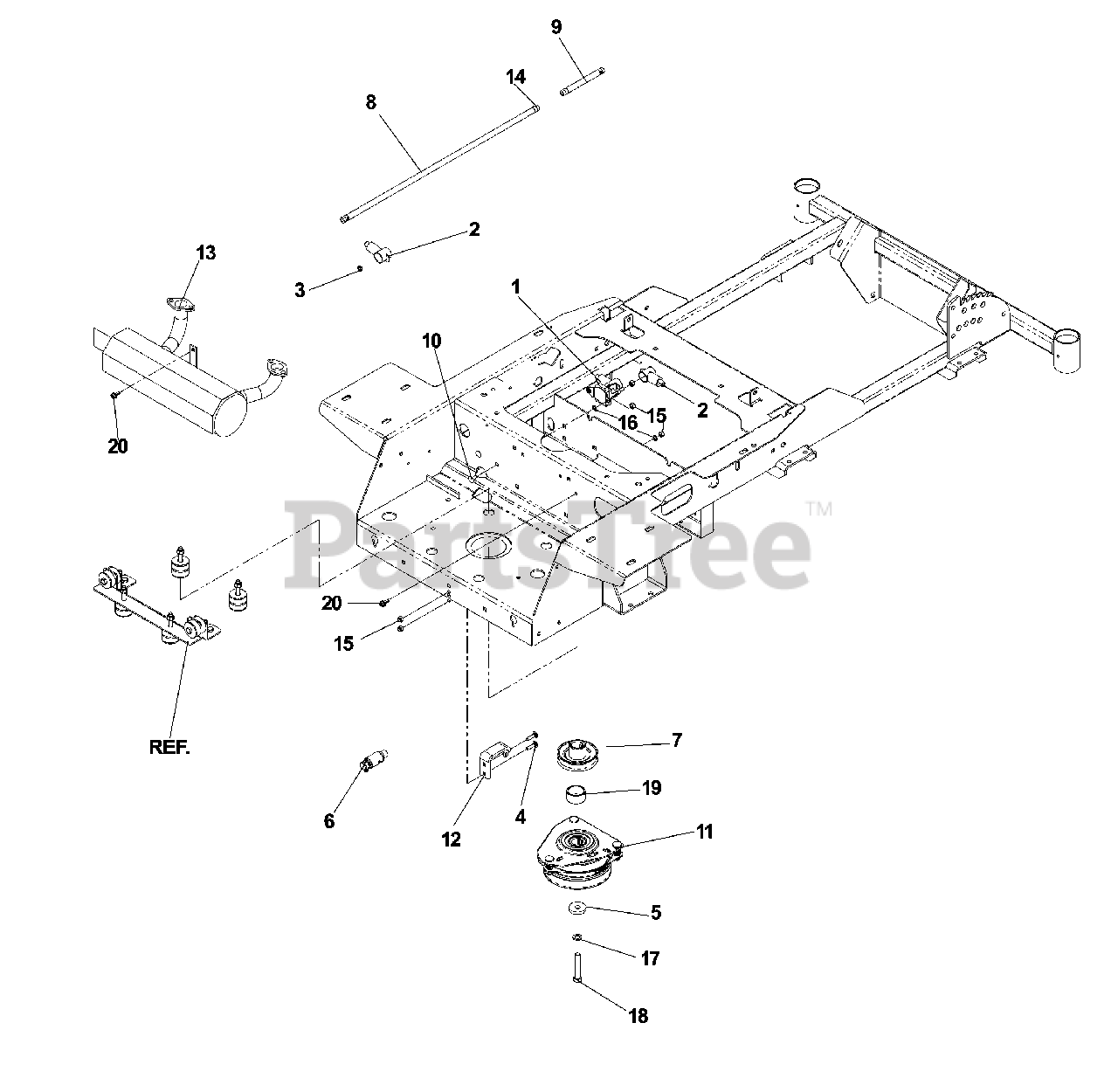

Engine Mount Assembly: Briggs & Stratton Parts Diagram

  • Title
1

Dixon 539101714

SOLENOID

$26.99

$

Usually ships in 3-10 days

0

2

Dixon 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

3

Dixon 539108120

JAM NUT 1/4C
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

4

Dixon 539109800

RHSNB, 1/4-20 X 1, GR5
(Superseded to 592807801)

$4.99

$

In Stock, only 3 left!

0

5

Dixon 539110064

CLUTCH, WASHER
(Superseded to 532126197)

$8.99

$

In Stock, only 3 left!

0

6

Dixon 539110093

OIL DRAIN FITTING
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

7

Dixon 539114530

PULLEY, ENGINE
(Superseded to 587537401)

$26.99

$

In Stock, only 3 left!

0

8

Dixon 539110424

FUEL LINE 24"
(Superseded to 539107765)

$7.99

$

In Stock, only 2 left!

0

9

Dixon 539110425

FUEL LINE 5"
(Superseded to 587044805)

$3.99

$

In Stock, Qty 6

0

10

Dixon 539111786

RHSSNB, 1/4-20X5/8

$2.49

$

Usually ships in 3-10 days

0

11

Dixon 539114595

CLUTCH, OGURA - 90 FT/LB
(Superseded to 532414336)

$399.99

$

Usually ships in 3-10 days

0

12

Dixon 539114342

TIE DOWN, CLUTCH

$

$

Not available

13

Dixon 539121325

MUFFLER

$

$

Not available

14

Dixon 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

15

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

16

Dixon 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

17

Dixon 539990247

WASHER 7/16 LOCK

$

$

Not available

18

Dixon 539923388

HEX SCREW 7/16-20 X 3

$3.99

$

Usually ships in 3-10 days

0

19

Dixon 539114542

SPACER, ENGINE - PULLEY

$10.99

$

Usually ships in 3-10 days

0

20

Dixon 539107631

SCREW- 1/4-20 X 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 19

0

Dixon 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

Note: (NOT SHOWN)

$10.99

$

In Stock, only 2 left!

0

Dixon 539107516

KOHLER PIGTAIL-CV490S

Note: (NOT SHOWN)

$

$

Not available

Dixon 539105409

GROUND WIRE (KAW)

Note: (NOT SHOWN)

$8.99

$

Usually ships in 3-10 days

0
