Ram 48 ZT CA (966611604) - Dixon 48" Ram Zero-Turn Mower (2013-01) MOWER DECK / CUTTING DECK Parts Diagram

48" Ram Zero-Turn Mower

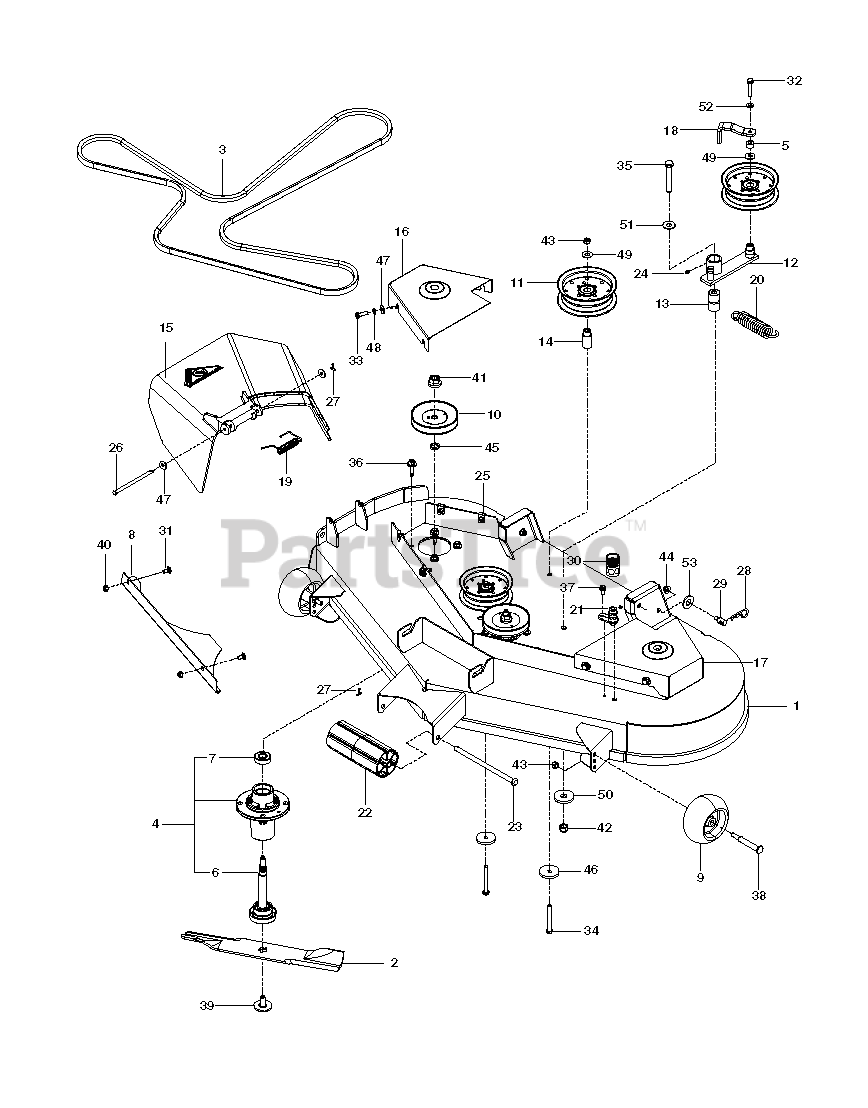

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Dixon 522745701

DECK W/DECALS - RAM 48

$1335.99

$

Usually ships in 3-10 days

0

2

Dixon 575296401

BLADE, 16-1/4" FUSION

$30.99

$

In Stock, only 3 left!

0

3

Dixon 539103013

No Description Available

$109.99

$

In Stock, only 1 left!

0

4

Dixon 539131898

MANDREL ASM, CAST IRON

$80.99

$

In Stock, Qty 8

0

5

$5.99

$

In Stock, only 1 left!

0

6

Dixon 532187291

SHAFT ASM MANDREL

$28.99

$

In Stock, Qty 14

0

7

Dixon 532110485

BEARING

$13.99

$

In Stock, Qty 11

0

8

Dixon 539113427

No Description Available

$

$

Not available

9

Dixon 539107610

OBSOLETE - GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 10

0

10

Dixon 532173434

MANDREL PULLEY

$18.99

$

Usually ships in 3-10 days

0

11

Dixon 539132728

PULLEY, IDLER
(Superseded to 589766102)

$31.99

$

In Stock, Qty 11

0

12

Dixon 539112198

IDLER ARM

$121.99

$

In Stock, only 3 left!

0

13

Dixon 539103427

PIVOT BUSHING

$9.49

$

In Stock, Qty 8

0

14

Dixon 539112169

IDLER BUSHING

$

$

Not available

15

Dixon 539110732

DISCHARGE CHUTE 48"

$53.99

$

In Stock, only 2 left!

0

16

Dixon 521953401

BELTSHIELD - R.H. BLUE

$

$

Not available

17

Dixon 521953501

BELTSHIELD - L.H. BLUE

$78.99

$

Usually ships in 3-10 days

0

18

Dixon 539114981

GUIDE, BELT

$

$

Not available

19

Dixon 539110735

SPRING - TORSION
(Superseded to 596646001)

$4.99

$

In Stock, only 2 left!

0

20

$12.99

$

In Stock, Qty 5

0

21

Dixon 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 17

0

22

Dixon 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 13

0

23

Dixon 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$6.99

$

In Stock, Qty 19

0

24

Dixon 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

25

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

26

Dixon 539110736

PIN-CLEVIS 5/16 DIA X 5.19 ZD

$3.49

$

Usually ships in 3-10 days

0

27

Dixon 539990365

COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

28

Dixon 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

29

Dixon 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

30

Dixon 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 6

0

31

Dixon 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

32

Dixon 539990730

HCS 3/8-16 X 1 3/4 GR5

$3.99

$

Usually ships in 3-10 days

0

33

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

34

Dixon 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 12

0

35

Dixon 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

36

Dixon 539107630

OBSOLETE - WASHER HEAD SCREW
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

37

Dixon 539108461

BOLT 1/4-20 X 1/2 HWST

$4.99

$

In Stock, Qty 5

0

38

Dixon 539107608

SHOULDER BOLT 1/2X2-5/8 ZD SPE
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

39

Dixon 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

40

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

41

Dixon 539107590

OBSOLETE - LOCKNUT - 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

42

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

43

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

44

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

45

Dixon 539107520

OBSOLETE - WASHER-SPACER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

46

Dixon 539106504

SPINDLE WASHER

$

$

Not available

47

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

48

Dixon 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

49

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

50

Dixon 539102243

WASHER, SUPPORT

$

$

Not available

51

Dixon 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

52

Dixon 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

53

Dixon 539976982

WASHER 5/8 FLAT

$4.99

$

Usually ships in 3-10 days

0
