Ram 48 ZT CA (966611604) - Dixon 48" Ram Zero-Turn Mower (2013-01) IGNITION SYSTEM Parts Diagram

48" Ram Zero-Turn Mower

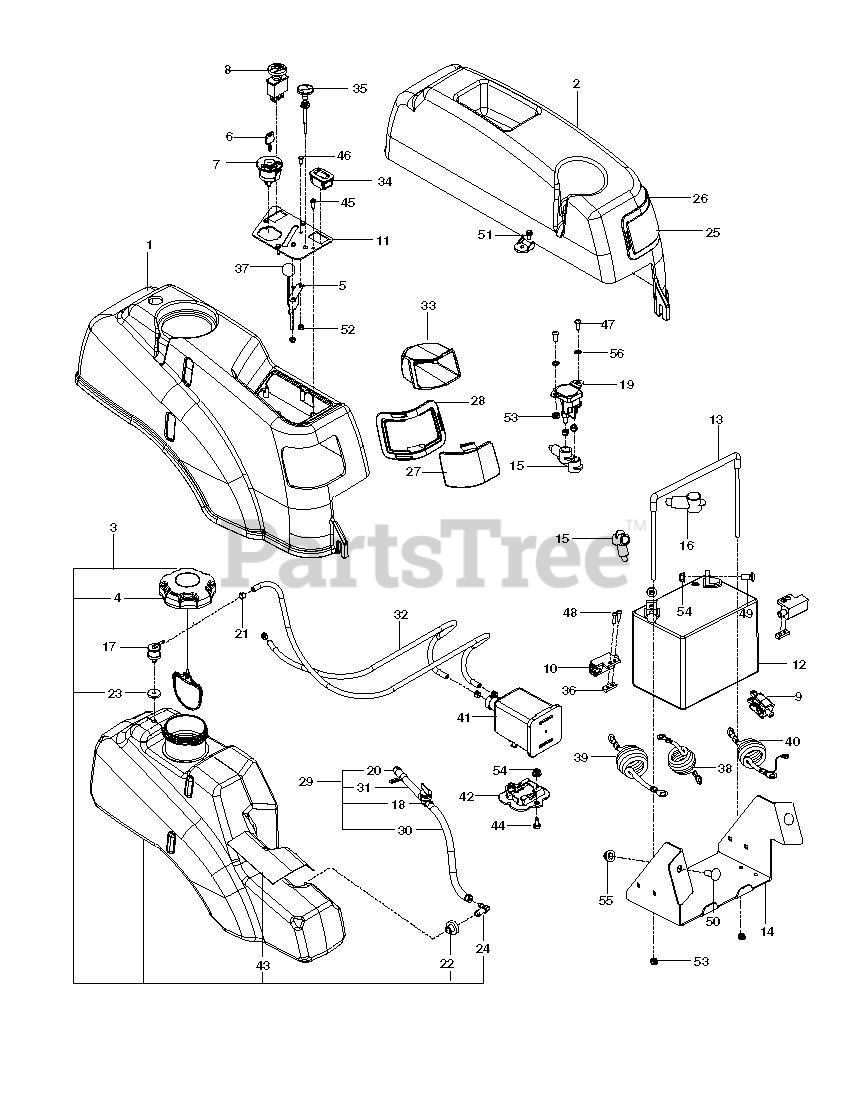

IGNITION SYSTEM Parts Diagram

  • Title

1

Dixon 578179001

FENDER RT, BLACK

$

$

Not available

2

Dixon 576370501

FENDER, LT, BLK

$85.99

$

In Stock, only 1 left!

0

3

Dixon 578180601

FUEL TANK ASM, LARGE
(Superseded to 589924706)

$157.99

$

Usually ships in 3-10 days

0

4

Dixon 575018101

CAP, FUEL
(Superseded to 575018103)

$34.99

$

Usually ships in 3-10 days

0

5

Dixon 539112734

THROTTLE CABLE

$34.99

$

Usually ships in 3-10 days

0

6

Dixon 532140401

No Description Available

$6.99

$

In Stock, Qty 9

0

7

Dixon 539107541

IGNITION SWITCH
(Superseded to 532175566)

$26.99

$

In Stock, Qty 8

0

8

Dixon 532174652

No Description Available
(Superseded to 582107602)

$28.99

$

In Stock, Qty 8

0

9

Dixon 539113792

SWITCH, BRAKE 3P

$17.99

$

In Stock, Qty 13

0

10

Dixon 532109553

No Description Available
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

11

Dixon 539112735

No Description Available

$27.99

$

In Stock, only 1 left!

0

12

Dixon 539102436

OBSOLETE - BATTERY, 12 V 330 AMP TBR
(Superseded to 579411601)

$

$

Not available

13

Dixon 539131209

BATTERY TIE DOWN ASSEMBLY

$31.99

$

Usually ships in 3-10 days

0

14

Dixon 510231302

BOX, BATTERY, BLACK

$182.99

$

Usually ships in 3-10 days

0

15

Dixon 539116400

TERMINAL COVER-SM

$3.99

$

Usually ships in 3-10 days

0

16

Dixon 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

17

Dixon 576618101

VALVE.FUEL.CHECK

$25.99

$

In Stock, Qty 10

0

18

Dixon 539916325

FUEL VALVE

$47.99

$

Usually ships in 3-10 days

0

19

Dixon 539101714

SOLENOID

$26.99

$

Usually ships in 3-10 days

0

20

Dixon 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

21

Dixon 575436501

CLAMP, HOSE

$6.49

$

In Stock, only 4 left!

0

22

Dixon 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 5

0

23

Dixon 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$4.99

$

In Stock, only 4 left!

0

24

Dixon 539110432

OBSOLETE - STEM, FUEL TANK
(Superseded to 532139277)

$8.99

$

In Stock, Qty 5

0

25

Dixon 576370901

RING, LT BLK

$4.99

$

In Stock, only 1 left!

0

26

Dixon 539110455

No Description Available

$6.49

$

Usually ships in 3-10 days

0

27

Dixon 576371001

RING, TRIM, RT-BLK

$4.99

$

In Stock, Qty 6

0

28

Dixon 539110451

No Description Available

$6.49

$

In Stock, only 1 left!

0

29

Dixon 576660701

FUEL LINE ASSY

$27.99

$

Usually ships in 3-10 days

0

30

Dixon 539932956

GAS LINE 10"

$

$

Not available

31

Dixon 505215101

FUEL LINE 2.5"

$3.99

$

Usually ships in 3-10 days

0

32

Dixon 575437802

FUEL LINE 33"
(Superseded to 575437801)

$14.99

$

Usually ships in 3-10 days

0

33

Dixon 539130672

No Description Available

$

$

Not available

Dixon 539130671

No Description Available

$21.99

$

Usually ships in 3-10 days

0

34

Dixon 532401763

No Description Available
(Superseded to 594919101)

$24.99

$

In Stock, Qty 6

0

35

Dixon 539112439

CHOKE CABLE

$34.99

$

In Stock, only 1 left!

0

36

Dixon 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

37

Dixon 539133049

KNOB ROUND BALL

$18.99

$

Usually ships in 3-10 days

0

38

Dixon 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

$10.99

$

In Stock, only 2 left!

0

39

Dixon 539110068

BATTERY CABLE, NEGATIVE

$9.49

$

Usually ships in 3-10 days

0

40

Dixon 580798001

No Description Available

$

$

Not available

41

Dixon 532414114

CANNISTER, CARBON

$62.99

$

Usually ships in 3-10 days

0

42

Dixon 575242701

BRACKET, CANISTER

$10.99

$

Usually ships in 3-10 days

0

43

Dixon 522559101

No Description Available

$37.99

$

Usually ships in 3-10 days

0

44

Dixon 539108392

OBSOLETE - HCS 5/16-18 X 5/8 GR 5 ZD
(Superseded to 596031601)

$3.99

$

In Stock, only 3 left!

0

45

Dixon 539110673

SCR #10-12X3/4 HEX WAS HD ZD

$4.99

$

Usually ships in 3-10 days

0

46

Dixon 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

47

Dixon 539111229

SCR 1/4-20 X 5/8 BTN SKT HD ZD

$3.99

$

Usually ships in 3-10 days

0

48

Dixon 574822701

SCR #10-24 X .75 SKT HD BLK

$4.99

$

In Stock, Qty 6

0

49

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

50

Dixon 539990645

RHSNB 3/8C X 1

$

$

Not available

51

Dixon 539108461

BOLT 1/4-20 X 1/2 HWST

$4.99

$

In Stock, Qty 7

0

52

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

53

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

54

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

55

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

56

Dixon 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

Dixon 580798101

WIRING HARNESS

$145.99

$

Usually ships in 3-10 days

0

Dixon 539110471

No Description Available

$27.99

$

Usually ships in 3-10 days

0
