Ram 48 ZT CA (966611604) - Dixon 48" Ram Zero-Turn Mower (2013-01) HYDRAULIC PUMP- MOTOR Parts Diagram

48" Ram Zero-Turn Mower

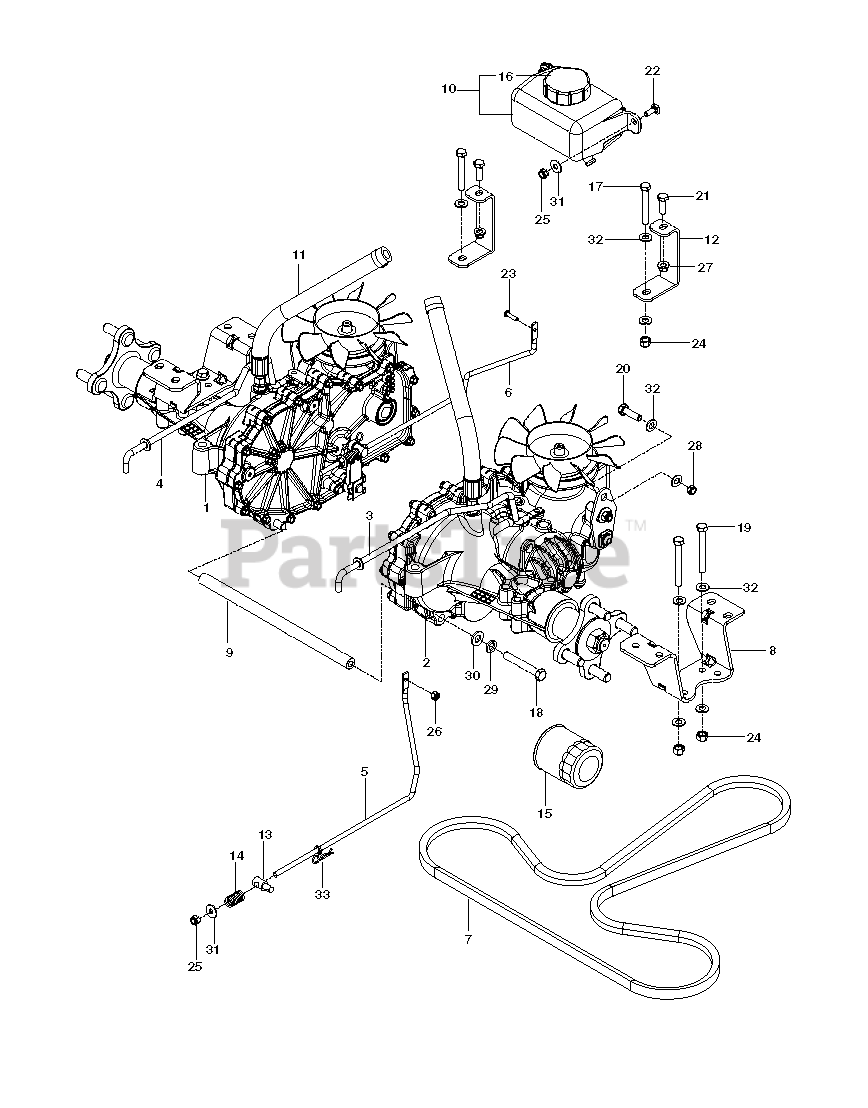

HYDRAULIC PUMP- MOTOR Parts Diagram

  • Title

1

Dixon 522447402

HG_TRANS, ZT-2800 RT

$1011.99

$

Usually ships in 3-10 days

0

2

Dixon 522447401

HG_TRANS, ZT-2800 LEFT

$

$

Not available

3

Dixon 522706002

ROD, BYPASS, RT

$7.99

$

Usually ships in 3-10 days

0

4

Dixon 522706001

ROD, BYPASS, LT

$9.99

$

Usually ships in 3-10 days

0

5

Dixon 574030502

LINKAGE, BRAKE RT

$

$

Not available

6

Dixon 574030501

LINKAGE.BRAKE.LT

$

$

Not available

7

Dixon 539120772

EZT HYDRO BELT

$40.99

$

In Stock, only 3 left!

0

8

Dixon 510185102

EZT MOUNT, REAR, BLACK

$37.99

$

In Stock, only 2 left!

0

9

Dixon 510184103

SPACER TUBE, EZT, 11.08

$

$

Not available

10

Dixon 539112318

HG_EXPANSION TANK W/CAP

$80.99

$

Usually ships in 3-10 days

0

11

Dixon 522439801

HOSE ASSY

$42.99

$

Usually ships in 3-10 days

0

12

Dixon 522460702

SUPPORT FRT TRANS, BLK
(Superseded to 580806502)

$6.99

$

In Stock, only 2 left!

0

13

Dixon 539112308

BRAKE SWIVEL

$10.99

$

In Stock, only 1 left!

0

14

Dixon 539101224

SPRING

$22.99

$

In Stock, only 1 left!

0

15

Dixon 539113466

HG_FILTER, ZT4800

$60.99

$

Usually ships in 3-10 days

0

16

Dixon 539112449

HG_CAP

$

$

Not available

17

Dixon 539976938

CAPSCREW

$4.99

$

In Stock, only 2 left!

0

18

Dixon 539108551

HCS 3/8-16X2-1/4 LOC PATCH GR8

$6.49

$

Usually ships in 3-10 days

0

19

Dixon 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 7

0

20

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

21

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

22

Dixon 539990074

RHSNB 1/4C X 3/4
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

23

Dixon 539108535

SCR #10-24 X 3/4

$4.99

$

In Stock, Qty 6

0

24

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

25

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

26

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

27

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

28

Dixon 539115617

5/16-18 THIN PROF NY

$

$

Not available

29

Dixon 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

30

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

31

Dixon 539990598

WASHER 1/4 FLAT

$

$

Not available

32

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

33

Dixon 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0
