Ram 48 ZT CA (966611604) - Dixon 48" Ram Zero-Turn Mower (2013-01) FRAME Parts Diagram

48" Ram Zero-Turn Mower

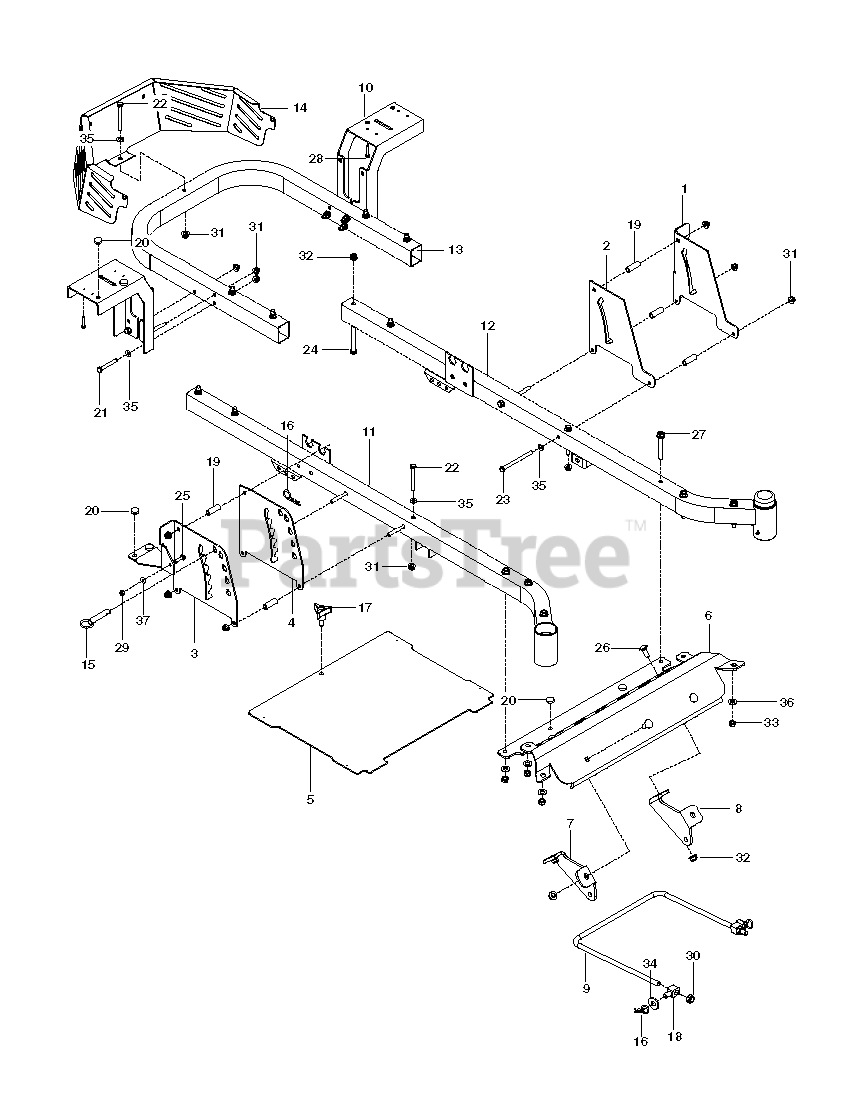

FRAME Parts Diagram

  • Title

1

Dixon 510261802

PLATE, OUTER BRAKE, BLACK

$60.99

$

Usually ships in 3-10 days

0

2

Dixon 510206703

PLATE, BRAKE LATCH, BLACK

$48.99

$

Usually ships in 3-10 days

0

3

Dixon 510245604

No Description Available

$72.99

$

Usually ships in 3-10 days

0

4

Dixon 510240502

PLATE, DECK HEIGHT, BLACK

$21.99

$

Usually ships in 3-10 days

0

5

Dixon 522842903

PLATE, FOOT W/DECALS KZ

$132.99

$

Usually ships in 3-10 days

0

6

Dixon 522740704

FOOT REST, MED BLUE

$182.99

$

Usually ships in 3-10 days

0

7

Dixon 522443302

MOUNT, STRUT, RT, BLK

$34.99

$

Usually ships in 3-10 days

0

8

Dixon 522443304

MOUNT, STRUT, LT, BLK

$398.99

$

Usually ships in 3-10 days

0

9

Dixon 521938101

LINK, FRONT SUSP.

$

$

Not available

10

Dixon 510225902

SUPPORT, FENDER, BLACK

$78.99

$

Usually ships in 3-10 days

0

11

Dixon 510177504

FRAME, RT, BLUE

$91.99

$

Usually ships in 3-10 days

0

12

Dixon 510177404

FRAME, LT, BLUE

$91.99

$

Usually ships in 3-10 days

0

13

Dixon 516001804

FRAME TUBE, REAR BLUE

$157.99

$

Usually ships in 3-10 days

0

14

Dixon 516023302

GUARD, REAR, BLUE

$121.99

$

Usually ships in 3-10 days

0

15

Dixon 539102526

HITCH PIN

$21.99

$

Usually ships in 3-10 days

0

16

Dixon 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

17

Dixon 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

18

Dixon 539114789

SWIVEL

$17.99

$

In Stock, only 2 left!

0

19

Dixon 515988101

SPACER, .334 ID X .5 OD X 1.5
(Superseded to 580486101)

$

$

Not available

20

Dixon 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

21

Dixon 539976938

CAPSCREW

$4.99

$

In Stock, only 2 left!

0

22

Dixon 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 7

0

23

Dixon 539102335

HCS 5/16C X 4

$3.99

$

Usually ships in 3-10 days

0

24

Dixon 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 12

0

25

Dixon 539977761

HCS 1/4C X 1

$3.99

$

Usually ships in 3-10 days

0

26

Dixon 539990645

RHSNB 3/8C X 1

$

$

Not available

27

Dixon 539111976

ENGINE BOLT, SPECIAL

$3.99

$

Usually ships in 3-10 days

0

28

Dixon 539110674

SCR #10-12X1-1/2HEX WASH HD ZD

$4.99

$

Usually ships in 3-10 days

0

29

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

30

Dixon 539119124

7/16-14 HEX NUT W/NYL RING ZD

$

$

Not available

31

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

32

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

33

Dixon 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

34

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available

35

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

36

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

37

Dixon 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0
