Ram 48 ZT BF (966495401) - Dixon 48" Ram Zero-Turn Mower (2009-09) SEAT Parts Diagram

48" Ram Zero-Turn Mower

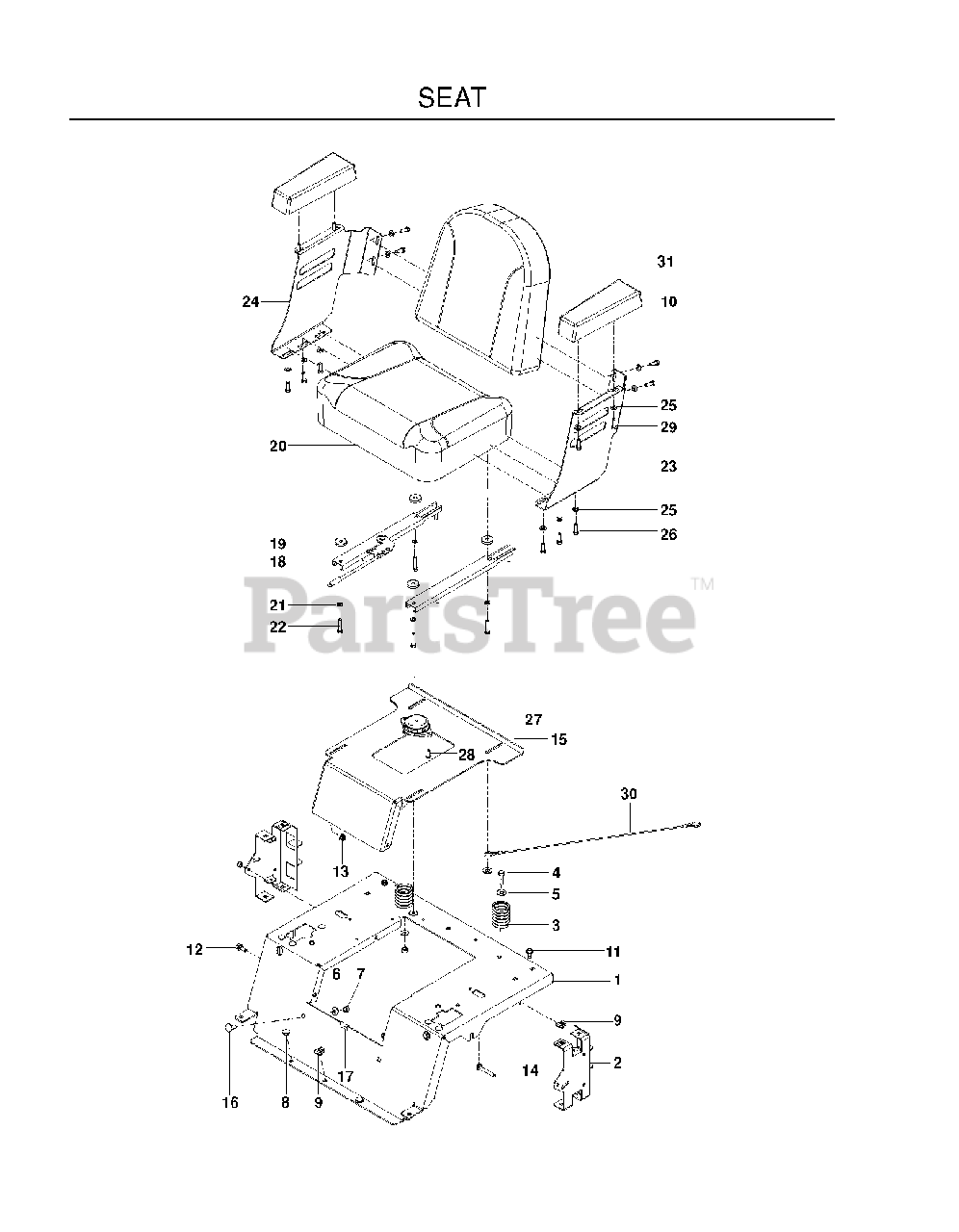

SEAT Parts Diagram

  • Title
1

Dixon 521949002

SUPPORT, SEAT, BLUE

$264.99

$

Usually ships in 3-10 days

0

2

Dixon 510182902

SUPPORT, REAR SEAT, BLACK

$66.99

$

Usually ships in 3-10 days

0

3

Dixon 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

4

Dixon 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

5

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

6

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

7

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

8

Dixon 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

9

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

11

Dixon 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

12

Dixon 539130896

SB 5/16-18 HEX HD GD5, BLK ZN

$17.99

$

Usually ships in 3-10 days

0

13

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

14

Dixon 510422701

RHSNB 5/16-18 X 2-1/2 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

15

Dixon 522756804

PAN, SEAT, BLUE
(Superseded to 525811504)

$122.99

$

Usually ships in 3-10 days

0

16

Dixon 539990645

RHSNB 3/8C X 1

$

$

Not available

17

Dixon 539118102

CLIP-1.06

$7.49

$

Usually ships in 3-10 days

0

18

Dixon 539128796

SEAT SLIDE (SET)

$46.99

$

Usually ships in 3-10 days

0

19

Dixon 539115789

WASHER NYLON

$3.99

$

Usually ships in 3-10 days

0

20

Dixon 539122381

SEAT BOTTOM

$

$

Not available

21

Dixon 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

22

Dixon 539115682

5/16-18X1-1/2 HHB GR5WNY

$4.99

$

Usually ships in 3-10 days

0

25

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

26

Dixon 539115566

5/16-18X1 HHB G5W/NY
(Superseded to 874950516)

$

$

Not available

27

Dixon 539117398

SEAT SWITCH MILSCO

$34.99

$

Usually ships in 3-10 days

0

28

Dixon 539108388

SCR 1/4-20X3/4 SLTD RDHD GR2ZD

$2.49

$

Usually ships in 3-10 days

0

29

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

30

Dixon 539103247

SEAT LANYARD

$21.99

$

In Stock, only 2 left!

0

31

Dixon 539122380

SEAT BACK

$

$

Not available
