Ram 48 ZT BF (966495401) - Dixon 48" Ram Zero-Turn Mower (2009-09) CHASSIS / FRAME Parts Diagram

48" Ram Zero-Turn Mower

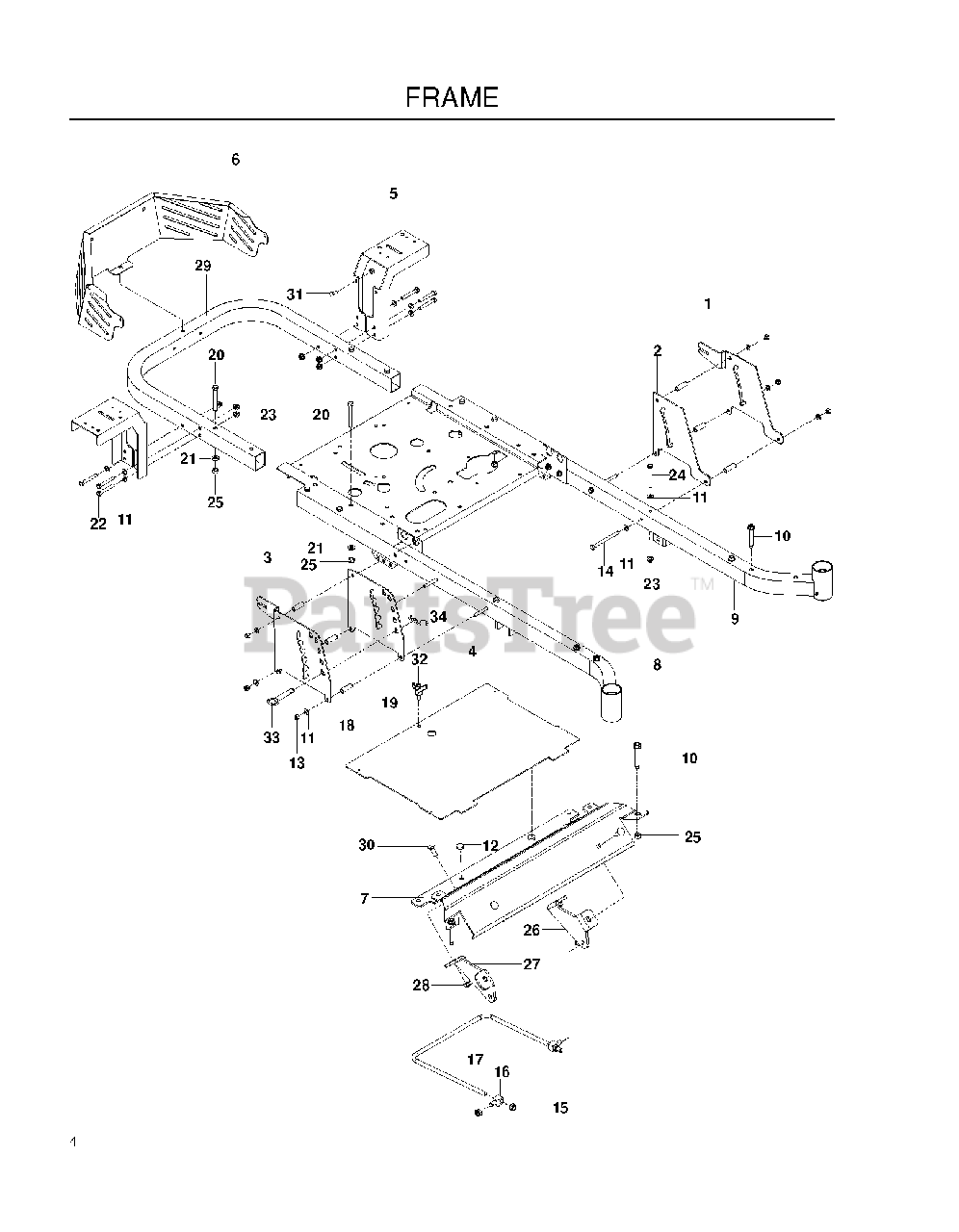

CHASSIS / FRAME Parts Diagram

  • Title

1

Dixon 521984902

PLATE, OUTER BRAKE, BLACK

$121.99

$

Usually ships in 3-10 days

0

2

Dixon 510206703

PLATE, BRAKE LATCH, BLACK

$48.99

$

Usually ships in 3-10 days

0

3

Dixon TBD

TBD

$

$

Not available

4

Dixon 522842903

PLATE, FOOT W/DECALS KZ

$132.99

$

Usually ships in 3-10 days

0

5

Dixon 510225902

SUPPORT, FENDER, BLACK

$78.99

$

Usually ships in 3-10 days

0

6

Dixon 516023302

GUARD, REAR, BLUE

$121.99

$

Usually ships in 3-10 days

0

7

Dixon 522740702

FOOT REST, WIDE, BLUE

$145.99

$

Usually ships in 3-10 days

0

8

Dixon 510177504

FRAME, RT, BLUE

Note: RT

$91.99

$

Usually ships in 3-10 days

0

9

Dixon 510177404

FRAME, LT, BLUE

Note: LT

$91.99

$

Usually ships in 3-10 days

0

10

Dixon 539111976

ENGINE BOLT, SPECIAL

$3.99

$

Usually ships in 3-10 days

0

11

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

12

Dixon 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

13

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

14

Dixon 539102335

HCS 5/16C X 4

$3.99

$

Usually ships in 3-10 days

0

15

Dixon 539119124

7/16-14 HEX NUT W/NYL RING ZD

$

$

Not available

16

Dixon 539114789

SWIVEL

$17.99

$

In Stock, only 2 left!

0

17

Dixon 521938101

LINK, FRONT SUSP.

$

$

Not available

18

Dixon 515988101

SPACER, .334 ID X .5 OD X 1.5
(Superseded to 580486101)

$

$

Not available

19

Dixon 510240502

PLATE, DECK HEIGHT, BLACK

$21.99

$

Usually ships in 3-10 days

0

20

Dixon 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 12

0

21

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

22

Dixon 539976938

CAPSCREW

$4.99

$

In Stock, only 2 left!

0

23

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

24

Dixon 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 7

0

25

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

26

Dixon 522443302

MOUNT, STRUT, RT, BLK

$34.99

$

Usually ships in 3-10 days

0

27

Dixon 522443304

MOUNT, STRUT, LT, BLK

$398.99

$

Usually ships in 3-10 days

0

28

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

29

Dixon 516001804

FRAME TUBE, REAR BLUE

$157.99

$

Usually ships in 3-10 days

0

30

Dixon 539990645

RHSNB 3/8C X 1

$

$

Not available

31

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

32

Dixon 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

33

Dixon 539102526

HITCH PIN

$21.99

$

Usually ships in 3-10 days

0

34

Dixon 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0
