Ram 44 - Dixon 44" Ram Zero-Turn Mower (2005) MOWER DECK Parts Diagram

44" Ram Zero-Turn Mower

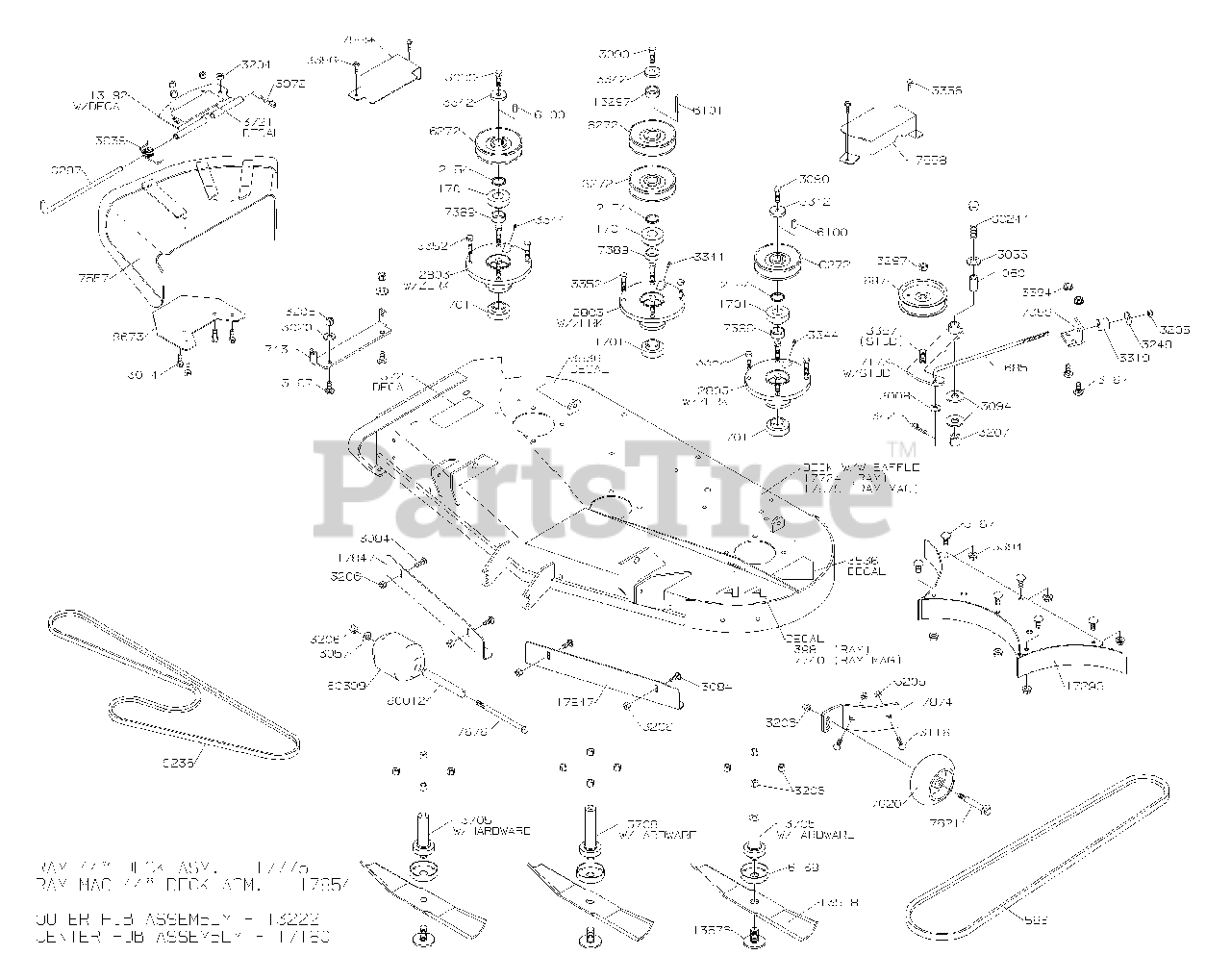

MOWER DECK Parts Diagram

  • Title

1080

1080

BUSHING

$

$

Not available

1685

1685

L-ROD

$

$

Not available

1687

1687

PULLEY IDLER

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

2154

2154

HUB PULLEY SPACER

$

$

Not available

2803

2803

HUB W/ZERK KIT

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3084

3084

3/8-16X3/4 CARR BOLT

$

$

Not available

3090

3090

1/2-20UNFX1 1/4HHBLT

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3319

3319

IDLER SHOCK MOUNT

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3352

3352

HCS 3/8C X 1 1/4

$

$

Not available

3356

3356

SCREW, TAP & DR #12-14 X 3/4

$

$

Not available

3357

3357

IDLER STUD

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3421

3421

COTTER HP .08DIAX1.19

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

3938

3938

DEFLECTOR SPRING

$

$

Not available

5861

5861

BELT

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6101

6101

CENTER SHAFT KEY

$

$

Not available

6168

6168

TRASH GUARD

$

$

Not available

6272

6272

V-PULLEY

$

$

Not available

6297

6297

DEFLECTOR PIN

$

$

Not available

7359

7359

ROD MOUNT

$

$

Not available

7389

7389

SPACER

$

$

Not available

9236

9236

SERP BELT B-90

$

$

Not available

9673

9673

DEFLECTOR BRKT

$

$

Not available

13182

13182

DEFLECTOR MT BRKT

$

$

Not available

13222

13222

OUTER HUB ASM 50`(4500)

$

$

Not available

13297

13297

HUB BEARING SPACER

$

$

Not available

13576

13576

BLADE BOLT

$

$

Not available

13705

13705

SHAFT 42 S

$

$

Not available

13708

13708

SHAFT 50 S

$

$

Not available

13918

13918

BLD 44" HI LIFT FUS

$

$

Not available

13981

13981

DECAL, DECK 44"

$

$

Not available

17173

17173

IDLER ARM W/STUD

$

$

Not available

17180

17180

CENTER HUB ASM

$

$

Not available

17296

17296

44 W-BAFFLE WLDT.

$

$

Not available

17431

17431

HINGE

$

$

Not available

17557

17557

44 DEFLECTOR

$

$

Not available

17558

17558

PULLEY GUARD

$

$

Not available

17559

17559

PULLEY GUARD

$

$

Not available

17620

17620

GUAGE WHEEL

$

$

Not available

17621

17621

SHOULDER BOLT

$

$

Not available

17676

17676

BOLT 3/8 X 6 GR5

$

$

Not available

17724

17724

DECK W/W BAFFLE

$

$

Not available

17740

17740

DECAL, MAG 44"

$

$

Not available

17775

17775

MOWER DECK ASM. 44`

$

$

Not available

17847

17847

BLOW-BY BAFFLE

$

$

Not available

17854

17854

DECK ASM 44` MAG

$

$

Not available

17874

17874

ROLLER BRKT.

$

$

Not available

17979

17979

DECK W/W BAFFLE

$

$

Not available

60012

60012

BUSHING

$

$

Not available

60244

60244

CAPSCREW 1/2-13X2-3/4

$

$

Not available

60309

60309

ROLLER 3-3/4 DIA. X 4-1

$

$

Not available
