Ram 42 - Dixon 42" Ram Zero-Turn Mower (2006) CHASSIS Parts Diagram

42" Ram Zero-Turn Mower

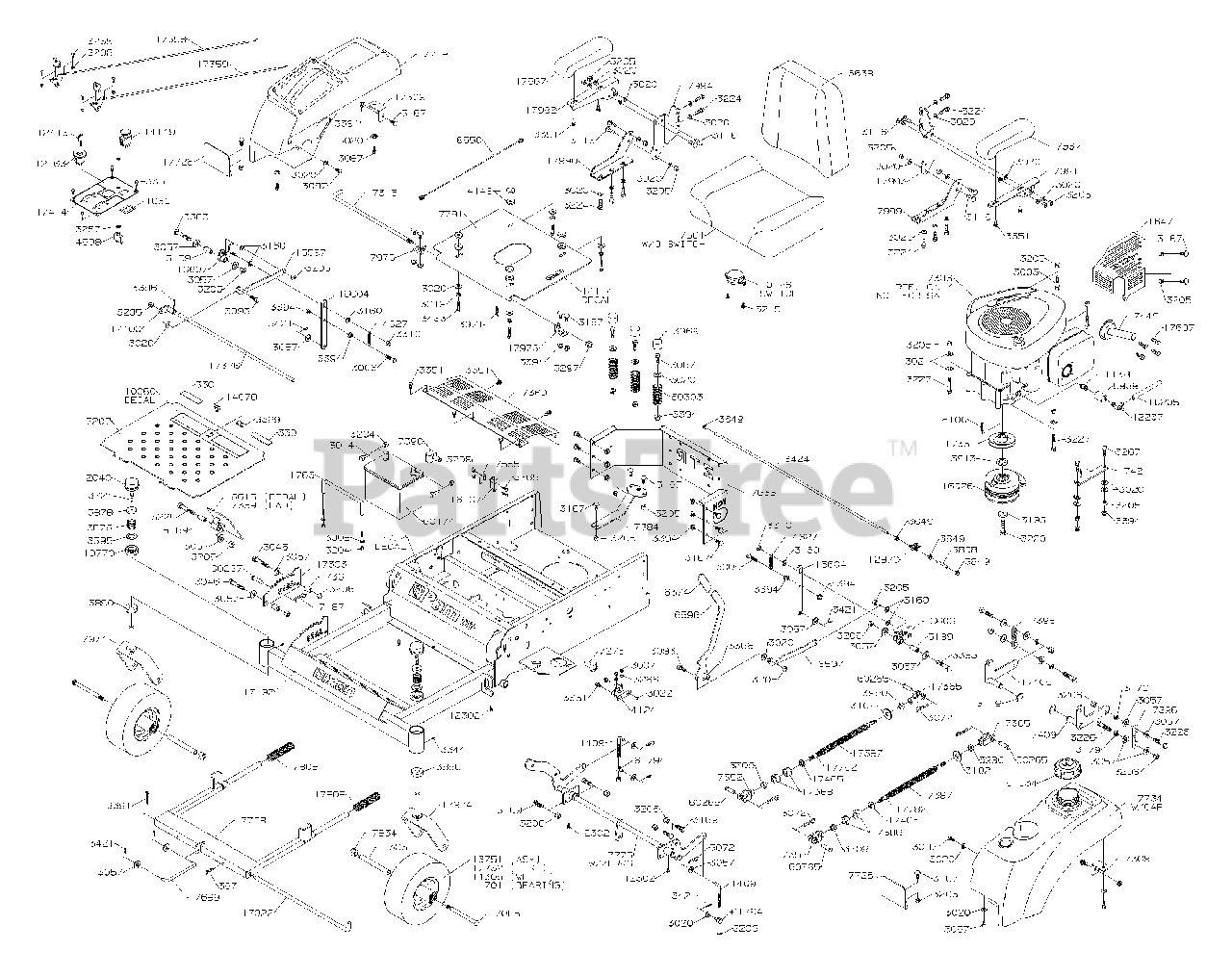

CHASSIS Parts Diagram

  • Title

1060

1060

$

$

Not available

1409

1409

L ROD 3-7/8

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1763

1763

TIE DOWN W/INSULATOR

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3022

3022

WASHER 1/4 EXTLW STAR ZD

$

$

Not available

3046

3046

3/8-16UNCX2 HH BLT

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3102

3102

5/8 STD FLATWASHER

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3119

3119

RET.RING TRU ARC W75

$

$

Not available

3160

3160

5/16STD FL WASH TYPA

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3169

3169

R/B HCS 3/8-16 X 1 GR 5 ZD

$

$

Not available

3179

Dixon 3179

3/8-16 HEX JAM NUT

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3209

3209

1/2-20 HEX JAM NUT

$

$

Not available

3215

3215

1/4-20X3/4RD HD SCR

$

$

Not available

3220

3220

7/16-20X2-3/4 HHB G5

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3225

3225

3/8-16X2-1/4 HHB GR5

$

$

Not available

3226

3226

3/8-16X1-3/4 HHB GR5

$

$

Not available

3227

3227

5/16-18X2 HHB GR5

$

$

Not available

3235

3235

#10-24X5/8PHIL PANHD

$

$

Not available

3257

3257

7/16 INT TOOTH LWASH

$

$

Not available

3265

3265

10-24X3/4TRUSS HD PH

$

$

Not available

3266

3266

1/4" INT TOOTH L.W.

$

$

Not available

3267

3267

5/16-18X1-1/2 HHB G5

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3301

3301

FOAM PAD 1/8X1X4

$

$

Not available

3310

3310

5/16-18 THIN PROF NY

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3369

3369

1/4-20 U NUT

$

$

Not available

3383

3383

3/8-16X2-1/4 CAR BLT

$

$

Not available

3386

3386

ROLL PIN 3/16 X1-1/4

$

$

Not available

3391

3391

1/8DIAX1-1/2 COT PIN

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3395

Dixon 3395

R/B 3395 WASHER-1.033X1.5X.06

$

$

Not available

3421

3421

COTTER HP .08DIAX1.19

$

$

Not available

3424

3424

HOSE 1/4 X 44

$

$

Not available

3433

3433

5/16-18X1-1/2 HHB GR5WNY

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3808

3808

HOSE 1/4 X 5.5

$

$

Not available

3876

Dixon 3876

WASHER, PLAIN .632 X 1.38 X .046

$

$

Not available

3878

3878

$

$

Not available

3890

Dixon 3890

BEARING

$

$

Not available

3913

3913

SPACER .25

$

$

Not available

3971

3971

LINK RETAINER

$

$

Not available

3980

Dixon 3980

1/2-20 LH HEX JAM NUT

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4146

4146

WASHER NYLON

$

$

Not available

4598

4598

CIRCUIT BREAKER W58XB1A4A15

$

$

Not available

4627

4627

$

$

Not available

5189

5189

BUSHING

$

$

Not available

5838

5838

FEMALE COUPLING

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

7275

7275

TERMINAL COVER-SM

$

$

Not available

10060

10060

DECAL, OPERATING INST.

$

$

Not available

10126

10126

R/B 10126 SEAT SWITCH

$

$

Not available

10205

10205

OIL DRAIN HOSE

$

$

Not available

10770

10770

BUSHING, CASTER

$

$

Not available

11138

11138

NIPPLE

$

$

Not available

12040

12040

DUST CAP

$

$

Not available

12163

12163

IGNITION SWITCH

$

$

Not available

12237

12237

3/8X2 GALV PIPE NIPP

$

$

Not available

12302

12302

GREASE ZERK-1/4"

$

$

Not available

12413

12413

KEY MOLDED

$

$

Not available

12870

12870

SHUT OFF VALVE

$

$

Not available

13751

13751

WHEEL/TIRE ASM.

$

$

Not available

13969

13969

$

$

Not available

14078

14078

1/4 X 20 X 1 WING BOLT

$

$

Not available

14114

14114

DECAL, PARK BRAKE

$

$

Not available

14149

14149

CLUTCH SWITCH

$

$

Not available

14303

14303

SPACER

$

$

Not available

14305

14305

FRONT WHEEL

$

$

Not available

14627

14627

SPRING

$

$

Not available

16026

16026

ELEC. CLUTCH

$

$

Not available

16107

16107

SWITCH

$

$

Not available

16374

16374

GRIP BRAKE HANDLE

$

$

Not available

16471

16471

HEAT SHEILD MUFFLER

$

$

Not available

16550

16550

$

$

Not available

16597

16597

BRAKE LINK

$

$

Not available

16598

16598

BRAKE HANDLE DRILL

$

$

Not available

16604

16604

BRAKE SLIDE ARM

$

$

Not available

16606

16606

BRAKE PIVOT WLDT. LH

$

$

Not available

16607

16607

BRAKE PIVOT WLDT. RH

$

$

Not available

16615

16615

FOOT PEDAL (PLATED)

$

$

Not available

16638

16638

SEAT BACK

$

$

Not available

17022

17022

HANGER ROD

$

$

Not available

17085

17085

RHSNB 1/2-13 X 6.50 GR5 ZD

$

$

Not available

17187

17187

STAINLESS COTTER

$

$

Not available

17192

17192

RAM FRAME WLDT 2006

$

$

Not available

17207

17207

$

$

Not available

17275

17275

LIFT SHAFT W/ZERKS

$

$

Not available

17303

17303

QUADRANT (PLATED)

$

$

Not available

17306

17306

$

$

Not available

17309

17309

TANK BRKT.

$

$

Not available

17315

17315

SEAT PIN

$

$

Not available

17351

17351

DRIVE PULLEY-ENGINE

$

$

Not available

17352

17352

CLEVIS FEMALE-RH

$

$

Not available

17358

17358

CHOKE CABLE

$

$

Not available

17359

17359

THROTTLE CABLE

$

$

Not available

17360

17360

FAN GUARD

$

$

Not available

17361

17361

SPACER

$

$

Not available

17365

17365

CLEVIS FEMALE-LH

$

$

Not available

17369

17369

$

$

Not available

17376

17376

BRAKE ROD

$

$

Not available

17384

17384

BRACE

$

$

Not available

17387

17387

LIFT SPRING

$

$

Not available

17388

17388

5/8-11 HEX JAM NUT

$

$

Not available

17390

17390

TERMINAL COVER

$

$

Not available

17396

17396

CHAIN

$

$

Not available

17400

17400

BRAKE ARM DRILLED

$

$

Not available

17405

17405

WASHER PLATED

$

$

Not available

17408

17408

REAR LIFT RH (PLATED)

$

$

Not available

17409

17409

REAR LIFT LH (PLATED)

$

$

Not available

17414

17414

CONTROL PANEL

$

$

Not available

17421

17421

CLUTCH STOP

$

$

Not available

17449

17449

MUFFLER EXT.(PAINTED)

$

$

Not available

17555

17555

TAB SWITCH SPACER

$

$

Not available

17561

17561

CORDURA SEAT CUSHION

$

$

Not available

17567

17567

POLYURETHANE ARMREST

$

$

Not available

17689

17689

LIFT LINK

$

$

Not available

17697

17697

10-16 X 3/4 HWH TAP SCR

$

$

Not available

17718

17718

FENDER-RH

$

$

Not available

17726

17726

BRKT, HEADLIGHT PLUG, BLK

$

$

Not available

17732

17732

TIRE

$

$

Not available

17734

17734

TANK W/CAP

$

$

Not available

17768

17768

LIFT FRAME WLDT.

$

$

Not available

17782

17782

TIE BAR

$

$

Not available

17791

17791

$

$

Not available

17792

17792

DECAL, RAM (17792)

$

$

Not available

17808

17808

SPRING

$

$

Not available

17834

17834

NUT, HEX 1/2-13 W/NYLOK

$

$

Not available

17836

17836

REAR CHANNEL

$

$

Not available

17974

17974

CASTER

$

$

Not available

17976

17976

SEAT PIVOT

$

$

Not available

17989

17989

SEAT BOT.BRKT. LH

$

$

Not available

17990

17990

SEAT BOT.BRKT. RH

$

$

Not available

17991

17991

ARM REST BRACKET LH

$

$

Not available

17992

17992

ARM REST BRACKET RH

$

$

Not available

17993

17993

SEAT BACK BRKT. LH

$

$

Not available

17994

17994

SEAT BACK BRKT. RH

$

$

Not available

60265

60265

CLEVIS PIN 1/2X1-1/2` L

$

$

Not available

60267

60267

CLEVIS PIN 1/2X2`LG.

$

$

Not available

60303

60303

SEAT SPRING

$

$

Not available

60474

Dixon 60474

BATTERY

$

$

Not available

61534

61534

GASOLINE CAP

$

$

Not available

61794

61794

SWIVEL

$

$

Not available
