Raider - Bad Boy Walk-Behind Mower (2025) UPPER FRAME Parts Diagram

Walk-Behind Mower

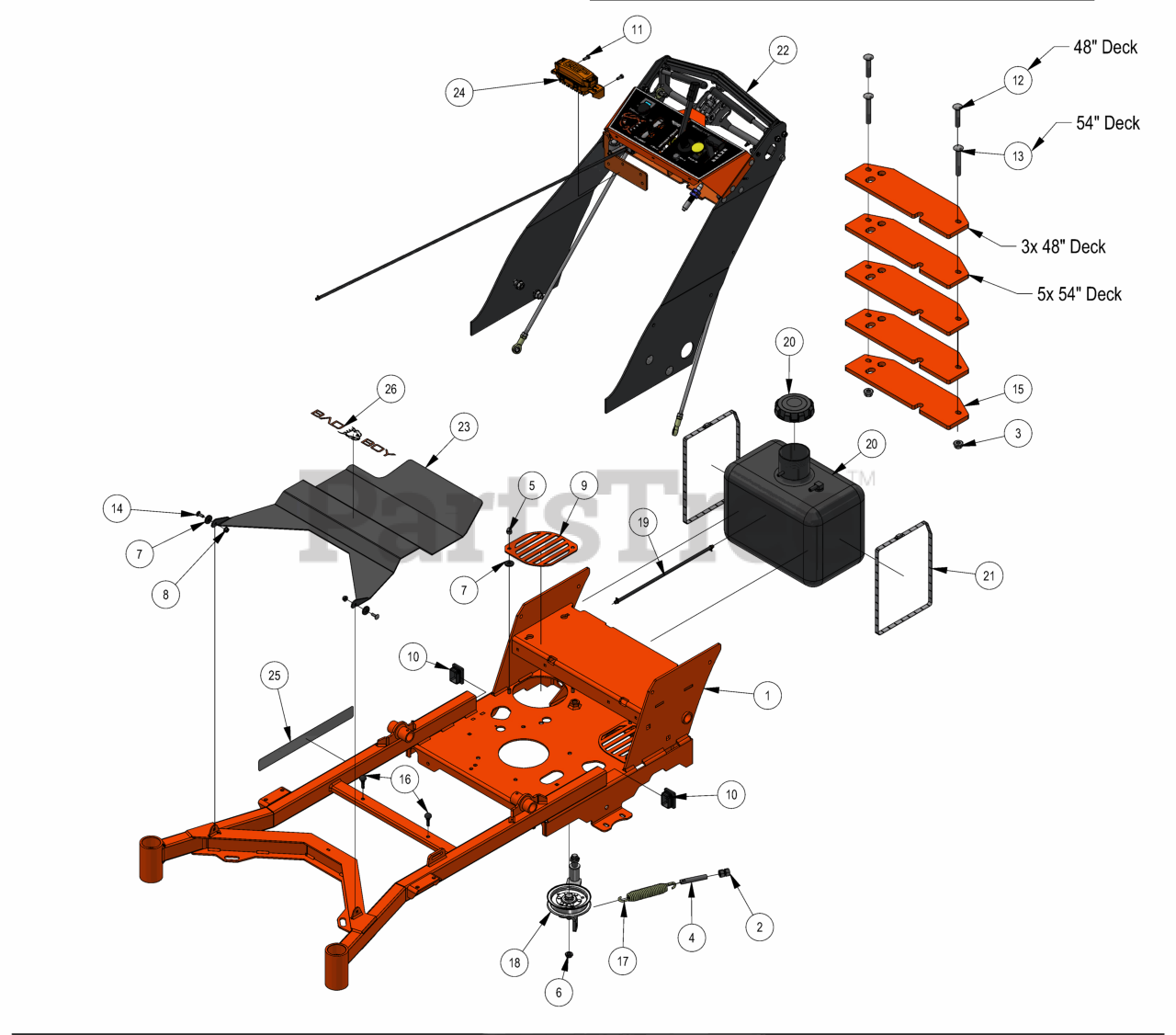

UPPER FRAME Parts Diagram

  • Title

1

Bad Boy 070-5102-00

2023 Walk Frame

$

$

Not available

2

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

3

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

4

Bad Boy 018-2004-50

All Thread

$13.99

$

In Stock, Qty 6

0

5

Bad Boy 013-0004-00

5/16-18 ACORN NUT HIGH-CROWN ZC

$3.49

$

In Stock, Qty 8

0

6

Bad Boy 018-4010-00

1/2-13 NYLON INSERT JAM LOCKNUT ZINC

$1.99

$

In Stock, Qty 11

0

7

Bad Boy 019-6050-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON BLACK

$0.99

$

In Stock, Qty 6

0

8

Bad Boy 013-2050-00

1/4-20 NYL INSERT FLANGE LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

9

Bad Boy 014-3580-00

Walk Behind Bolt on Fan Cover

$11.99

$

Usually ships in 4-7 days

0

10

Bad Boy 014-9002-00

1 1/2 X 2 Plug For .120 Tubing

$

$

Currently unavailable

11

Bad Boy 018-0024-00

M6-1.0 X 16MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

In Stock, Qty 8

0

12

Bad Boy 018-0043-00

2 1/2 x 1/2 Carriage Bolt

$3.49

$

Usually ships in 4-7 days

0

13

Bad Boy 018-0052-00

1/2-13 X 3-1/2 CARRIAGE BOLT (GR.5) ZINC

$

$

Currently unavailable

14

Bad Boy 019-8040-00

1/4-20 X 3/4 CARRIAGE BOLT (GR.5) ZINC

$1.99

$

In Stock, only 3 left!

0

15

Bad Boy 026-0172-00

2020 Walk Weight Plate

$

$

Currently unavailable

16

Bad Boy 029-4011-00

2023 Floor Board Rubber Bumper

$1.49

$

Usually ships in 4-7 days

0

17

Bad Boy 034-2009-00

2009 Deck/Pump Idler Spring

$19.99

$

In Stock, Qty 18

0

18

Bad Boy 039-5944-01

ZT Pump Idler

$66.99

$

In Stock, only 2 left!

0

19

Bad Boy 051-8067-15

15" Revolt Fuel Line Assembly

$9.49

$

Usually ships in 0 days

0

20

Bad Boy 067-0003-00

5 Gal Black Gas Tank w/gauge

$331.99

$

Usually ships in 4-7 days

0

21

Bad Boy 072-0051-00

Tank Strap

$12.99

$

In Stock, only 2 left!

0

22

Bad Boy 079-0036-23

23WB Podium Assembly

$592.99

$

Usually ships in 0 days

0

23

Bad Boy 079-0040-00

2023 WB V2 Floorboard

$91.99

$

Usually ships in 4-7 days

0

24

Bad Boy 086-0008-20

2020 Electric Start Walk Behind Harness

$

$

Not available

25

Bad Boy 091-3150-00

Outlaw Warning Decal

$11.99

$

In Stock, only 2 left!

0

26

Bad Boy 091-6068-LE

Flying Bulldog Front Bumper Decal

$

$

Not available
