Raider - Bad Boy Walk-Behind Mower (2025) TRANSAXLE Parts Diagram

Walk-Behind Mower

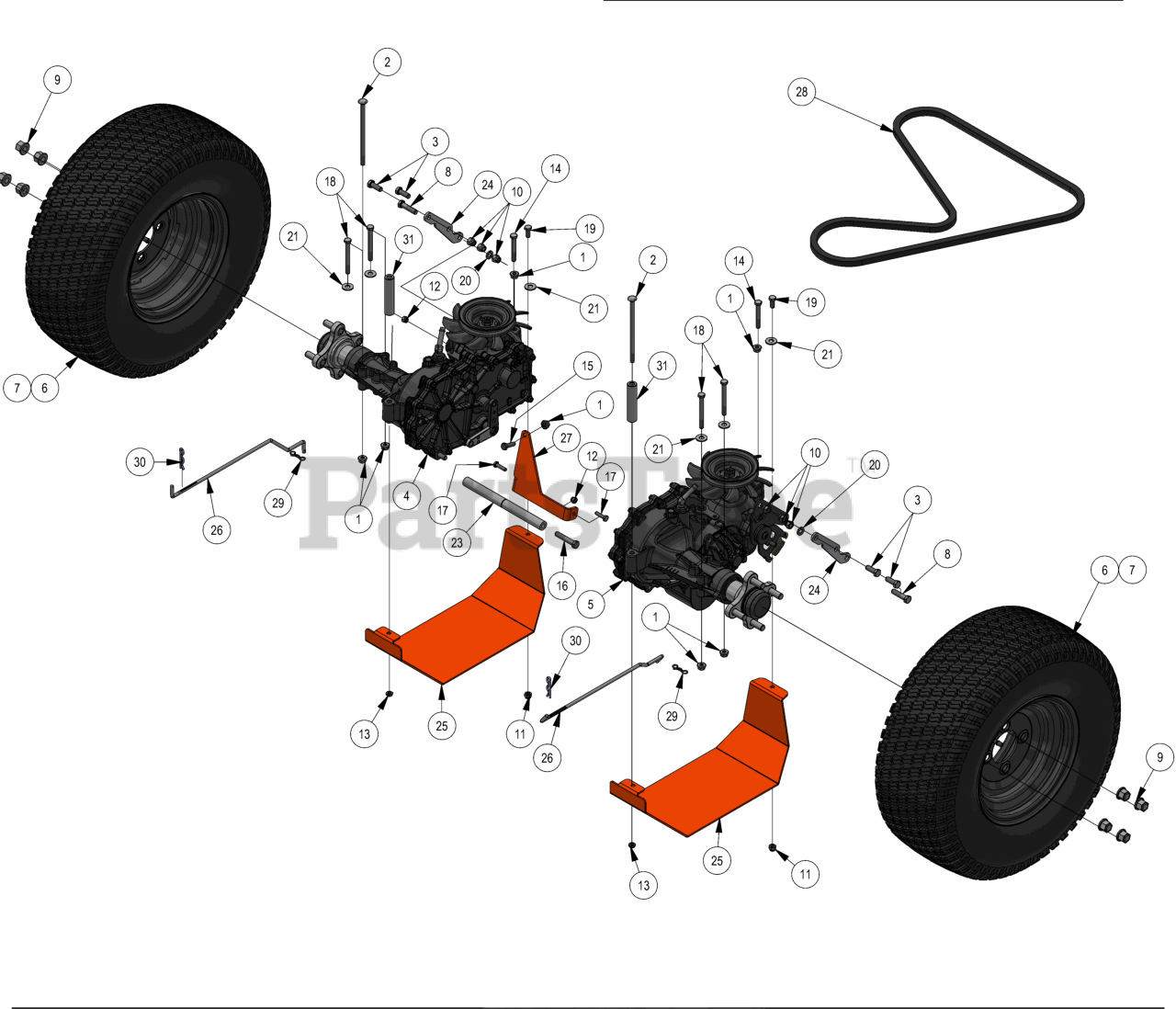

TRANSAXLE Parts Diagram

  • Title

1

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

2

Bad Boy 018-0056-00

5/16-18 X 6 CARRIAGE BOLT (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

3

Bad Boy 018-6049-00

3/8-16 X 1 GR 5 Hex Bolts Zinc

$0.99

$

In Stock, Qty 13

0

4

Bad Boy 050-0004-02

Walk Behind Transaxle Right 3100

$

$

Currently unavailable

5

Bad Boy 050-0003-02

Walk Behind Transaxle Left 3100

$

$

Currently unavailable

6

Bad Boy 022-2500-25

Reaper Tire Assembly (21 x 8.5 - 10)

$

$

Currently unavailable

7

Bad Boy 022-8019-25

Reaper Tire Assembly (21x7-10)

$

$

Not available

8

Bad Boy 018-6012-00

3/8-16 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 20+

0

9

Bad Boy 013-3000-00

Acorn Lug Nut

$3.49

$

In Stock, Qty 20+

0

10

Bad Boy 013-5041-00

3/8-16 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 013-8047-00

5/16-18 NYL INS L/N ZC

$0.99

$

In Stock, only 4 left!

0

12

Bad Boy 013-8073-00

1/4-20 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

13

Bad Boy 013-9005-00

5/16-18 NYLON INSERT JAM LOCKNUT ZINC

$3.49

$

Usually ships in 4-7 days

0

14

Bad Boy 018-0023-00

5/16-18 X 2-1/4 HEX CAP SCREW (GR.5) ZINC

$

$

Not available

15

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 1 left!

0

16

Bad Boy 018-3000-00

3/8-16 X 2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

In Stock, Qty 8

0

17

Bad Boy 018-4007-00

1/4-20 X 1 HEX CAP SCREW (GR.5) ZINC

$1.49

$

Usually ships in 4-7 days

0

18

Bad Boy 018-4701-00

5/16-18 X 3 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

19

Bad Boy 018-8063-00

5/16-18 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

20

Bad Boy 019-5037-00

3/8 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, Qty 11

0

21

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

23

Bad Boy 025-0018-00

2017 Transaxle Spacer-Walker

$12.99

$

Usually ships in 4-7 days

0

24

Bad Boy 026-0173-00

2020 Walk-Behind Hydro Plate Extension

$

$

Not available

25

Bad Boy 026-3441-00

2020 Walk Trans Skid Plate

$56.99

$

Usually ships in 4-7 days

0

26

Bad Boy 028-0075-00

2023 Walk Neutral Rod 5.9

$

$

Currently unavailable

27

Bad Boy 039-1917-00

Walk Brake Pull Bracket-Painted

$

$

Not available

28

Bad Boy 041-8053-00

2020 Walk-Behind Pump Belt

$62.99

$

Usually ships in 4-7 days

0

29

Bad Boy 044-2004-00

Bow Pin

$0.99

$

Usually ships in 4-7 days

0

30

Bad Boy 044-2008-00

Neutral Rod Clip

$1.49

$

In Stock, only 2 left!

0

31

Bad Boy 025-0070-00

2017 Transaxle Spacer

$6.99

$

In Stock, only 2 left!

0
