Raider - Bad Boy Walk-Behind Mower (2025) PODIUM CONTROL PANEL Parts Diagram

Walk-Behind Mower

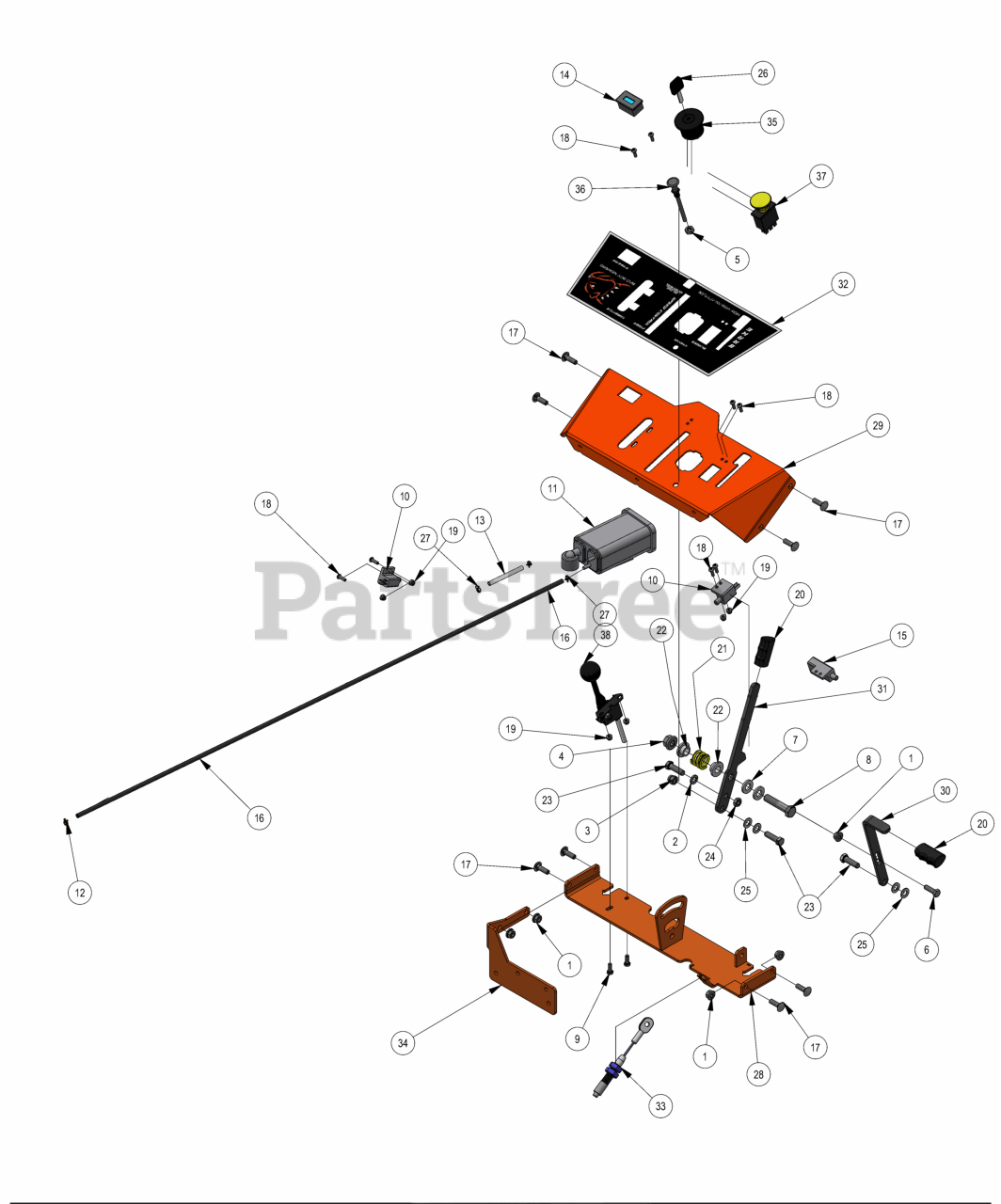

PODIUM CONTROL PANEL Parts Diagram

  • Title

1

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

2

Bad Boy 019-5037-00

3/8 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, Qty 11

0

3

Bad Boy 013-5041-00

3/8-16 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

4

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

5

Bad Boy 013-6051-00

3/8-24 HEX NUT ZINC YELLOW

$0.99

$

In Stock, Qty 20+

0

6

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 5

0

7

Bad Boy 019-8054-00

.505 ID X 1.000 OD X .125 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 10

0

8

Bad Boy 018-6037-00

1/2-13 X 2-1/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

Usually ships in 4-7 days

0

9

Bad Boy 018-0024-00

M6-1.0 X 16MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

In Stock, Qty 8

0

10

Bad Boy 077-0002-00

safety Switch

$24.99

$

In Stock, only 2 left!

0

11

Bad Boy 067-0015-00

Carbon Canister for Magnum/MZ

$49.99

$

Usually ships in 4-7 days

0

12

Bad Boy 072-8073-00

3/16" Vinyl Hose Clamp

$3.49

$

Usually ships in 4-7 days

0

13

Bad Boy 051-2027-00

3/16" Clear Vinyl Tubing

$1.49

$

Usually ships in 4-7 days

0

14

Bad Boy 083-4013-00

Tachometer

$79.99

$

In Stock, Qty 20+

0

15

Bad Boy 077-0001-00

Brake switch 4 prong

$24.99

$

Usually ships in 4-7 days

0

16

Bad Boy 051-2023-02

3/16 Vinyl Tubing, 44"

$13.99

$

Usually ships in 4-7 days

0

17

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

18

Bad Boy 018-5200-00

10-24 X 5/8 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$0.99

$

In Stock, Qty 5

0

19

Bad Boy 013-5019-00

10-24 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

20

Bad Boy 069-7000-00

Rubber Brake Grip-cZT/ZT 2013

$6.99

$

In Stock, only 3 left!

0

21

Bad Boy 034-8025-00

Drive Lever Spring

$4.49

$

In Stock, only 2 left!

0

22

Bad Boy 019-8027-00

.525 ID SHOULDER WASHER NYLON

$0.99

$

Usually ships in 4-7 days

0

23

Bad Boy 018-5040-00

3/8-16 X 1-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 17

0

24

Bad Boy 013-0012-00

3/8-16 HEX JAM 2-WAY REVERSIBLE CENTER LOCKNUT ZINC

$3.49

$

In Stock, Qty 5

0

25

Bad Boy 019-2003-00

.390 ID X .750 OD X .062 THK FLAT WASHER NYLON

$0.99

$

Usually ships in 4-7 days

0

26

Bad Boy 042-9000-00

Ignition Key

$4.49

$

In Stock, Qty 20+

0

27

Bad Boy 072-0002-00

8.6mm Hose Clamp

$2.99

$

Usually ships in 4-7 days

0

28

Bad Boy 201-1171-00

2020 Walk Cross Support Weldment

$

$

Not available

29

Bad Boy 079-0035-00

2020 Walk Control Panel

$

$

Currently unavailable

30

Bad Boy 069-2020-00

Walk Brake Handle

$9.49

$

Usually ships in 4-7 days

0

31

Bad Boy 031-0036-00

Walk Behind Speed Control Lever

$11.99

$

Usually ships in 4-7 days

0

32

Bad Boy 091-4055-00

2020 Walkbehind Control Panel Decal

$14.99

$

Usually ships in 4-7 days

0

33

Bad Boy 064-3000-00

Brake Cable

$33.99

$

In Stock, Qty 9

0

34

Bad Boy 026-0227-00

2022 Walk Behind Relay Mount Plate - Painted

$

$

Currently unavailable

35

Bad Boy 077-8076-00

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

36

Bad Boy 054-8017-00

Choke

$27.99

$

In Stock, Qty 20+

0

37

Bad Boy 056-8058-00

PTO Switch

$36.99

$

In Stock, Qty 20+

0

38

Bad Boy 055-8020-00

Throttle Lever Assembly

$41.99

$

In Stock, Qty 20+

0
