Raider - Bad Boy Walk-Behind Mower (2025) FRAME SUB ASSEMBLIES Parts Diagram

Walk-Behind Mower

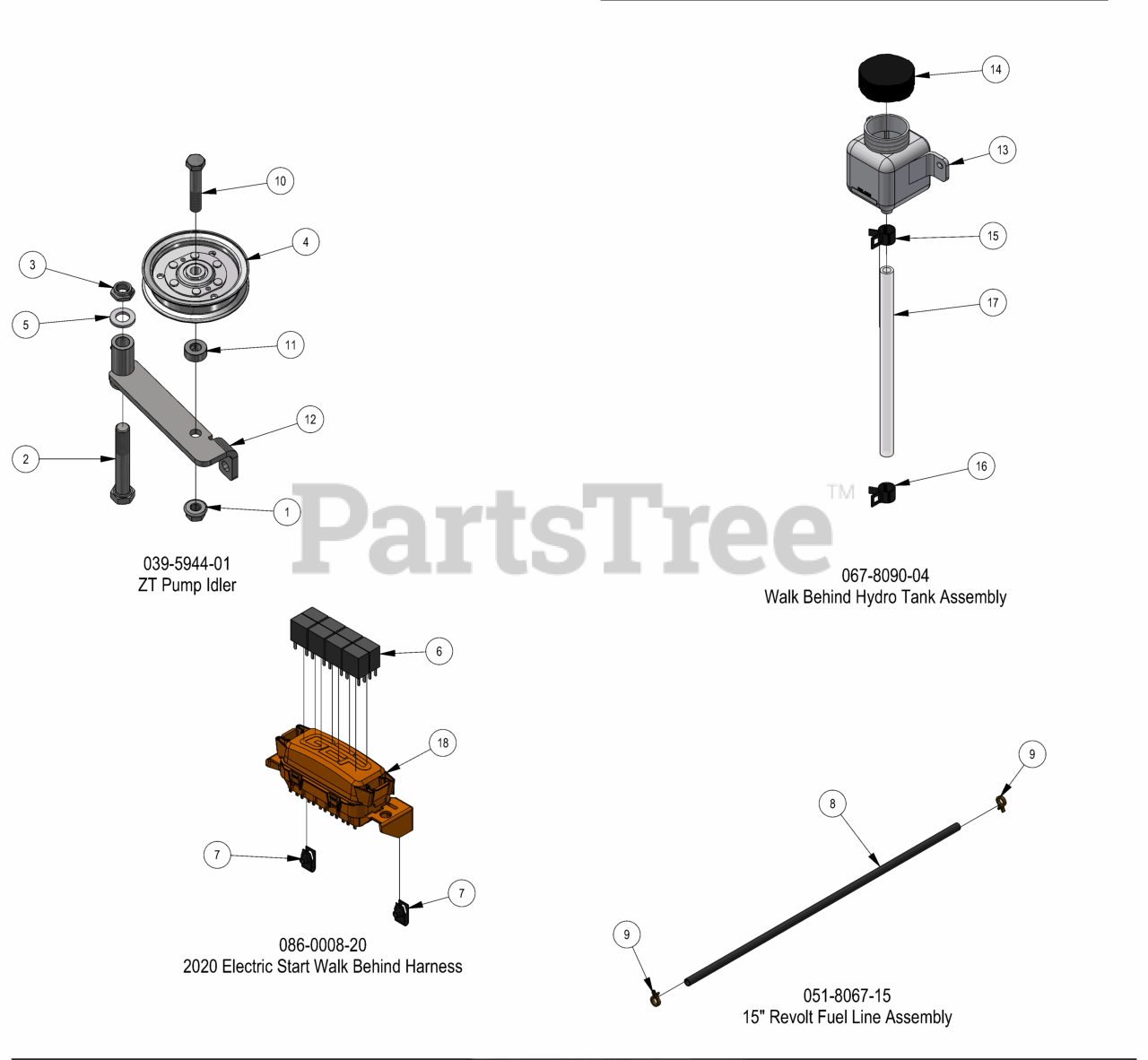

FRAME SUB ASSEMBLIES Parts Diagram

  • Title

1

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

2

Bad Boy 018-5311-00

5/8-11 X 4 HEX CAP SCREW (GR.8) ZINC YELLOW

$4.49

$

In Stock, Qty 8

0

3

Bad Boy 013-5301-00

5/8-11 NYLON INSERT JAM LOCKNUT ZINC

$0.99

$

In Stock, Qty 6

0

4

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

5

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

6

Bad Boy 086-1202-19

Relay

$26.99

$

In Stock, Qty 9

0

7

Bad Boy 013-0054-00

1/4-20 Cage Nut

$0.99

$

Usually ships in 4-7 days

0

8

Bad Boy 051-8067-00

1/4" Fuel Line Hose

$6.99

$

In Stock, only 3 left!

0

9

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

In Stock, only 2 left!

0

10

Bad Boy 018-6036-00

1/2-13 X 2-3/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

In Stock, only 4 left!

0

11

Bad Boy 025-7036-00

1/2 SOLID SHAFT COLLAR (W/1 SET SCREW) ZINC

$4.99

$

In Stock, only 2 left!

0

12

Bad Boy 039-5944-00

Pump Idler Bracket

$45.99

$

In Stock, only 3 left!

0

13

Bad Boy 067-8090-00

350ml Expansion Tank

$33.99

$

In Stock, Qty 9

0

14

Bad Boy 066-5050-00

Hydraulic Tank Cap

$16.99

$

In Stock, only 2 left!

0

15

Bad Boy 072-8065-00

3/8" Hose Clamp

$1.49

$

In Stock, only 2 left!

0

16

Bad Boy 072-8066-00

1/2 Hose Clamp

$0.99

$

Usually ships in 4-7 days

0

17

Bad Boy 051-8063-00

3/8" Clear Hose

$3.49

$

In Stock, Qty 10

0

18

Bad Boy 086-0008-20

2020 Electric Start Walk Behind Harness

$

$

Not available
