Raider - Bad Boy Walk-Behind Mower (2024) UPPER FRAME Parts Diagram

Walk-Behind Mower

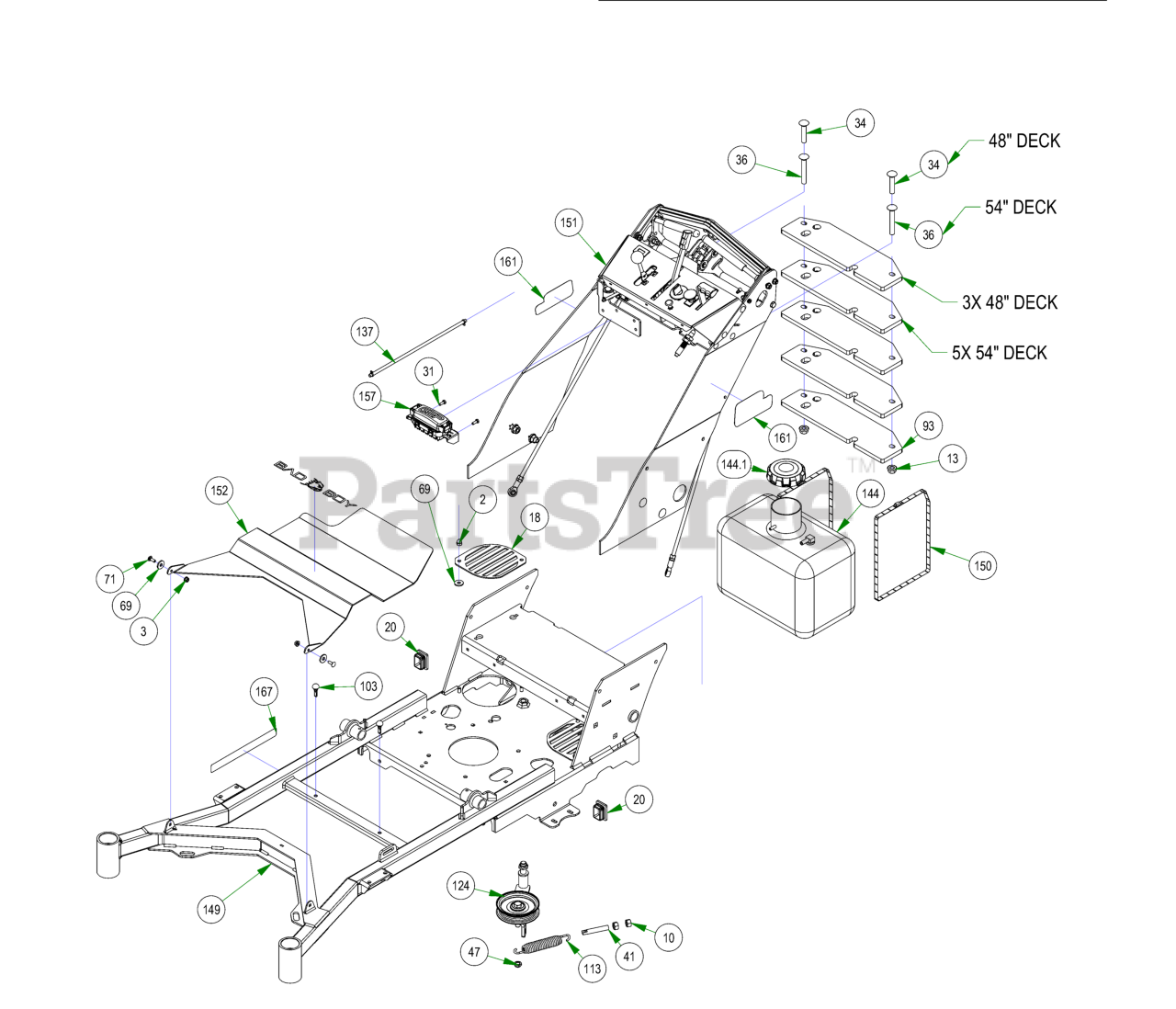

UPPER FRAME Parts Diagram

  • Title

2

Bad Boy 013-0004-00

5/16-18 ACORN NUT HIGH-CROWN ZC

$3.49

$

In Stock, Qty 8

0

3

Bad Boy 013-2050-00

1/4-20 NYL INSERT FLANGE LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

10

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

13

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

16

Bad Boy 013-9005-00

5/16-18 NYLON INSERT JAM LOCKNUT ZINC

$3.49

$

Usually ships in 4-7 days

0

18

Bad Boy 014-3580-00

Walk Behind Bolt on Fan Cover

$11.99

$

Usually ships in 4-7 days

0

20

Bad Boy 014-9002-00

1 1/2 X 2 Plug For .120 Tubing

$

$

Currently unavailable

31

Bad Boy 018-0024-00

M6-1.0 X 16MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

In Stock, Qty 8

0

34

Bad Boy 018-0043-00

2 1/2 x 1/2 Carriage Bolt

$3.49

$

Usually ships in 4-7 days

0

36

Bad Boy 018-0052-00

1/2-13 X 3-1/2 CARRIAGE BOLT (GR.5) ZINC

$

$

Currently unavailable

41

Bad Boy 018-2004-50

All Thread

$13.99

$

In Stock, Qty 6

0

47

Bad Boy 018-4010-00

1/2-13 NYLON INSERT JAM LOCKNUT ZINC

$1.99

$

In Stock, Qty 11

0

60

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

69

Bad Boy 019-6050-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON BLACK

$0.99

$

In Stock, Qty 6

0

71

Bad Boy 019-8040-00

1/4-20 X 3/4 CARRIAGE BOLT (GR.5) ZINC

$1.99

$

In Stock, only 3 left!

0

72

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

93

Bad Boy 026-0172-00

2020 Walk Weight Plate

$

$

Currently unavailable

103

Bad Boy 029-4011-00

2023 Floor Board Rubber Bumper

$1.49

$

Usually ships in 4-7 days

0

113

Bad Boy 034-2009-00

2009 Deck/Pump Idler Spring

$19.99

$

In Stock, Qty 18

0

124

Bad Boy 039-5944-01

ZT Pump Idler

$66.99

$

In Stock, only 2 left!

0

137

Bad Boy 051-8067-15

15" Revolt Fuel Line Assembly

$9.49

$

Usually ships in 0 days

0

144

Bad Boy 067-0003-00

5 Gal Black Gas Tank w/gauge

$331.99

$

Usually ships in 4-7 days

0

149

Bad Boy 070-5102-00

2023 Walk Frame

$

$

Not available

150

Bad Boy 072-0051-00

Tank Strap

$12.99

$

In Stock, only 2 left!

0

151

Bad Boy 079-0036-23

23WB Podium Assembly

$592.99

$

Usually ships in 0 days

0

152

Bad Boy 079-0040-00

2023 WB V2 Floorboard

$91.99

$

Usually ships in 4-7 days

0

157

Bad Boy 086-0008-20

2020 Electric Start Walk Behind Harness

$

$

Not available

161

Bad Boy 091-0412-18

2018 Walk Behind 603cc Back Plate Cluster

$18.99

$

Usually ships in 4-7 days

0

167

Bad Boy 091-3150-00

Outlaw Warning Decal

$11.99

$

In Stock, only 2 left!

0

169

Bad Boy 091-6068-LE

Flying Bulldog Front Bumper Decal

$

$

Not available

144.1

Bad Boy 066-8083-00

Fuel Cap

$25.99

$

In Stock, only 3 left!

0
