Raider - Bad Boy Walk-Behind Mower (2024) ENGINE Parts Diagram

Walk-Behind Mower

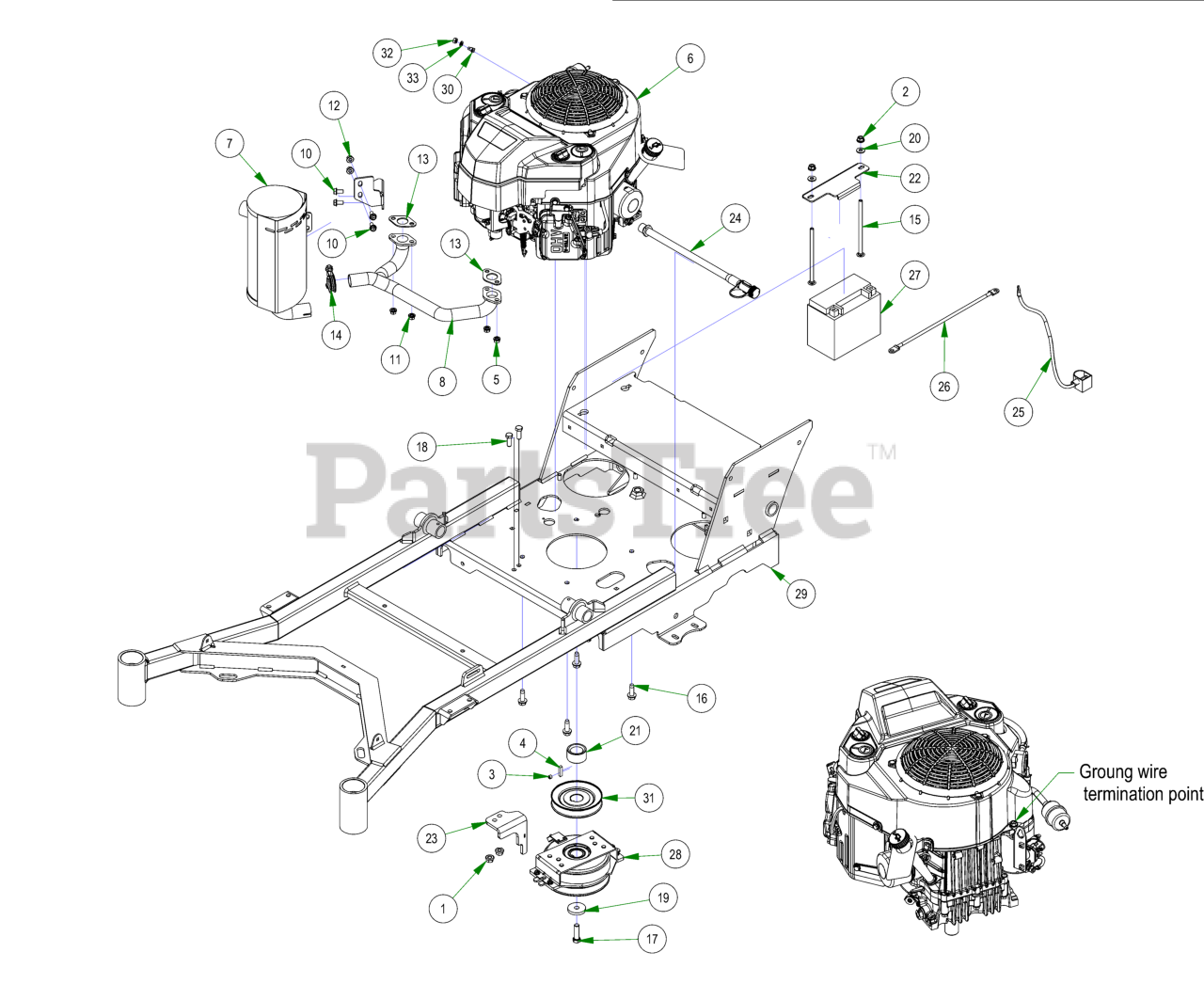

ENGINE Parts Diagram

  • Title

1

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

2

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

3

Bad Boy 030-0050-00

5/16-24 X 1/4 SOCKET SET SCREW (CUP PT) PLAIN

$1.99

$

In Stock, Qty 20+

0

4

Bad Boy 042-6030-00

1/4 X 1 SQ MACHINERY KEY 1018 STL PLN

$4.99

$

In Stock, Qty 20+

0

5

Bad Boy 013-0075-00

M8-1.25 Zinc Nut

$3.49

$

In Stock, only 2 left!

0

6

Bad Boy 015-0087-00

Kawasaki 18.5HP FS600 Electric Start

$

$

Not available

7

Bad Boy 015-0543-01

MUFFLER

$113.99

$

Usually ships in 0 days

0

8

Bad Boy 015-0543-02

Exhaust Pipe

$68.99

$

Usually ships in 0 days

0

9

Bad Boy 015-0543-03

Exhaust Bracket

$11.99

$

Usually ships in 0 days

0

10

Bad Boy 015-0543-04

Exhaust Flange Bolt

$2.49

$

Usually ships in 4-7 days

0

11

Bad Boy 015-0543-05

Exhaust Lock Washer

$1.49

$

Usually ships in 4-7 days

0

12

Bad Boy 015-0543-06

Exhaust Nut

$3.49

$

Usually ships in 4-7 days

0

13

Bad Boy 015-0543-07

Exhaust Gasket

$3.49

$

Usually ships in 0 days

0

14

Bad Boy 015-0543-08

Exhaust Clamp

$14.99

$

Usually ships in 0 days

0

15

Bad Boy 018-0056-00

5/16-18 X 6 CARRIAGE BOLT (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

16

Bad Boy 018-1075-00

3/8-16 X 1-1/8HEX WASHER UNSLOT SERRATED (TRI-LOB) TRS ZINC YELLOW

$1.99

$

In Stock, Qty 11

0

17

Bad Boy 018-5450-21

7/16-20 X 1-1/2 HEX CAP SCREW (GR.8) w/ Patch

$0.99

$

In Stock, only 2 left!

0

18

Bad Boy 018-6049-00

3/8-16 X 1 GR 5 Hex Bolts Zinc

$0.99

$

In Stock, Qty 13

0

19

Bad Boy 019-0010-00

CLUTCH WASHER

$6.49

$

In Stock, only 4 left!

0

20

Bad Boy 019-7040-00

1/4 USS FLAT WASHER (3/4 OD) ZINC

$0.99

$

In Stock, Qty 7

0

21

Bad Boy 025-5032-00

1.130 x 1.75 x 1 Spacer, Countersunk, Zinc

$13.99

$

Usually ships in 4-7 days

0

22

Bad Boy 026-0098-00

Battery Hold Down Plate - Revolt

$18.99

$

Usually ships in 4-7 days

0

23

Bad Boy 039-0246-00

warner mgn clutch bracket v23

$

$

Not available

24

Bad Boy 051-5404-00

Kawasaki Oil Drain

$45.99

$

In Stock, only 3 left!

0

25

Bad Boy 064-0030-00

24 inch Black Cable – MZ/ZT

$19.99

$

Usually ships in 4-7 days

0

26

Bad Boy 064-5301-00

12 in red battery cable

$18.99

$

In Stock, only 2 left!

0

27

Bad Boy 068-8051-00

Interstate FAYTX14 Battery

$

$

Not available

28

Bad Boy 070-0056-00

Clutch

$415.99

$

Usually ships in 4-7 days

0

29

Bad Boy 070-5102-00

2023 Walk Frame

$

$

Not available

30

Bad Boy 216-1053-00

Terminal 90 degree 6mm Spade

$

$

Currently unavailable

31

Bad Boy 033-5034-00

4 3/4" Motor Pulley

$37.99

$

Usually ships in 4-7 days

0

32

Bad Boy 216-1054-00

1/4-20 Hex Nut

$

$

Currently unavailable

33

Bad Boy 019-4008-00

1/4SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, Qty 6

0
