Raider - Bad Boy Walk-Behind Mower (2024) 54" DECK Parts Diagram

Walk-Behind Mower

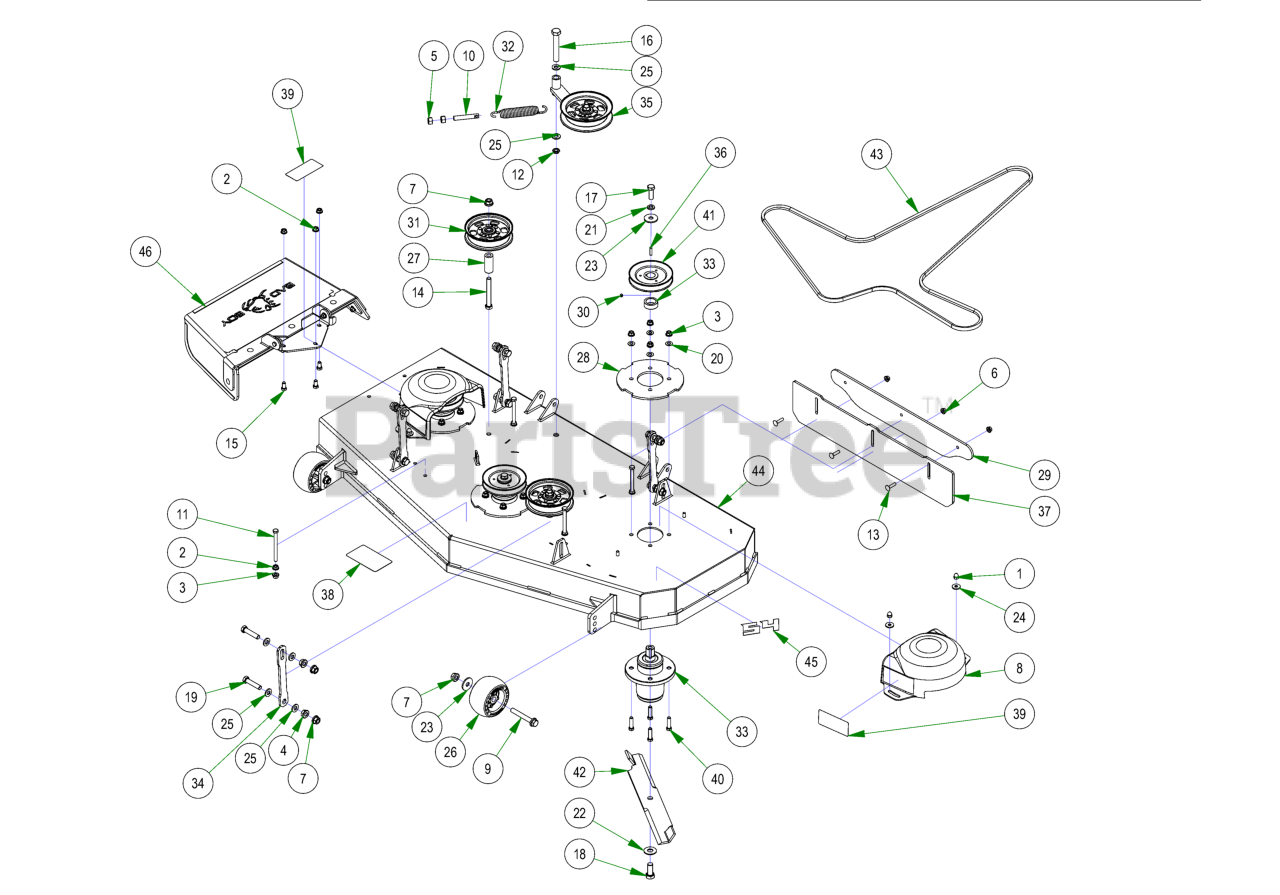

54" DECK Parts Diagram

  • Title

1

Bad Boy 013-0004-00

5/16-18 ACORN NUT HIGH-CROWN ZC

$3.49

$

In Stock, Qty 8

0

2

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

3

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

4

Bad Boy 013-5300-00

1/2-13 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 6

0

5

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

6

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

7

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

8

Bad Boy 014-4000-00

Pulley Cover

$30.99

$

In Stock, only 4 left!

0

9

Bad Boy 018-0010-00

1/2-13 X 90MM HEX FLANGE BOLT W/SHOULDER (GR.8) ZINC

$6.99

$

In Stock, Qty 20+

0

10

Bad Boy 018-2004-50

All Thread

$13.99

$

In Stock, Qty 6

0

11

Bad Boy 018-2005-00

3/8-16 X 4-1/4 HEX CAP SCREW (GR.5) ZINC

$2.99

$

Usually ships in 4-7 days

0

12

Bad Boy 018-4010-00

1/2-13 NYLON INSERT JAM LOCKNUT ZINC

$1.99

$

In Stock, Qty 11

0

13

Bad Boy 018-4703-00

5/16-18 X 1-1/4 CARRIAGE BOLT ZINC

$0.99

$

In Stock, only 3 left!

0

14

Bad Boy 018-5019-00

1/2-13 X 4 HEX CAP SCREW (GR.8) ZINC YELLOW

$4.99

$

In Stock, Qty 6

0

15

Bad Boy 018-5250-00

3/8-16 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

16

Bad Boy 018-5311-00

5/8-11 X 4 HEX CAP SCREW (GR.8) ZINC YELLOW

$4.49

$

In Stock, Qty 9

0

17

Bad Boy 018-6019-00

1/2"-20 x 1 1/2 - Grade 5 Fine Thread Bolt

$1.49

$

In Stock, Qty 20+

0

18

Bad Boy 018-6020-00

5/8-18 X 1-1/2 HEX CAP SCREW (GR.8) ZINC YELLOW

$2.99

$

In Stock, Qty 20+

0

19

Bad Boy 018-6037-00

1/2-13 X 2-1/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

Usually ships in 4-7 days

0

20

Bad Boy 019-0001-00

3/8 F/W SAE (13/16 OD) ZINC

$

$

Not available

21

Bad Boy 019-5007-00

1/2 SPLIT LOCKWASHER (GR.8) ZINC/YELLOW

$0.99

$

In Stock, Qty 20+

0

22

Bad Boy 019-5038-00

5/8 USS FLAT WASHER (1-3/4" OD) GR.8 ZINC YELLOW

$1.99

$

In Stock, Qty 20+

0

23

Bad Boy 019-6020-00

1/2 BELLEVILLE WASHER (1-5/8 OD X .140 THK) ZINC

$5.49

$

In Stock, Qty 20+

0

24

Bad Boy 019-6050-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON BLACK

$0.99

$

In Stock, Qty 6

0

25

Bad Boy 019-8054-00

.505 ID X 1.000 OD X .125 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 10

0

26

Bad Boy 022-1000-00

Deck Wheel

$18.99

$

In Stock, Qty 20+

0

27

Bad Boy 025-0032-00

2019 Revolt Stationary Idle Spacer

$8.99

$

Usually ships in 4-7 days

0

28

Bad Boy 026-0025-00

Deck Spindle Support Plate

$15.99

$

In Stock, only 2 left!

0

29

Bad Boy 026-0307-00

Striping Kit Plate

$11.99

$

Usually ships in 4-7 days

0

30

Bad Boy 030-0050-00

5/16-24 X 1/4 SOCKET SET SCREW (CUP PT) PLAIN

$1.99

$

In Stock, Qty 20+

0

31

Bad Boy 033-7201-25

5-3/4 Idler Pulley

$37.99

$

In Stock, Qty 20+

0

32

Bad Boy 034-2020-00

Deck Idler Spring

$18.99

$

In Stock, Qty 20+

0

33

Bad Boy 037-4000-00

OUTLAW SPINDLE ASSEMBLY

$332.99

$

In Stock, Qty 20+

0

34

Bad Boy 039-0226-00

23WB Deck Hanger

$

$

Not available

35

Bad Boy 039-6945-19

2019 Revolt Deck Idler Assembly

$75.99

$

Usually ships in 4-7 days

0

36

Bad Boy 042-6030-00

1/4 X 1 SQ MACHINERY KEY 1018 STL PLN

$4.99

$

In Stock, Qty 20+

0

37

Bad Boy 084-5005-00

2023 MZ Stripping Kit Rubber

$60.99

$

Usually ships in 4-7 days

0

38

Bad Boy 091-0393-00

2017 MZ Magnum 48"/42" Deck Route Decal

$12.99

$

Usually ships in 4-7 days

0

39

Bad Boy 091-3012-00

Danger Decal-Spindle/Discharge

$3.49

$

In Stock, only 3 left!

0

40

Bad Boy 018-6012-00

3/8-16 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 20+

0

41

Bad Boy 033-6006-00

5.25" Deck Spindle Pulley

$37.99

$

In Stock, Qty 14

0

42

Bad Boy 038-0001-00

54" Fusion Blade for Avenger/ZT/Mav/Outlaw/Revolt

$24.99

$

In Stock, Qty 20+

0

43

Bad Boy 041-6027-00

B128 Deck Belt

$85.99

$

In Stock, Qty 10

0

44

Bad Boy 060-2319-00

23WB 54in Deck

$

$

Not available

45

Bad Boy 091-0504-00

54" Deck Decal

$11.99

$

Usually ships in 4-7 days

0

46

Bad Boy 210-6005-98

Discharge Chute Assembly

$170.99

$

In Stock, only 3 left!

0
