RAE720CKC48300 - Exmark 48" Radius E-Series Zero-Turn Mower, Kohler ZT720 (SN: 402082300 - 404314158) (2018) Main Frame Assembly Parts Diagram

48" Radius E-Series Zero-Turn Mower, Kohler ZT720

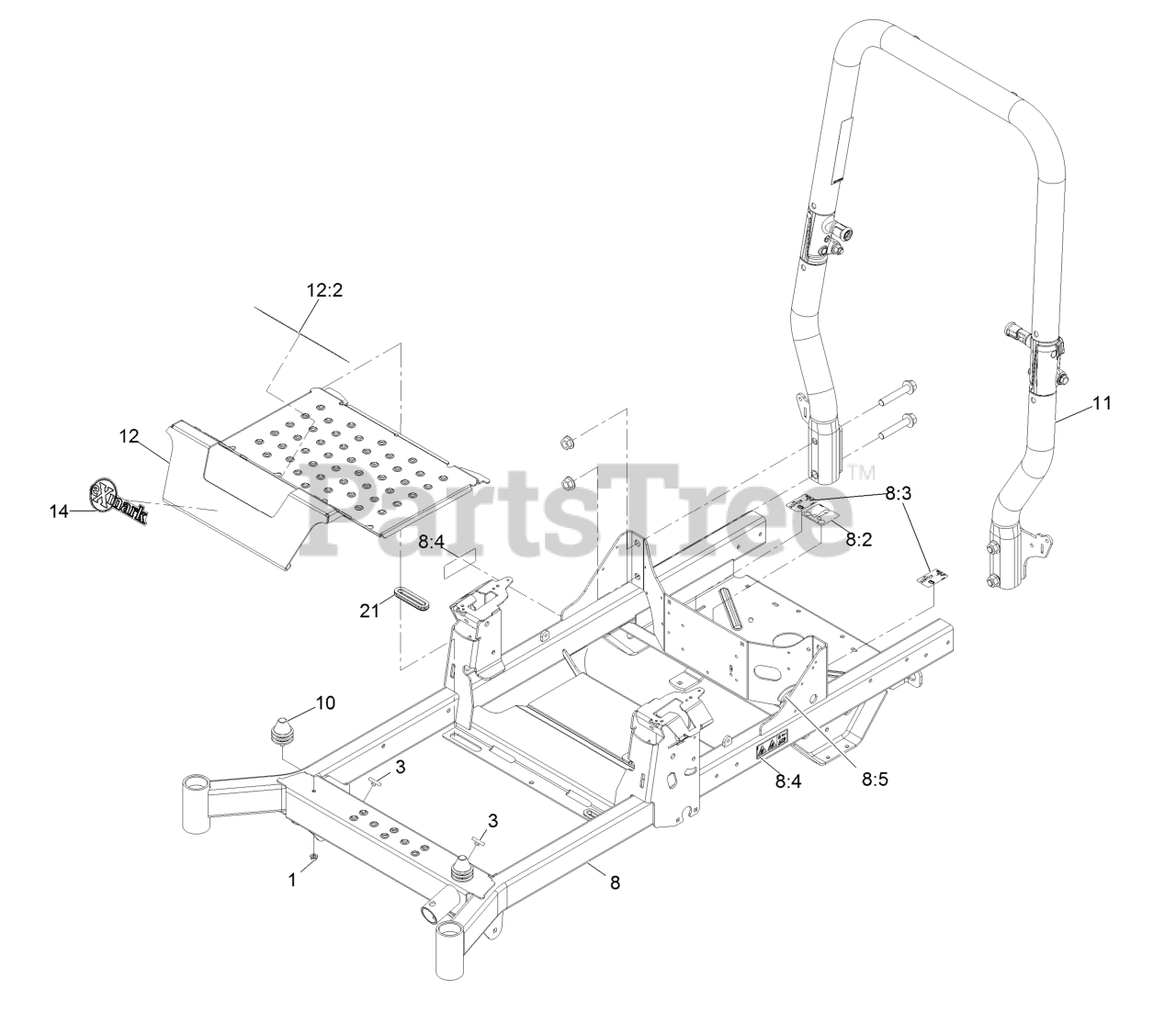

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

3

Exmark 109-9233

Bumper-Push-In, Rubber

$5.49

$

In Stock, Qty 17

0

8

Exmark 126-4699

Frame ASM

$976.99

$

Usually ships in 3-6 days

0

8:2

Exmark 109-6014

Decal-Routing, Belt

$7.49

$

In Stock, only 4 left!

0

8:3

Exmark 116-8588

Decal-Release, Drive

$2.99

$

Usually ships in 3-6 days

0

8:4

Exmark 126-4363

Decal-Warning

$17.99

$

Usually ships in 3-6 days

0

8:5

Exmark 127-6618

Strip-Seal

$5.99

$

Usually ships in 3-6 days

0

10

Exmark 126-5491

Isolator

$19.99

$

Usually ships in 3-6 days

0

11

Exmark 126-9525

ASM-ROPS Tapered

$379.99

$

Usually ships in 3-6 days

0

12

Exmark 126-5872

Pan-Floor

$187.99

$

Usually ships in 3-6 days

0

12:2

Exmark 126-8383

Decal-Danger

$8.99

$

In Stock, only 1 left!

0

14

Exmark 126-8819

Decal-Exmark Logo

$7.99

$

Usually ships in 3-6 days

0

21

Exmark 126-7065

Grommet-Rubber

$5.49

$

Usually ships in 3-6 days

0
