RAE708GEM60300 - Exmark 60" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 404314159 - 406294344) (2019) Engine Assembly Parts Diagram

60" Radius E-Series Zero-Turn Mower, Exmark 708

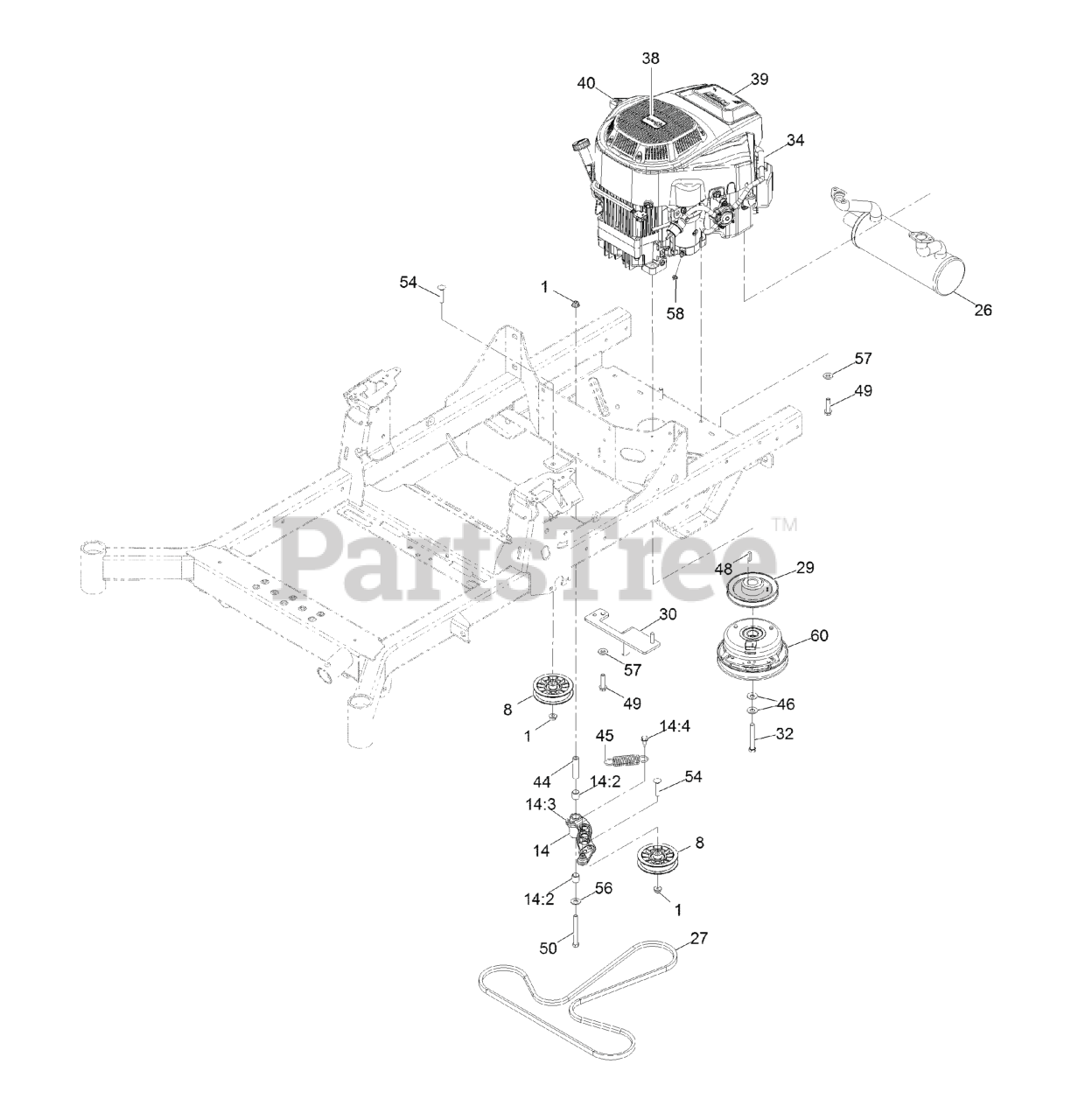

Engine Assembly Parts Diagram

  • Title
1

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 116-2456

PULLEY-FLAT IDLER

$23.99

$

In Stock, Qty 20+

0

14

Exmark 126-0973

IDLER ARM ASM

$90.99

$

In Stock, only 2 left!

0

14:2

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

14:3

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

14:4

Exmark 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

0

26

Exmark 126-5864

MUFFLER

$153.99

$

Usually ships in 3-6 days

0

27

Exmark 126-5993

BELT-V
(Superseded to 126-5993-SL)

$50.99

$

In Stock, Qty 20+

0

29

Exmark 135-0134

SHEAVE-ENGINE

$65.99

$

In Stock, only 1 left!

0

30

Exmark 126-6687-03

ANCHOR-CLUTCH

$26.99

$

Usually ships in 3-6 days

0

32

Exmark 126-7198

SCREW-HH W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$18.99

$

In Stock, only 1 left!

0

34

Exmark 136-7818

ENGINE-2P77F

$2823.99

$

Usually ships in 3-6 days

0

38

$3.49

$

In Stock, only 2 left!

0

39

Exmark 126-9111

DECAL-708CC V-TWIN ENGINE
(Superseded to 142-2629)

$5.49

$

Usually ships in 3-6 days

0

40

Exmark 131-1097

DECAL-DRAIN, OIL

$2.99

$

In Stock, Qty 15

0

44

Exmark 1-603384

BUSHING-PIVOT, IDLER

$13.99

$

In Stock, Qty 20+

0

45

Exmark 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, Qty 20+

0

46

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

$2.49

$

In Stock, Qty 20+

0

49

Exmark 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

50

Exmark 323-15

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

54

Exmark 3231-29

SCREW-CARR

$7.99

$

In Stock, only 2 left!

0

56

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

57

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

58

$0.99

$

Usually ships in 3-6 days

0

60

Exmark 126-8925

CLUTCH - 1.00 HD

$436.99

$

Usually ships in 3-6 days

0
