RAE708GEM52300 - Exmark 52" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 404314159 - 406294344) (2019) Main Frame Assembly Parts Diagram

52" Radius E-Series Zero-Turn Mower, Exmark 708

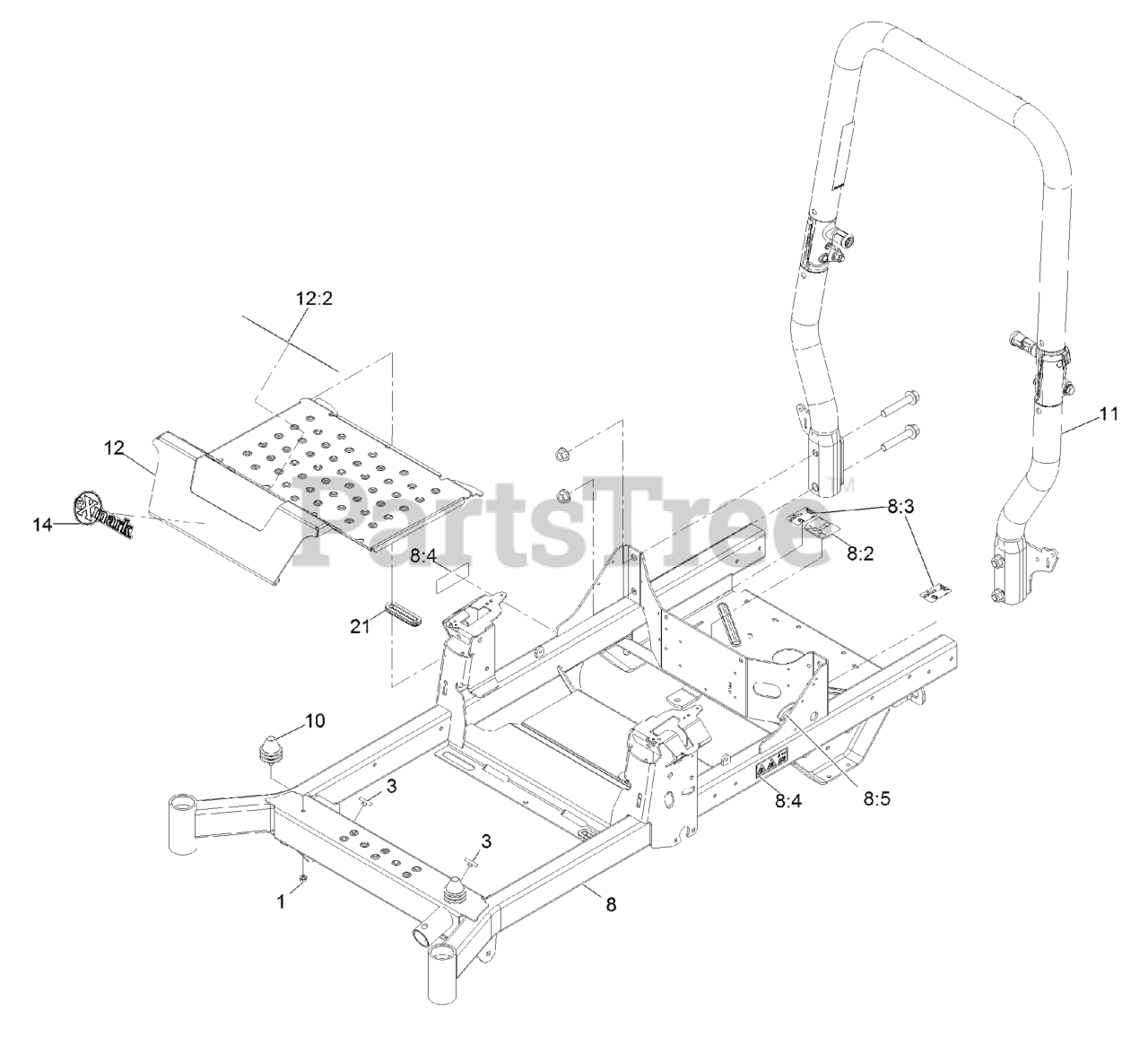

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Exmark 109-9233

BUMPER-PUSH-IN, RUBBER

$5.49

$

In Stock, Qty 17

0

8

Exmark 126-4699

FRAME ASM

$976.99

$

Usually ships in 3-6 days

0

8:2

Exmark 109-6014

DECAL-ROUTING, BELT

$7.49

$

In Stock, only 4 left!

0

8:3

Exmark 116-8588

DECAL-RELEASE, DRIVE

$2.99

$

Usually ships in 3-6 days

0

8:4

Exmark 126-4363

DECAL-WARNING

$17.99

$

Usually ships in 3-6 days

0

8:5

Exmark 127-6618

STRIP-SEAL

$5.99

$

Usually ships in 3-6 days

0

10

Exmark 126-5491

ISOLATOR

$19.99

$

Usually ships in 3-6 days

0

11

Exmark 126-9525

ASM-ROPS TAPERED

$379.99

$

Usually ships in 3-6 days

0

12

Exmark 126-5872

PAN-FLOOR

$187.99

$

Usually ships in 3-6 days

0

12:2

Exmark 126-8383

DECAL-DANGER

$8.99

$

In Stock, only 1 left!

0

14

Exmark 126-8819

DECAL-EXMARK LOGO

$7.99

$

Usually ships in 3-6 days

0

21

Exmark 126-7065

GROMMET-RUBBER

$5.49

$

Usually ships in 3-6 days

0
