RAE708GEM52300 - Exmark 52" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 402082300 - 404314158) (2018) Fuel System Assembly Parts Diagram

52" Radius E-Series Zero-Turn Mower, Exmark 708

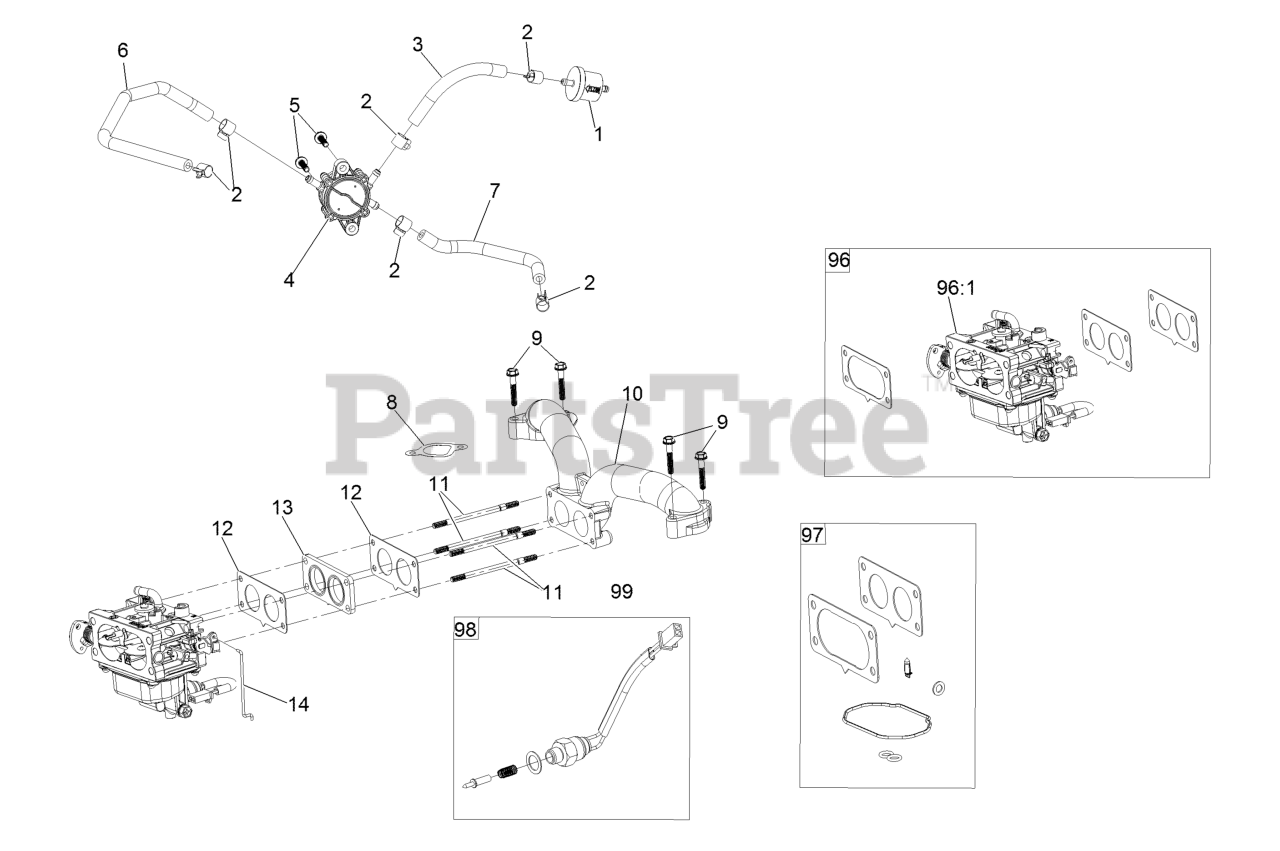

Fuel System Assembly Parts Diagram

  • Title

1

Exmark 133-1563

Filter-Fuel
(Superseded to 139-0717)

$12.99

$

In Stock, Qty 20+

0

2

Exmark 120-4251

Clamp-Fuel Line
(Superseded to 139-0719)

$5.49

$

Usually ships in 3-6 days

0

3

Exmark 120-4371

Line-Fuel

$6.49

$

Usually ships in 3-6 days

0

4

Exmark 127-9206

Pump-Fuel
(Superseded to 139-0684)

$62.99

$

In Stock, Qty 6

0

5

Exmark 120-4225

Screw-HHF

$1.99

$

In Stock, Qty 18

0

6

Exmark 127-9205

Hose-Fuel

$23.99

$

Usually ships in 3-6 days

0

7

Exmark 127-9207

Hose-Fuel

$21.99

$

In Stock, only 1 left!

0

8

Exmark 127-9230

Gasket-Intake

$2.99

$

In Stock, Qty 11

0

9

Exmark 120-4284

Screw-HHF

$1.49

$

Usually ships in 3-6 days

0

10

Exmark 127-9244

Manifold-Intake

$100.99

$

Usually ships in 3-6 days

0

11

Exmark 127-9245

Stud

$5.49

$

Usually ships in 3-6 days

0

12

Exmark 127-9246

Gasket-Carburetor

$5.49

$

In Stock, only 4 left!

0

13

Exmark 127-9247

Insulator-Carburetor

$6.49

$

Usually ships in 3-6 days

0

14

Exmark 127-9248

Linkage-Throttle

$5.49

$

Usually ships in 3-6 days

0

96

Exmark 133-9808

Carburetor Replacement Kit

$329.99

$

In Stock, only 1 left!

0

96:1

Carburetor

$

$

Not available

97

Exmark 127-9290

Carburetor Repair Kit

$37.99

$

In Stock, Qty 10

0

98

Exmark 127-9292

Solenoid Kit

$45.99

$

In Stock, only 3 left!

0

99

Exmark 133-9833

High Altitude Kit

$19.99

$

Usually ships in 3-6 days

0
