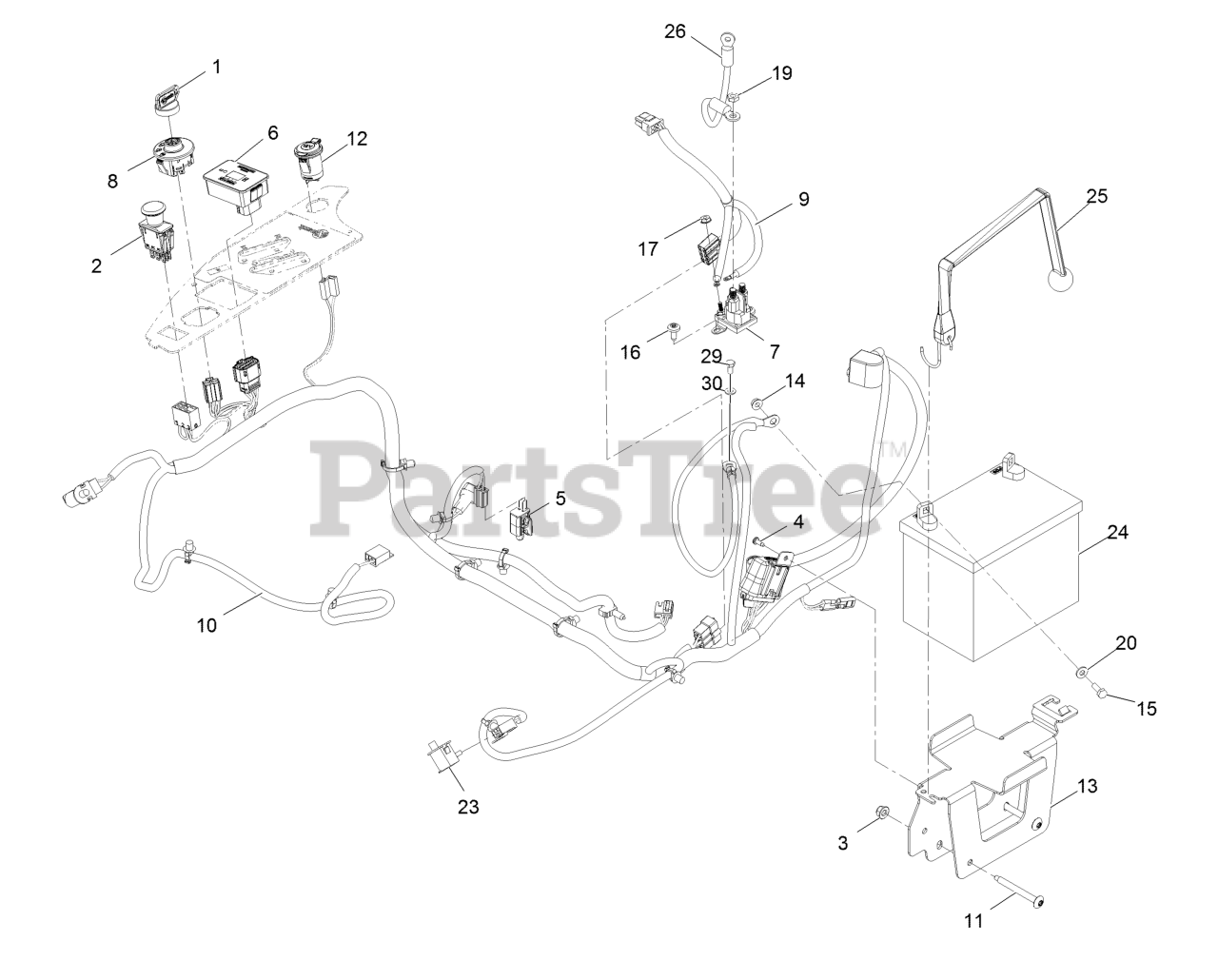

RAE708GEM52300 - Exmark 52" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 402082300 - 404314158) (2018) Electrical Assembly Parts Diagram

52" Radius E-Series Zero-Turn Mower, Exmark 708

Electrical Assembly Parts Diagram

  • Title

1

Exmark 1-603511

Key-Ignition

$2.49

$

In Stock, Qty 20+

0

1

Exmark 103-2106

Key-Exmark Logo

$5.49

$

In Stock, Qty 7

0

2

Exmark 103-5221

Switch-PTO

$55.99

$

In Stock, Qty 20+

0

3

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

4

Exmark 105-6849

Screw-Tph #10-24 X 1/2 Tf

$1.49

$

In Stock, only 3 left!

0

5

Exmark 110-6765

Switch

$13.99

$

In Stock, only 4 left!

0

6

Exmark 116-5609

Module ASM

$149.99

$

In Stock, only 1 left!

0

7

Exmark 117-1197

Solenoid

$45.99

$

In Stock, Qty 20+

0

8

Exmark 137-4100

Switch-Ignition

$37.99

$

In Stock, Qty 20+

0

9

Exmark 126-5036

Adapter-Harness, Wire

$49.99

$

Usually ships in 3-6 days

0

10

Exmark 126-5803

Harness-Wire

$441.99

$

Usually ships in 3-6 days

0

11

Exmark 126-6267

Screw-Truss HD 5/16-18 X 2 3/4 Torx Plus

$2.99

$

Usually ships in 3-6 days

0

12

Exmark 126-6499

Port-Power, 12V

$15.99

$

In Stock, only 2 left!

0

13

126-6725-

Tray-Battery

$

$

Not available

14

Exmark 32128-33

Nut-Whizlock 1/4-20

$0.99

$

In Stock, Qty 6

0

15

Exmark 321-4

Screw-HH 1/4-20 X 3/4

$1.49

$

In Stock, Qty 20+

0

16

Exmark 126-6266

Screw-1/4-20 X .65 Torx Plus

$1.49

$

In Stock, only 2 left!

0

17

Exmark 32149-8

Nut-Keps 10-32 Unf Yz

$1.49

$

Usually ships in 3-6 days

0

19

Exmark 3220-2

Nut-Jam 5/16-24

$1.49

$

In Stock, Qty 20+

0

20

Exmark 3256-22

Washer-1/4 SAE

$0.99

$

In Stock, Qty 20+

0

23

Exmark 82-2190

Switch

$14.99

$

In Stock, Qty 12

0

24

Battery (300 CCA, Wet)

$

$

Not available

25

Exmark 126-7627

Strap-Bungee

$13.99

$

In Stock, only 1 left!

0

26

Exmark 100-3540

Cable-Battery, Positive

$33.99

$

Usually ships in 3-6 days

0

29

Exmark 135-2868

Screw-HH

$1.49

$

Usually ships in 3-6 days

0

30

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0
