RAE708GEM52300 - Exmark 52" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 400000000 - 402082299) (2017) Main Frame Assembly Parts Diagram

52" Radius E-Series Zero-Turn Mower, Exmark 708

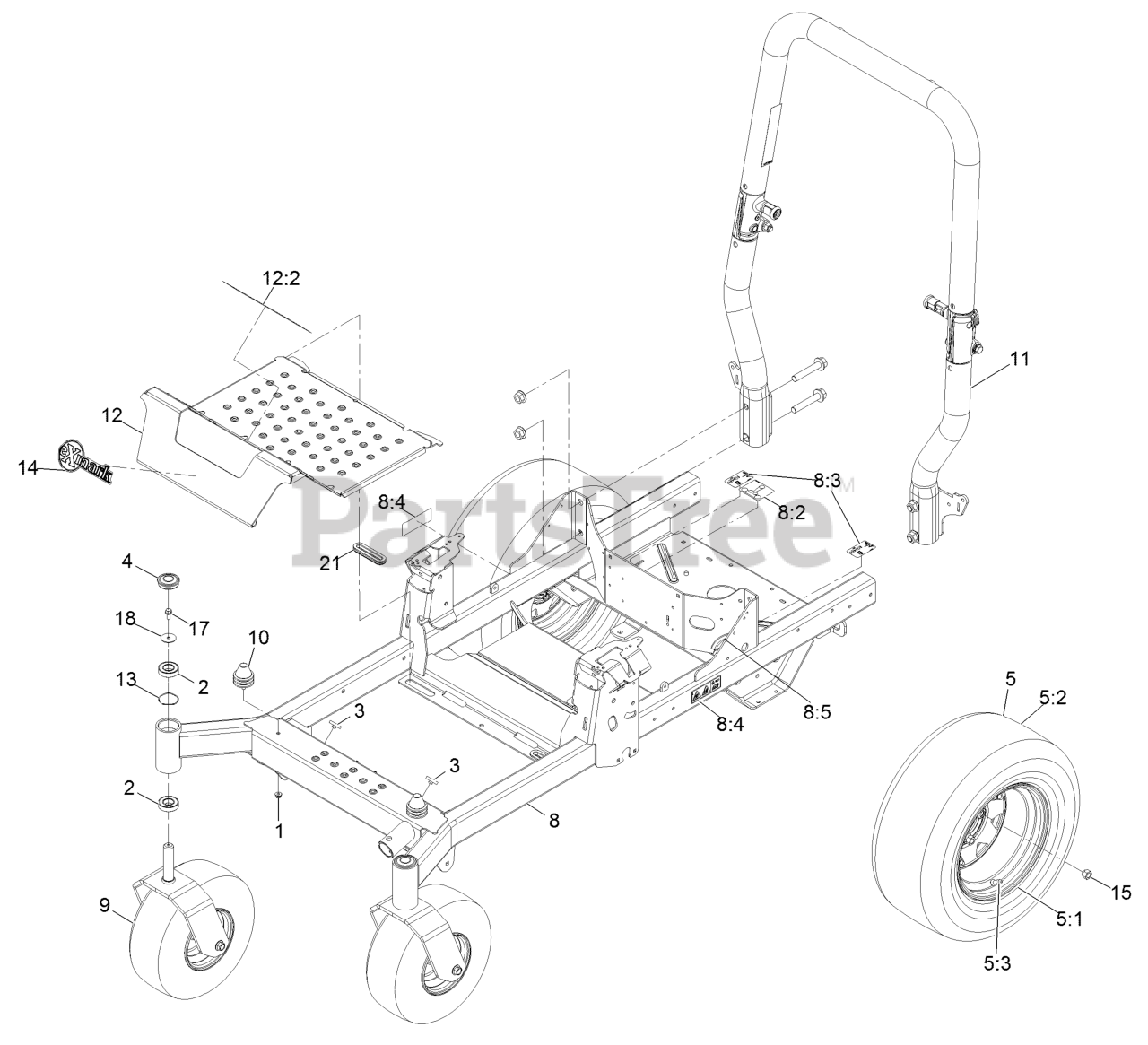

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 104-8300

Nut-Flange, NI

$1.49

$

In Stock, Qty 20+

0

2

Exmark 109-3678

Bearing-Ball

$14.99

$

In Stock, Qty 20+

0

3

Exmark 109-9233

Bumper-Push-In, Rubber

$5.49

$

In Stock, Qty 17

0

4

Exmark 116-4348

Cap-Grease

$5.49

$

In Stock, Qty 15

0

5

Exmark 116-6318

Wheel And Tire ASM

$420.99

$

Usually ships in 3-6 days

0

5:1

Exmark 116-6320

Wheel-12X7, 8 Spoke 4 On 4

$185.99

$

Usually ships in 3-6 days

0

5:2

Exmark 120-3271

Tire
(Superseded to 142-4282)

$198.99

$

Usually ships in 3-6 days

0

5:3

Exmark 232-27

Stem-Valve

$

$

Not available

8

Exmark 126-4699

Frame ASM

$976.99

$

Usually ships in 3-6 days

0

8:2

Exmark 109-6014

Decal-Belt Routing

$7.49

$

In Stock, only 4 left!

0

8:3

Exmark 116-8588

Decal-Drive Release

$2.99

$

Usually ships in 3-6 days

0

8:4

Exmark 126-4363

Decal-Warning Rotating Devices

$17.99

$

Usually ships in 3-6 days

0

8:5

Exmark 127-6618

Strip-Seal

$5.99

$

Usually ships in 3-6 days

0

9

ASM-Front Caster W/Fork

ASM-Front Caster W/Fork

$

$

Not available

10

Exmark 126-5491

Isolator

$19.99

$

Usually ships in 3-6 days

0

11

Exmark 126-9525

ASM-ROPS Tapered

$379.99

$

Usually ships in 3-6 days

0

12

Exmark 126-5872

Pan Floor

$187.99

$

Usually ships in 3-6 days

0

12:2

Exmark 126-8383

Decal-Danger

$8.99

$

In Stock, only 1 left!

0

13

Exmark 126-5897

Spring

$1.49

$

In Stock, Qty 17

0

14

Exmark 126-8819

Decal-Exmark Logo

$7.99

$

Usually ships in 3-6 days

0

15

Exmark 242-50

Nut-Lug
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

17

Exmark 3234-5

Screw-HHF

$1.49

$

Usually ships in 3-6 days

0

18

Exmark 3256-68

Washer-Flat

$2.99

$

In Stock, Qty 20+

0

21

Exmark 126-7065

Grommet-Rubber

$5.49

$

Usually ships in 3-6 days

0
