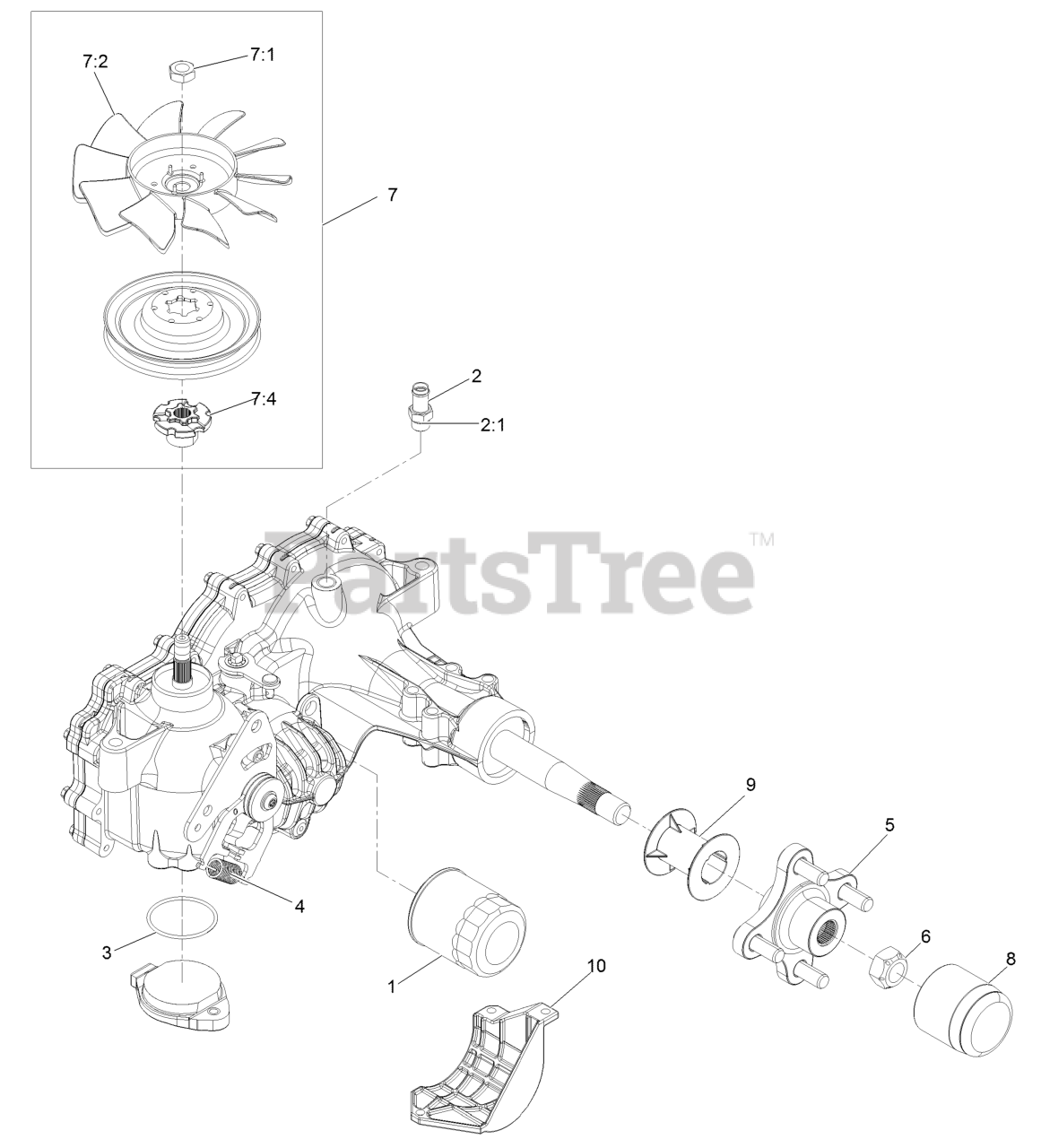

RAE708GEM52300 - Exmark 52" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 400000000 - 402082299) (2017) LH Transaxle Assembly Parts Diagram

52" Radius E-Series Zero-Turn Mower, Exmark 708

LH Transaxle Assembly Parts Diagram

  • Title

1

Exmark 109-3321

Filter-Hydraulic

$31.99

$

In Stock, only 4 left!

0

2

Exmark 109-3278

Adapter-Straight

$124.99

$

Usually ships in 3-6 days

0

2:1

Exmark 237-42

O-Ring

$2.99

$

In Stock, Qty 9

0

3

Exmark 109-3540

O-Ring-Charge Seal Cover

$6.49

$

In Stock, Qty 6

0

4

Exmark 109-5592

Spring

$17.99

$

In Stock, only 2 left!

0

5

Exmark 116-3872

Hub-Offset

$69.99

$

In Stock, only 1 left!

0

6

Exmark 109-3536

Nut-Hub

$22.99

$

Usually ships in 3-6 days

0

7

Exmark 125-0059

Fan And Pulley Kit
(Superseded to 135-7347)

$95.99

$

In Stock, only 1 left!

0

7:1

Exmark 116-9714

Nut-HJ

$5.49

$

In Stock, only 4 left!

0

7:2

Exmark 126-0226

Fan

$47.99

$

In Stock, only 3 left!

0

7:4

Exmark 116-9705

Hub-Pulley

$8.49

$

In Stock, only 1 left!

0

8

Exmark 116-6214

Cap-Long Axle

$17.99

$

In Stock, only 1 left!

0

9

Exmark 116-6213

Tube-Axle

$12.99

$

In Stock, only 1 left!

0

10

Exmark 120-7979

Guard-Filter, LH

$34.99

$

In Stock, only 1 left!

0

99

Exmark 109-3537

Seal Kit
(Superseded to 140-8351)

$90.99

$

In Stock, only 1 left!

0
