RAE708GEM52300 - Exmark 52" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 400000000 - 402082299) (2017) LH Motion Control Assembly Parts Diagram

52" Radius E-Series Zero-Turn Mower, Exmark 708

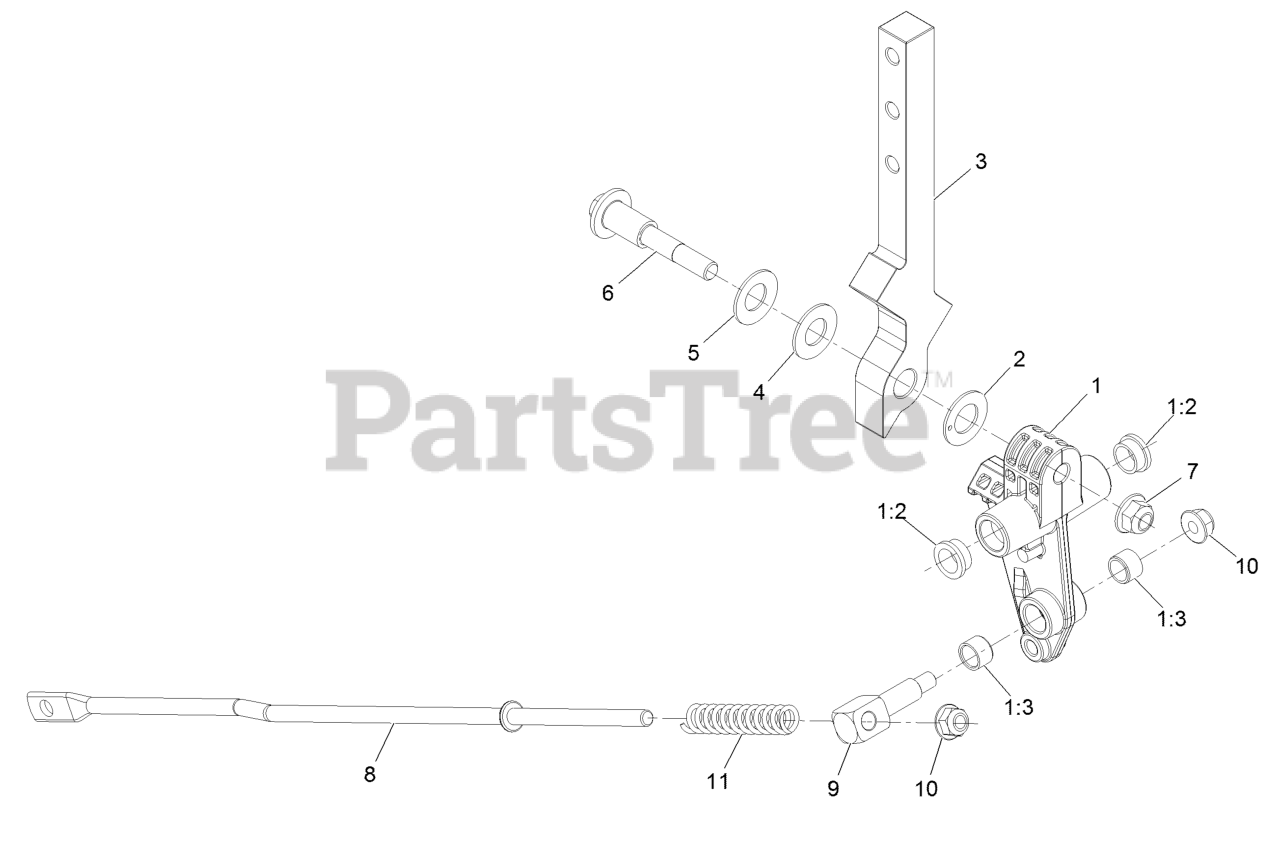

LH Motion Control Assembly Parts Diagram

  • Title

1

Exmark 126-3773

Control Arm ASM

$39.99

$

Usually ships in 3-6 days

0

1:2

Exmark 126-8909

Bushing-Pm

$2.99

$

In Stock, only 4 left!

0

1:3

Exmark 1-413152

Bushing-Sleeve

$2.99

$

In Stock, Qty 20+

0

2

Exmark 126-7296

Washer, Friction

$16.99

$

Usually ships in 3-6 days

0

3

Exmark 126-8182

Arm-Control

$76.99

$

Usually ships in 3-6 days

0

4

Exmark 117-1240

Washer

$2.99

$

In Stock, Qty 20+

0

5

Exmark 119-8925

Washer-Belleville

$1.49

$

In Stock, Qty 20+

0

6

Exmark 117-1198

Bolt-Pivot

$2.99

$

In Stock, Qty 15

0

7

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

8

Exmark 126-5435

Link-Control

$12.99

$

Usually ships in 3-6 days

0

9

Exmark 126-5434

Swivel

$6.49

$

Usually ships in 3-6 days

0

10

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

11

Exmark 126-8195

Spring-Return, Neutral

$2.99

$

In Stock, Qty 5

0
