RAE708GEM48300 - Exmark 48" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 408644346 - 411294211) (Rev A) (2021) LH Transaxle Assembly Parts Diagram

48" Radius E-Series Zero-Turn Mower, Exmark 708

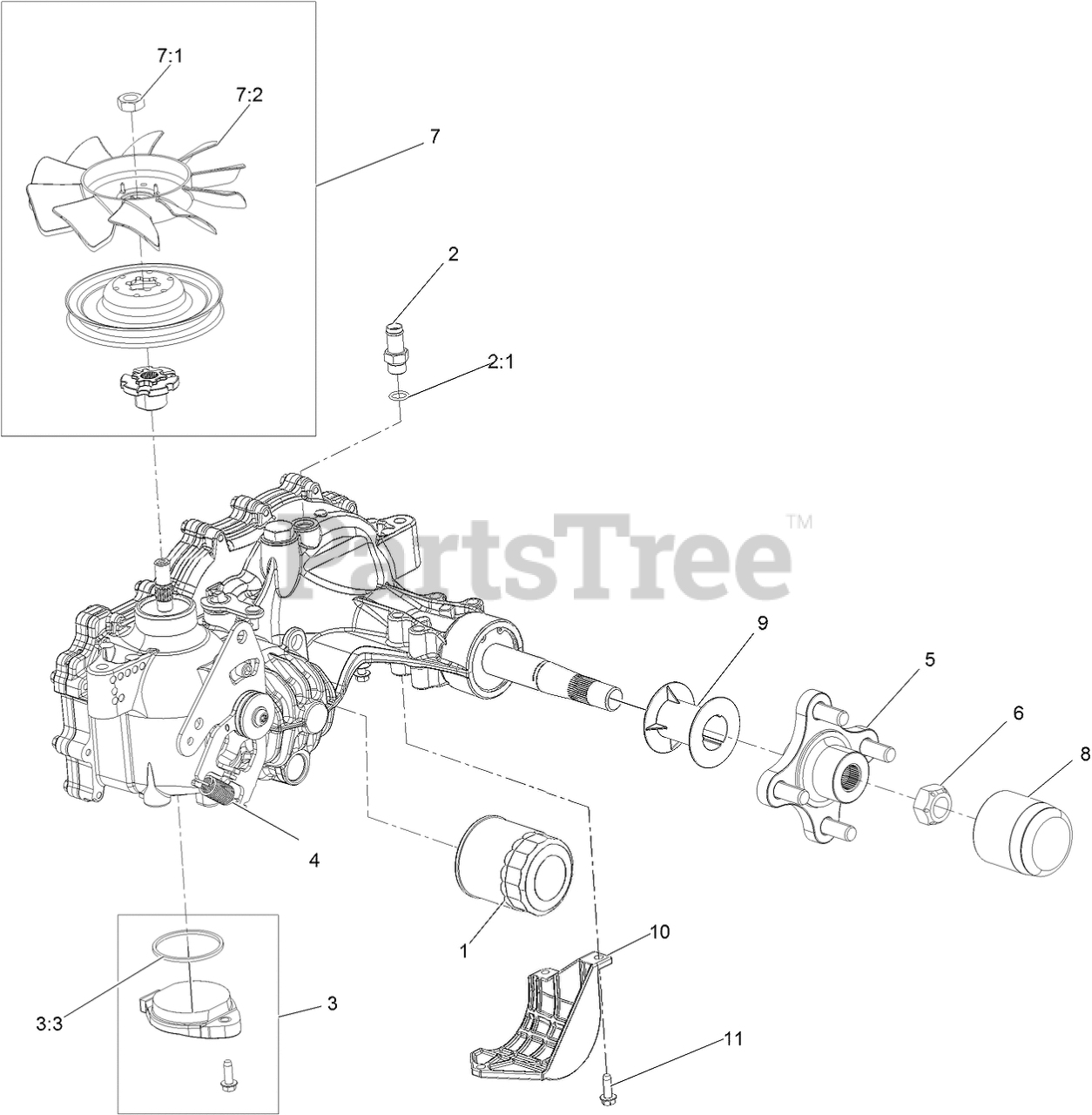

LH Transaxle Assembly Parts Diagram

  • Title

1

Exmark 109-3321

ELEMENT-OIL FILTER, HYD

$31.99

$

In Stock, only 4 left!

0

2

Exmark 109-3278

ADAPTER-STRAIGHT

$124.99

$

Usually ships in 3-6 days

0

2:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

3

Exmark 114-8465

CHARGE KIT

$110.99

$

In Stock, only 1 left!

0

3:3

Exmark 109-3540

O RING-SEAL

$6.49

$

In Stock, Qty 6

0

4

Exmark 109-5592

SPRING-EXTENSION

$17.99

$

In Stock, only 2 left!

0

5

Exmark 116-3872

HUB-OFFSET

$69.99

$

In Stock, only 1 left!

0

6

Exmark 109-3536

NUT-HUB

$22.99

$

Usually ships in 3-6 days

0

7

Exmark 135-7347

Fan And Pulley Kit

$95.99

$

In Stock, only 1 left!

0

7:1

Exmark 116-9714

NUT-HJ

$5.49

$

In Stock, only 4 left!

0

7:2

Exmark 126-0226

FAN

$47.99

$

In Stock, only 3 left!

0

8

Exmark 116-6214

CAP-AXLE, LONG

$17.99

$

In Stock, only 1 left!

0

9

Exmark 116-6213

TUBE-AXLE

$12.99

$

In Stock, only 1 left!

0

10

Exmark 120-7979

GUARD-FILTER, LH

$34.99

$

In Stock, only 1 left!

0

11

Exmark 104-2120

SCREW

$7.99

$

In Stock, only 1 left!

0

99

Exmark 135-3604

BRAKE SHAFT SEAL KIT

$167.99

$

Usually ships in 3-6 days

0

99

Exmark 109-3537

SEAL KIT
(Superseded to 140-8351)

Note: Not illustrated

$90.99

$

In Stock, Qty 6

0
