RAE708GEM48300 - Exmark 48" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 404314159 - 406294344) (2019) Deck Lift Assembly Parts Diagram

48" Radius E-Series Zero-Turn Mower, Exmark 708

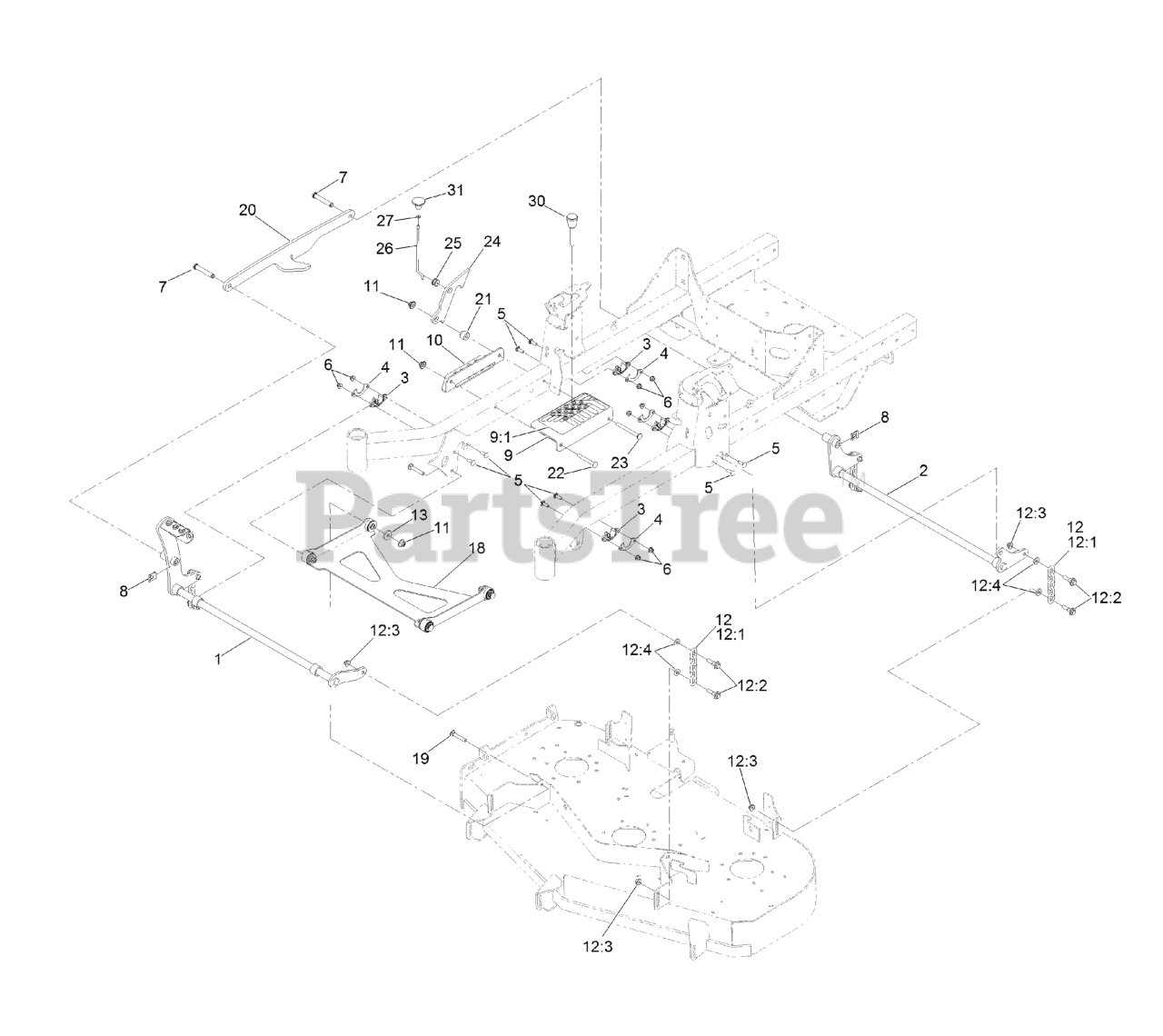

Deck Lift Assembly Parts Diagram

  • Title
1

Exmark 126-3342-03

SHAFT-LIFT, DECK

$113.99

$

Usually ships in 3-6 days

0

2

Exmark 126-3343-03

SHAFT-LIFT, DECK (REAR)

$91.99

$

Usually ships in 3-6 days

0

3

Exmark 115-5065

BUSHING-FLANGE

$7.99

$

In Stock, Qty 20+

0

4

Exmark 116-2887

GUSSET-LIFT, DECK

$5.49

$

In Stock, Qty 15

0

5

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 126-9181

PIN-CLEVIS

$8.49

$

In Stock, only 2 left!

0

8

Exmark 95-4064

CLIP-PIN
(Superseded to 138-8491)

$7.49

$

In Stock, only 2 left!

0

9

Exmark 126-4535

BRACKET ASM

$36.99

$

Usually ships in 3-6 days

0

9:1

Exmark 126-4784

DECAL-HOC

$10.99

$

Usually ships in 3-6 days

0

10

Exmark 126-4640-03

ANGLE-HOC, LOWER

$112.99

$

Usually ships in 3-6 days

0

11

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

12

Exmark 126-8877

DECK CHAIN ASM

$13.99

$

Usually ships in 3-6 days

0

12:1

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

0

12:2

Exmark 130-0742

BOLT-SHOULDER

$2.99

$

In Stock, Qty 20+

0

12:3

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12:4

$5.49

$

In Stock, Qty 20+

0

13

$3.49

$

In Stock, Qty 20+

0

18

Exmark 126-8365

DECK STRUT ASM

$146.99

$

Usually ships in 3-6 days

0

19

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$6.99

$

In Stock, Qty 11

0

20

Exmark 126-4639-03

LINK-LIFT

$69.99

$

Usually ships in 3-6 days

0

21

Exmark 126-5221

SPACER-STEPPED

$6.49

$

Usually ships in 3-6 days

0

22

Exmark 3231-42

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

23

Exmark 135-0313

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

0

24

Exmark 126-5222

PLATE-LOCK, TRANSPORT

$18.99

$

Usually ships in 3-6 days

0

25

Exmark 126-5593

GROMMET

$1.49

$

Usually ships in 3-6 days

0

26

Exmark 126-5223

ROD-LOCK, TRANSPORT

$5.49

$

Usually ships in 3-6 days

0

27

Exmark 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

30

Exmark 126-5401

PIN-HOC

$21.99

$

Usually ships in 3-6 days

0

31

$10.99

$

Usually ships in 3-6 days

0
