RAE708GEM48300 - Exmark 48" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 402082300 - 404314158) (2018) Transaxle Assembly Parts Diagram

48" Radius E-Series Zero-Turn Mower, Exmark 708

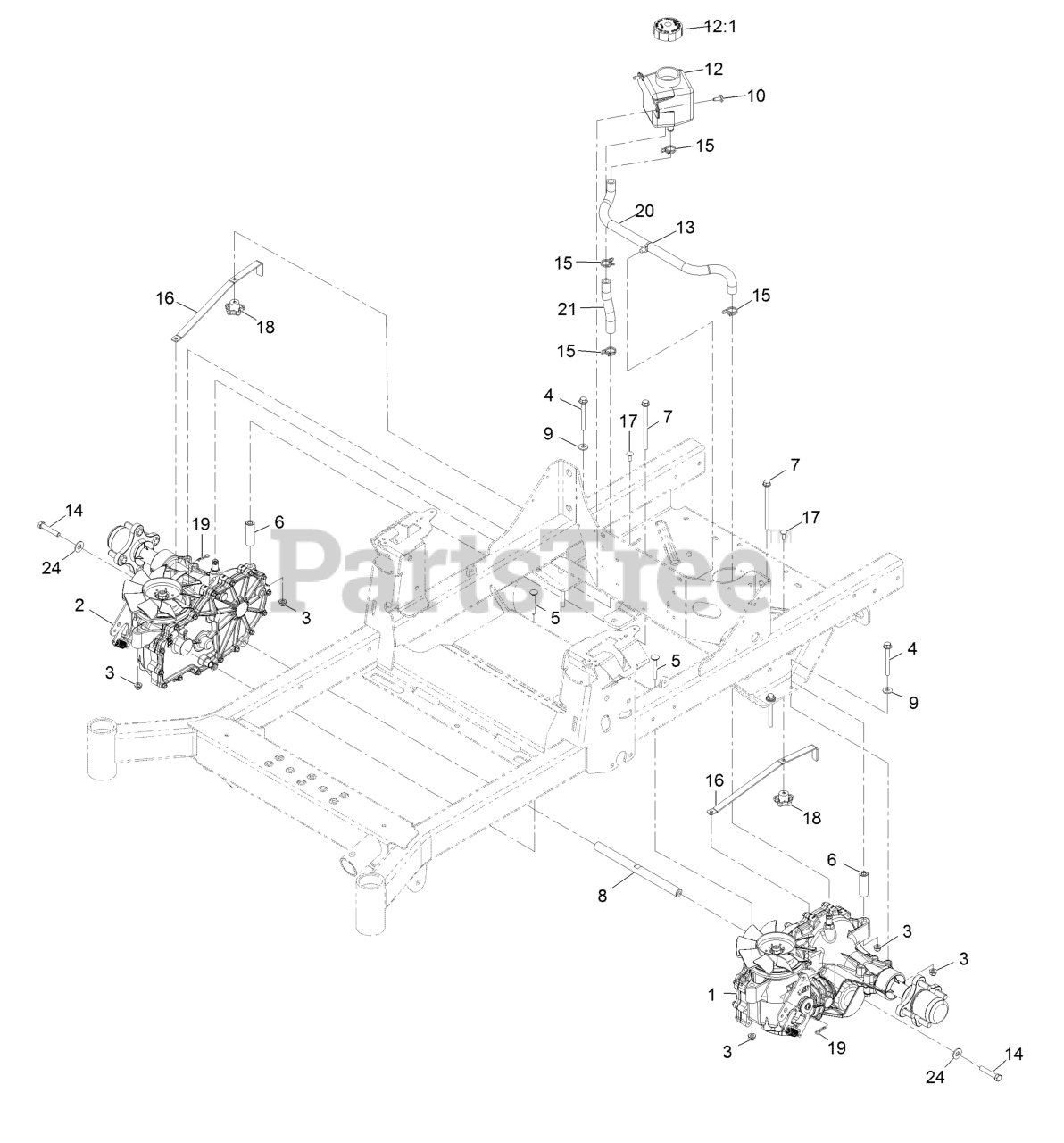

Transaxle Assembly Parts Diagram

  • Title

1

Exmark 126-4882

Transaxle ASM LH

$1638.99

$

Usually ships in 3-6 days

0

2

Exmark 126-4883

Transaxle ASM RH

$1638.99

$

Usually ships in 3-6 days

0

3

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

4

Exmark 126-4687

Screw-HHF

$1.99

$

Usually ships in 3-6 days

0

5

Exmark 3230-7

Bolt-Carriage 5/16-18 X 2 1/4

$0.99

$

In Stock, Qty 10

0

6

Exmark 116-5809

Spacer-Hydro

$6.49

$

Usually ships in 3-6 days

0

7

Exmark 126-5896

Screw HHF

$2.99

$

Usually ships in 3-6 days

0

8

Exmark 116-6833

Shaft-Spacer

$37.99

$

In Stock, only 2 left!

0

9

Exmark 1-303334

Washer-Spring Disc 5/16

$2.99

$

In Stock, only 4 left!

0

10

Exmark 126-6266

Screw-1/4-20 X .65 Torx Plus

$1.49

$

In Stock, only 2 left!

0

12

Exmark 109-2250

Tank-HYD

$63.99

$

In Stock, Qty 8

0

12:1

Exmark 109-3320

Cap-Reservoir, HYD

$27.99

$

In Stock, only 1 left!

0

13

Exmark 32180-118

Clip-Tie

$1.99

$

Usually ships in 3-6 days

0

14

Exmark 94-7972

Screw-HH W/Loctite

$5.49

$

In Stock, only 1 left!

0

15

Exmark 126-0327

Clamp-Hose

$1.49

$

Usually ships in 3-6 days

0

16

Exmark 109-5395

Arm-Bypass, Hydro

$10.99

$

Usually ships in 3-6 days

0

17

Exmark 3229-1

Bolt-Carriage 1/4-20 X 3/4

$3.99

$

In Stock, Qty 20+

0

18

Exmark 108-6402

Knob-Handle

$1.49

$

In Stock, only 3 left!

0

19

Exmark 1-806003

Hairpin-Cotter

$1.49

$

In Stock, Qty 20+

0

20

Exmark 126-5668

Hose-Hydraulic

$21.99

$

Usually ships in 3-6 days

0

21

Exmark 126-5669

Hose-Hydraulic

$8.99

$

Usually ships in 3-6 days

0

24

Exmark 3256-4

Washer-3/8 Std

$1.99

$

In Stock, Qty 20+

0
