RAE708GEM48300 - Exmark 48" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 402082300 - 404314158) (2018) Piston and Cylinder Head Assembly Parts Diagram

48" Radius E-Series Zero-Turn Mower, Exmark 708

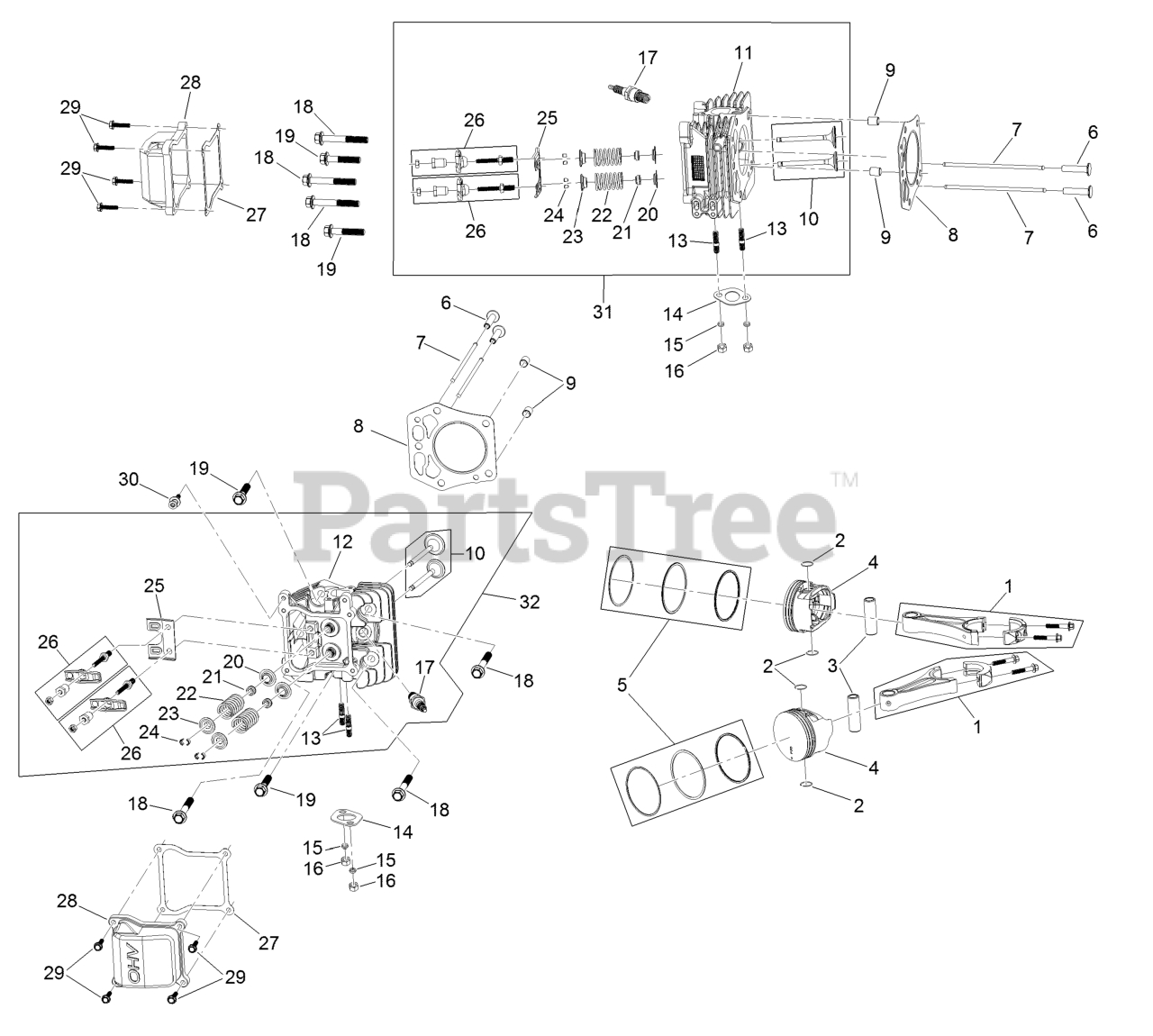

Piston and Cylinder Head Assembly Parts Diagram

  • Title
1

Exmark 127-9256

Connecting Rod ASM

$46.99

$

In Stock, only 3 left!

0

2

Exmark 127-9258

Clip-Pin, Piston

$1.49

$

In Stock, Qty 20+

0

3

Exmark 127-9257

Pin-Piston

$9.99

$

Usually ships in 3-6 days

0

4

$39.99

$

In Stock, Qty 5

0

5

Exmark 127-9260

Piston Ring Set

$20.99

$

In Stock, Qty 14

0

6

Exmark 127-9224

Lifter-Valve

$6.49

$

Usually ships in 3-6 days

0

7

Exmark 127-9225

Rod-Push

$7.99

$

In Stock, Qty 20+

0

8

Exmark 127-9226

Gasket-Head, Cylinder

$12.99

$

In Stock, Qty 20+

0

9

Exmark 127-9227

Pin-Dowel

$1.49

$

In Stock, Qty 8

0

10

Exmark 127-9228

Valve Set

$35.99

$

In Stock, only 3 left!

0

11

Exmark 133-9802

Head-Cylinder, Right

$156.99

$

Usually ships in 3-6 days

0

12

Exmark 133-9804

Head-Cylinder, Left

$156.99

$

Usually ships in 3-6 days

0

13

Exmark 121-0464

Stud-Exhaust

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 120-4317

Gasket-Exhaust

$5.49

$

In Stock, Qty 20+

0

15

Exmark 127-9279

Washer-Lock, Split

$2.99

$

Usually ships in 3-6 days

0

16

$1.49

$

Usually ships in 3-6 days

0

17

Exmark 81-3250

Spark Plug

$3.99

$

In Stock, Qty 20+

0

18

Exmark 127-9231

Screw-HWH

$3.49

$

Usually ships in 3-6 days

0

19

Exmark 127-9232

Screw-HWH

$3.49

$

Usually ships in 3-6 days

0

20

Exmark 120-4303

Seat-Spring, Valve

$7.99

$

In Stock, only 4 left!

0

21

Exmark 120-4304

Seal-Stem, Valve

$18.99

$

In Stock, Qty 8

0

22

Exmark 120-4305

Spring-Valve

$6.49

$

In Stock, only 2 left!

0

23

Exmark 120-4306

Retainer-Spring, Valve

$11.99

$

Usually ships in 3-6 days

0

24

Exmark 120-4307

Keeper-Valve

$8.49

$

Usually ships in 3-6 days

0

25

Exmark 127-9233

Plate-Guide, Push Rod

$6.49

$

In Stock, Qty 10

0

26

Exmark 127-9294

Rocker Arm ASM
(Superseded to 136-7881)

$12.99

$

In Stock, Qty 20+

0

27

Exmark 127-9295

Gasket-Valve Cover

$9.49

$

In Stock, Qty 20+

0

28

Exmark 127-9050

Cover-Valve

$39.99

$

In Stock, only 1 left!

0

29

Exmark 120-4225

Screw-HHF

$1.99

$

In Stock, Qty 18

0

30

Exmark 120-4214

Screw-Shoulder, HH

$2.99

$

Usually ships in 3-6 days

0

31

Exmark 133-9819

Right Head ASM
(Superseded to 136-7891)

$253.99

$

Usually ships in 3-6 days

0

32

Exmark 133-9820

Left Head ASM
(Superseded to 136-7892)

$253.99

$

In Stock, only 4 left!

0
