RAE708GEM48300 - Exmark 48" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 402082300 - 404314158) (2018) Ignition and Electrical Assembly Parts Diagram

48" Radius E-Series Zero-Turn Mower, Exmark 708

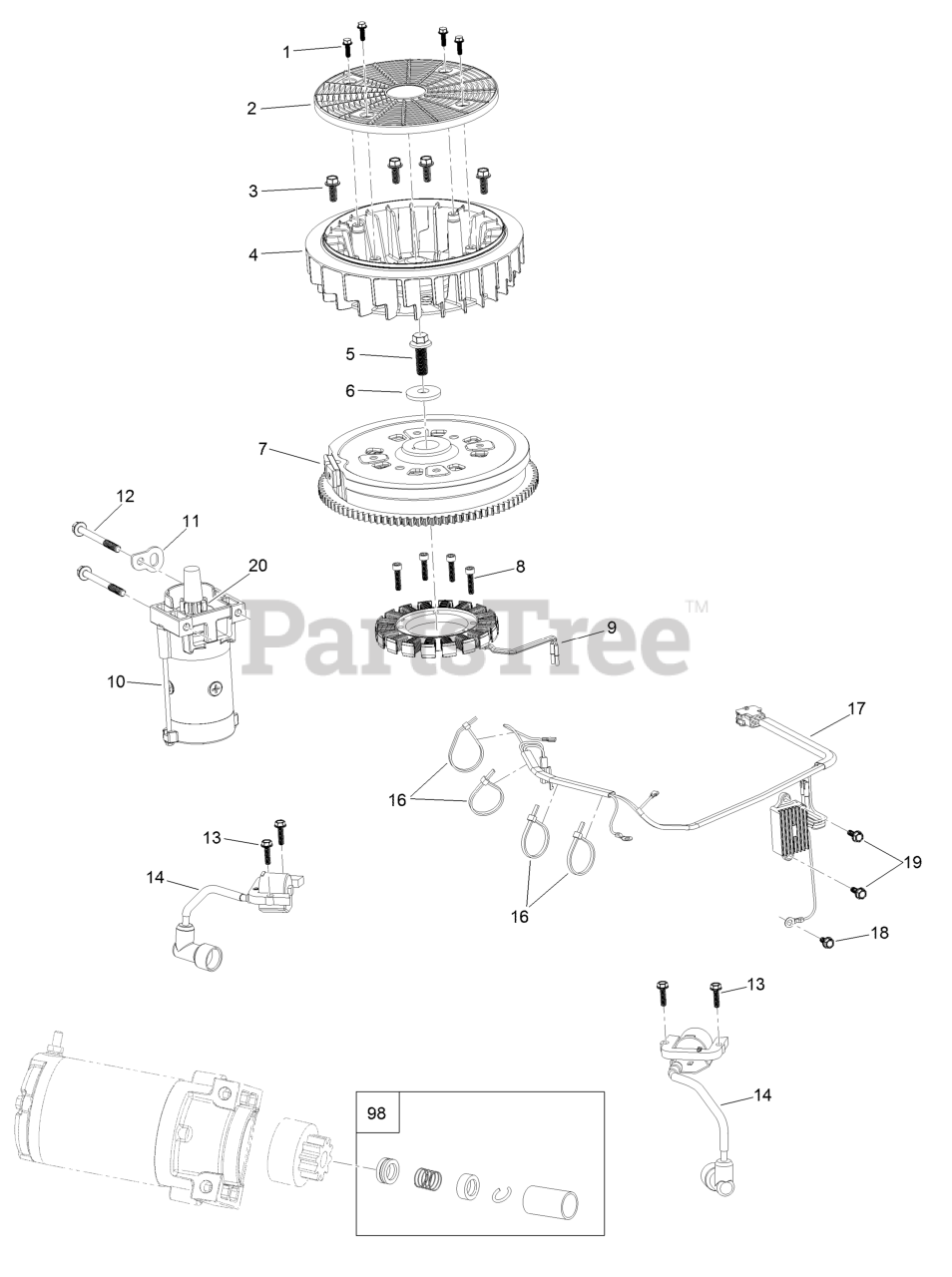

Ignition and Electrical Assembly Parts Diagram

  • Title

1

Exmark 127-9197

Screw-HWH

$1.49

$

In Stock, Qty 6

0

2

Exmark 127-9198

Screen-Rotating

$23.99

$

In Stock, only 3 left!

0

3

Exmark 127-9199

Screw-HWH

$1.49

$

Usually ships in 3-6 days

0

4

Exmark 127-9200

Fan-Cooling

$54.99

$

In Stock, only 1 left!

0

5

Exmark 127-9201

Screw-HWH

$3.49

$

Usually ships in 3-6 days

0

6

Exmark 127-9202

Washer-Flat

$1.99

$

Usually ships in 3-6 days

0

7

Exmark 127-9306

Flywheel

$229.99

$

In Stock, only 1 left!

0

8

Exmark 127-9210

Screw-HSH

$1.49

$

Usually ships in 3-6 days

0

9

Exmark 127-9211

Alternator
(Superseded to 136-7876)

$109.99

$

In Stock, only 4 left!

0

10

Exmark 133-9828

Motor-Starter
(Superseded to 136-7880)

$286.99

$

In Stock, Qty 13

0

11

Exmark 127-9208

Bracket-Lift

$2.99

$

Usually ships in 3-6 days

0

12

Exmark 120-4231

Screw-HHF

$5.49

$

Usually ships in 3-6 days

0

13

Exmark 121-0007

Bolt-Flange

$1.49

$

Usually ships in 3-6 days

0

14

Exmark 127-9216

Ignition Coil ASM
(Superseded to 139-0720)

$62.99

$

In Stock, Qty 5

0

16

Exmark 127-9220

Tie-Zip

$1.49

$

Usually ships in 3-6 days

0

17

Exmark 127-9219

Regulator-VoltageW/Harness
(Superseded to 136-7879)

$69.99

$

In Stock, only 2 left!

0

18

Exmark 120-4216

Screw-HHF

$1.49

$

Usually ships in 3-6 days

0

19

Exmark 120-4232

Screw-HHF

$1.49

$

Usually ships in 3-6 days

0

20

Exmark 133-1562

Pinion-Starter

$54.99

$

Usually ships in 3-6 days

0

98

Exmark 133-1566

Starter Repair Kit

$18.99

$

In Stock, only 1 left!

0
