RAE708GEM48300 - Exmark 48" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 402082300 - 404314158) (2018) Deck Lift Assembly Parts Diagram

48" Radius E-Series Zero-Turn Mower, Exmark 708

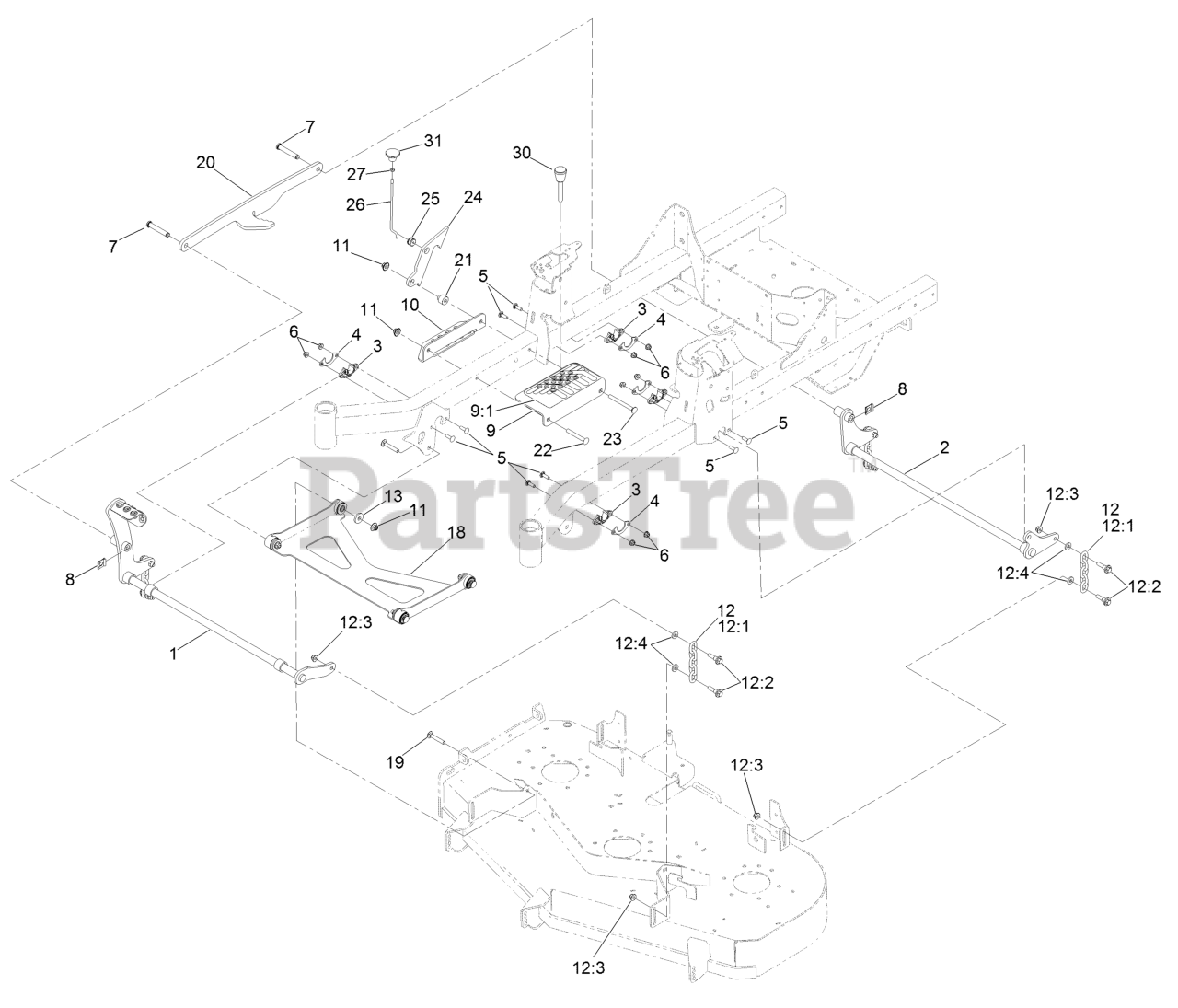

Deck Lift Assembly Parts Diagram

  • Title
1

Exmark 126-3342-03

Shaft-Lift, Deck

$107.99

$

Usually ships in 3-6 days

0

2

Exmark 126-3343-03

Shaft-Lift, Deck (Rear)

$86.99

$

Usually ships in 3-6 days

0

3

Exmark 115-5065

Bushing-Flange

$7.99

$

In Stock, Qty 13

0

4

Exmark 116-2887

Gusset-Lift, Deck

$5.49

$

In Stock, Qty 9

0

5

Exmark 3230-22

Screw-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0

6

Exmark 104-8300

Nut-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 126-9181

Pin-Clevis

$8.49

$

In Stock, only 1 left!

0

8

Exmark 95-4064

Clip-Pin
(Superseded to 138-8491)

$7.49

$

In Stock, only 1 left!

0

9

Exmark 126-4535

Bracket ASM

$35.99

$

Usually ships in 3-6 days

0

9:1

Exmark 126-4784

Decal-HOC

$9.99

$

Usually ships in 3-6 days

0

10

Exmark 126-4640-03

Angle-HOC, Lower

$109.99

$

Usually ships in 3-6 days

0

11

Exmark 109-6658

Nut-Flange, NI

$1.49

$

In Stock, only 3 left!

0

12

Exmark 126-8877

Deck Chain ASM

$13.99

$

Usually ships in 3-6 days

0

12:1

Exmark 1-633447

Chain-Lift, Deck

$10.99

$

In Stock, Qty 16

0

12:2

Exmark 130-0742

Bolt-Shoulder

$2.99

$

In Stock, Qty 5

0

12:3

Exmark 104-8301

Nut-HF, NI

$1.49

$

In Stock, Qty 20+

0

12:4

$5.49

$

In Stock, Qty 20+

0

13

$3.49

$

In Stock, Qty 20+

0

18

Exmark 126-8365

Deck Strut ASM

$136.99

$

Usually ships in 3-6 days

0

19

Exmark 3231-7

Screw-CARR

$6.99

$

In Stock, Qty 15

0

20

Exmark 126-4639-03

Link-Lift

$61.99

$

Usually ships in 3-6 days

0

21

Exmark 126-5221

Spacer-Stepped

$6.49

$

Usually ships in 3-6 days

0

22

Exmark 3231-42

Screw-CARR

$2.99

$

In Stock, Qty 20+

0

23

Exmark 135-0313

Screw-CARR

$2.99

$

Usually ships in 3-6 days

0

24

Exmark 126-5222

Plate-Lock, Transport

$18.99

$

Usually ships in 3-6 days

0

25

Exmark 126-5593

Grommet

$1.49

$

Usually ships in 3-6 days

0

26

Exmark 126-5223

Rod-Lock, Transport

$5.49

$

Usually ships in 3-6 days

0

27

Exmark 3218-1

Nut-Jam

$1.49

$

In Stock, only 4 left!

0

30

Exmark 126-5401

Pin-HOC

$20.99

$

Usually ships in 3-6 days

0

31

$10.99

$

In Stock, only 1 left!

0
