RAE708GEM48300 - Exmark 48" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 402082300 - 404314158) (2018) Deck Assembly Parts Diagram

48" Radius E-Series Zero-Turn Mower, Exmark 708

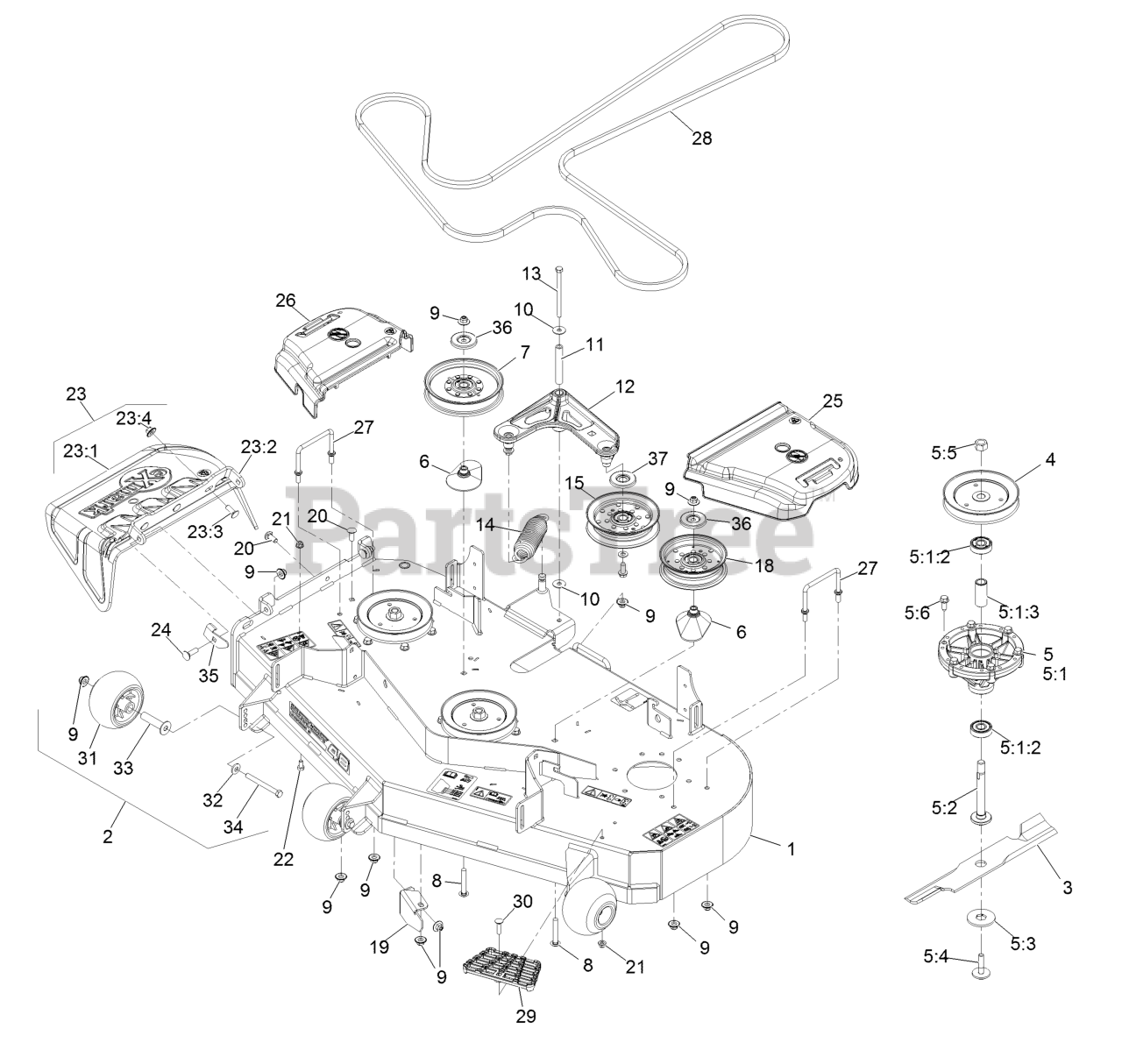

Deck Assembly Parts Diagram

  • Title

1

Exmark 126-3575

ASM-Deck W/Decals 483

$2578.99

$

Usually ships in 3-6 days

0

2

Exmark 116-9981

Kit, Anti-Scalp Roller

$53.99

$

In Stock, Qty 20+

0

3

Exmark 103-6391

Blade, Mulching
(Superseded to 103-6391-S)

$31.99

$

In Stock, Qty 20+

0

3

Exmark 103-6386

Blade, Low Lift
(Superseded to 103-6386-S)

$30.99

$

In Stock, Qty 20+

0

3

Exmark 103-6381

Blade, Solid
(Superseded to 103-6381-S)

$34.99

$

In Stock, Qty 20+

0

3

Exmark 103-6401

Blade-Notched
(Superseded to 103-6401-S)

$30.99

$

In Stock, Qty 15

0

3

Exmark 116-5177

Blade-Extreme 2, 16.25"
(Superseded to 116-5177-S)

$31.99

$

In Stock, Qty 20+

0

4

Exmark 116-5043

Sheave,Blade Drive 5.90

$60.99

$

In Stock, only 1 left!

0

5

Exmark 126-4630

ASM, Cutter Housing Complete

$160.99

$

In Stock, only 2 left!

0

5:1

Exmark 126-4627

ASM-Cutter Housing

$123.99

$

In Stock, only 1 left!

0

5:1:2

Exmark 116-4004

Bearing

$19.99

$

In Stock, only 3 left!

0

5:1:3

Exmark 116-4876

Spacer-Bearing

$7.99

$

In Stock, only 2 left!

0

5:2

Exmark 109-7431

Spindle-Hex Pilot

$37.99

$

In Stock, Qty 5

0

5:3

Exmark 126-4530

Washer-Hex Blade Drive

$5.49

$

In Stock, Qty 20+

0

5:4

Exmark 116-0005

Bolt-Blade, Sem

$7.99

$

In Stock, Qty 20+

0

5:5

Exmark 3219-6

Nut-Hex 5/8-18

$3.99

$

In Stock, Qty 20+

0

5:6

Exmark 126-1696

Screw-Forming, Thread

$1.49

$

In Stock, Qty 5

0

6

Exmark 109-2872

Spacer-Pulley

$22.99

$

Usually ships in 3-6 days

0

7

Exmark 126-9189

Idler-Pulley, Flat 6.00X1.00

$61.99

$

In Stock, Qty 11

0

8

Exmark 3231-44

Bolt-Carriage 3/8-16 X 2 1/2

$2.99

$

In Stock, Qty 18

0

9

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, only 4 left!

0

10

Exmark 52-2860

Washer

$1.49

$

In Stock, Qty 15

0

11

Exmark 116-5111

Bushing

$33.99

$

In Stock, only 1 left!

0

12

Exmark 126-0976

Idler Arm ASM

$106.99

$

In Stock, Qty 11

0

13

Exmark 323-38

Screw-HH 3/8-16 X 4 3/4

$11.99

$

In Stock, only 1 left!

0

14

Exmark 116-6317

Spring-Extension

$27.99

$

In Stock, Qty 12

0

15

Exmark 126-9196

Idler-Pulley, Flat

$63.99

$

In Stock, Qty 9

0

18

Exmark 126-9197

Idler-Pulley, Flat 5.00X1.31

$63.99

$

In Stock, only 2 left!

0

19

Exmark 116-0680-01

Baffle,Discharge 483

$28.99

$

Usually ships in 3-6 days

0

20

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

21

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

22

Exmark 322-2

Screw-HH 5/16-18 X 5/8

$2.49

$

In Stock, Qty 13

0

23

Exmark 109-7188

ASM,Discharge Chute

$104.99

$

In Stock, only 2 left!

0

23:1

Exmark 109-2738

Chute, Discharge

$74.99

$

In Stock, Qty 7

0

23:2

Exmark 109-8675-01

Bracket,Discharge Chute

$51.99

$

In Stock, only 1 left!

0

23:3

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

23:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, only 4 left!

0

24

Exmark 3231-25

Bolt-Carriage 3/8-16 X 1 1/4
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

25

Exmark 109-6936

Cover-Belt, LH

$37.99

$

In Stock, only 1 left!

0

26

Exmark 109-6935

Cover-Belt, RH

$37.99

$

In Stock, only 1 left!

0

27

Exmark 109-6982

Wireform-Cover

$11.99

$

In Stock, only 4 left!

0

28

Exmark 126-6626

Belt-V
(Superseded to 126-6626-SL)

$161.99

$

In Stock, only 1 left!

0

29

Exmark 126-4781-03

Step-Deck

$26.99

$

Usually ships in 3-6 days

0

30

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

31

Exmark 103-8415

Roller-Anti-Scalp

$26.99

$

In Stock, Qty 12

0

32

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

33

Exmark 116-8131

Axle, Roller

$12.99

$

In Stock, Qty 5

0

34

Exmark 116-9362

Screw-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 20+

0

35

Exmark 135-0064

Stop-Discharge Chute

$9.99

$

Usually ships in 3-6 days

0

36

Exmark 126-8043

Shield-Dust

$2.99

$

In Stock, only 4 left!

0

37

Exmark 126-9195

Shield-Guard, Dust

$2.99

$

In Stock, only 3 left!

0
